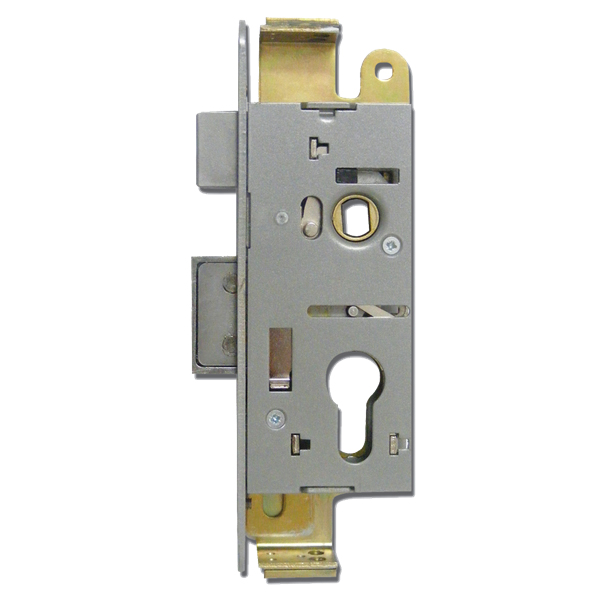

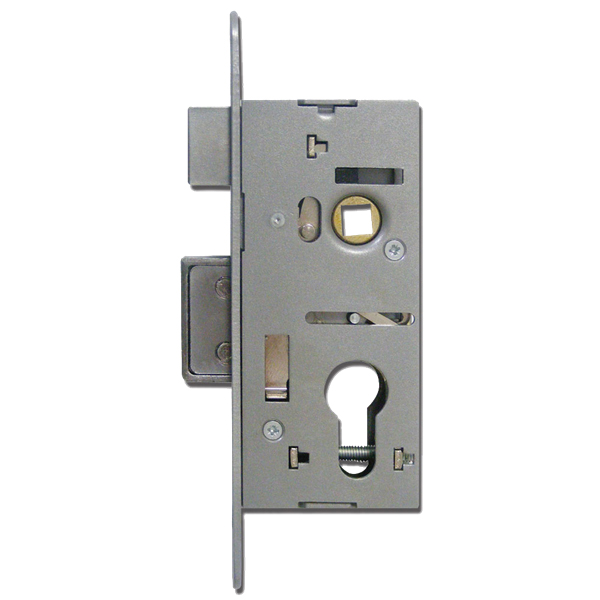

Yale L22070 and L22172 Euro cylinder sashcase
In stock
Overview
Yale L22070 and L22172 Euro cylinder mortice sashcase with a narrow case size of 54 mm and Satin Chrome forend
Yale L22070 and L22172 Euro cylinder sashcase
Mechanism: Euro Cylinder
Case size: 54mm
Follower: 8mm
Case finish: Silver
Forend finish: Satin chrome
Features
Double throw deadbolt. 1st throw=12mm 2nd throw=12mm. Suitable for metal doors. Supplied without faceplate or striking plate.
Operation
Deadbolt is locked or unlocked by key from either side. Reversible latchbolt withdrawn by lever handle from either side
Size
Case Depth (A) | Backset (B) | Case Height (C) | Centres (D) | Forend Length (E) | Forend Width (F) | |
| L22070 | 54 | 36 | 115 | 48 | 166 | 25 |
| L22172 | 56 | 36 | 116 | 48 | 166 | 20 |
