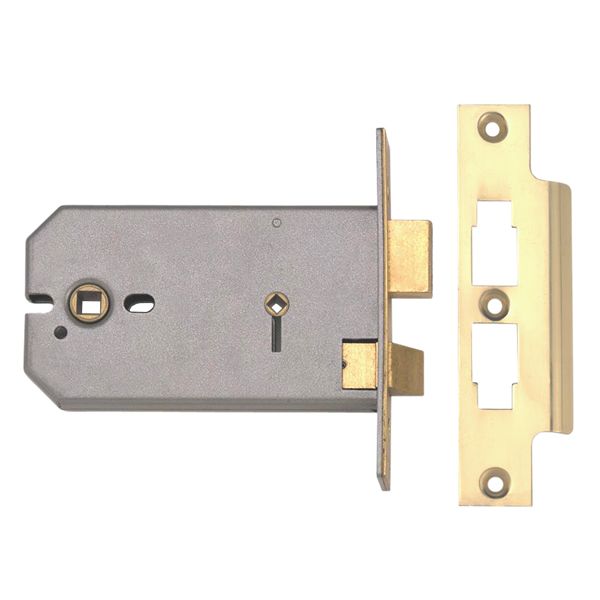

Union 2026 Horizontal Bathroom Mortice Lock
In stock
Overview
Horizontal bathroom mortice lock with spindles for turn and latch horizontal to each other, the Union 2026 is ideal for old style doors with large ornate door frames.
Union 2026 Horizontal Bathroom Mortice Lock, for timber doors hinged on the left or right and requiring turn and emergency release functions
Mortice Bathroom lock in horizontal format, i.e. turn and knobs are in horizontal line with each other. Horizontal locks are often found on old style doors, these were introduced to move door knobs away from edge of door to prevent door knob from catching on door frame whilst opening or closing a door.
Case size: 127 and 152mm
Follower: 8mm (latch) 5mm (dead)
Case finish: Enamelled Silver
Forend finish: Brass and Satin chrome
Features
Pierced to accept bolt through furniture
Operation
Deadbolt is locked or unlocked by turn from the inside. Reversible latchbolt withdrawn by lever handle from either side
Size

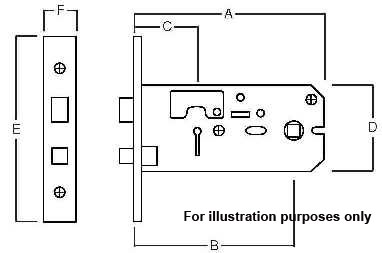

Case Depth (A) | Backset Follower (B) | Backset Turn (C) | Case Height (D | Forend Length (E) | Forend Width (F) | |
| 127mm | 127 | 101 | 38 | 70 | 121 | 25 |
| 152mm | 152 | 127 | 51 | 70 | 121 | 25 |
