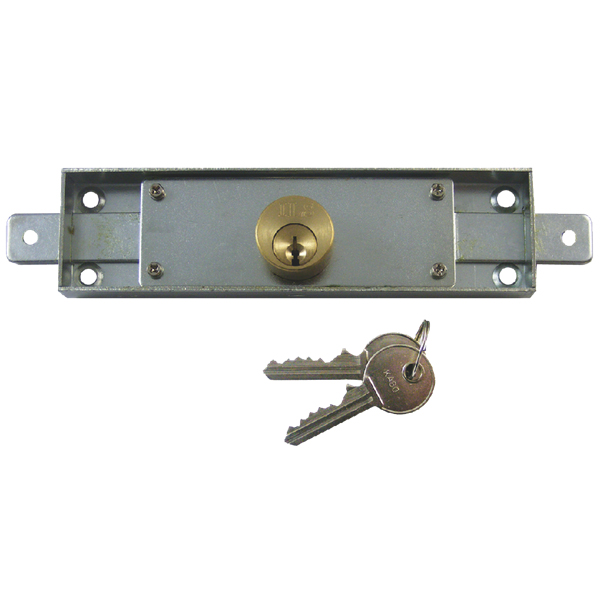

Tessi 6430 Narrow Central Shutter Door Lock

Tessi 6430 Narrow Central Shutter Door Lock

Narrow shutter door lock, made by Tessi, for use when space is limited on the back of shutter doors. With a case size of just 152mm x 42mm x 15mm. When operated by keys from either side bolts extend from each side of lock case by 19mm, these are then attached to the locking mechanism of the roller shutter door to lock in closed position.

Case Size: 156 x 42 x 15mm

Cylinder Projection: 15mm

Cylinder Finish: Brass

Bolt Projection: 23mm Unlocked and 42mm Locked

Keys Supplied: 2

Handing: Central Bolt Shoots out from both sides

Operation

Deadbolt is locked or unlocked by key from either side
