Paxton Proximity Readers for Switch 2 and Net2
Overview
Paxton Proximity readers for Net2 and Switch2 systems

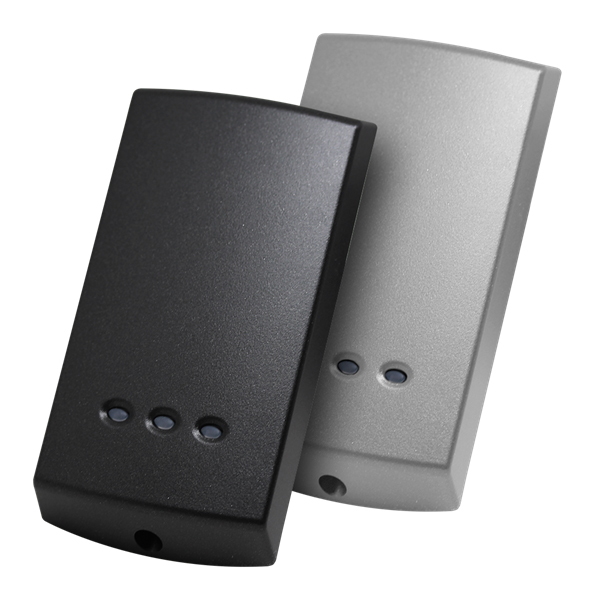

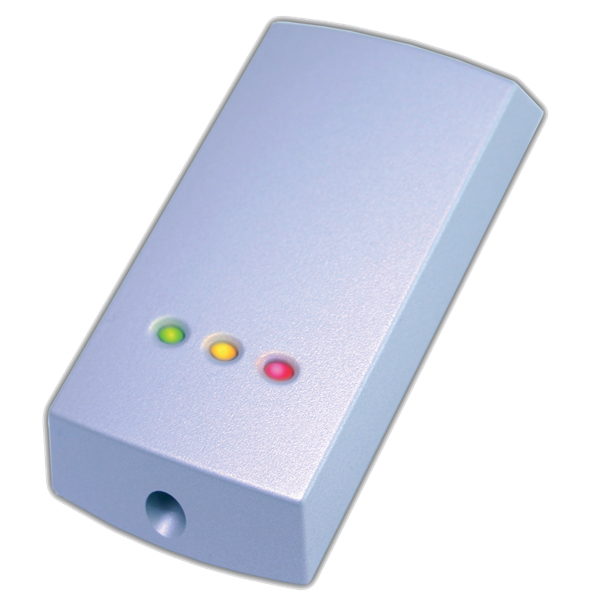

Paxton Proximity readers for Switch2 and Net2 access control systems, each reader is supplied with both black and white fascias.
333-110 - P38 - 38mm - Pre-Wired
353-110 - P50 - 50mm - Pre-Wired
373-110 - P75 - 75mm - Pre-Wired

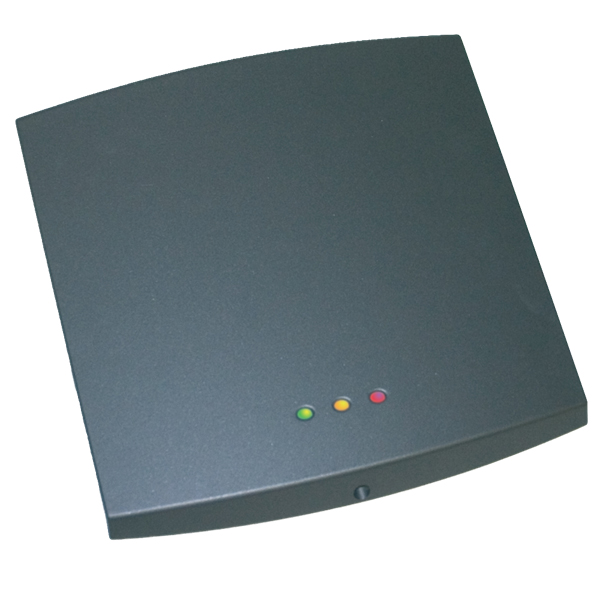

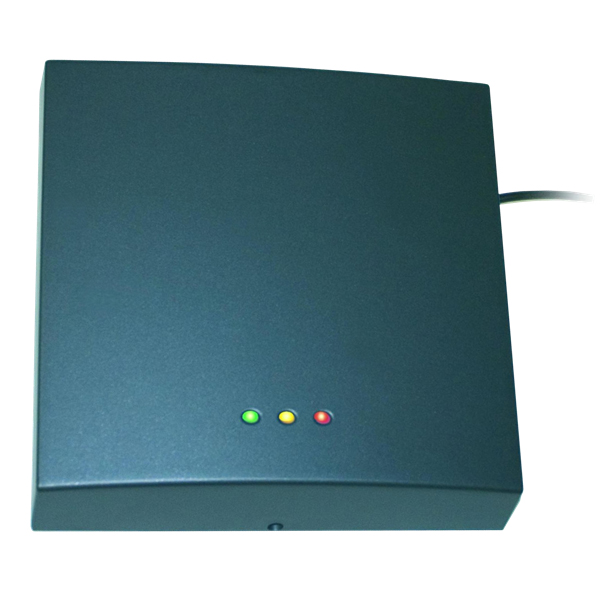

323-110 - P200 - 200mm Plastic Mount
324-110 - P200 - 200mm Metal Mount
- Use with Switch2 or Net2
- Simple mounting
- Read range up to 100mm with Proximity cards
- Supplied with a choice of black or white fascias
- Low profile - less than 16mm deep

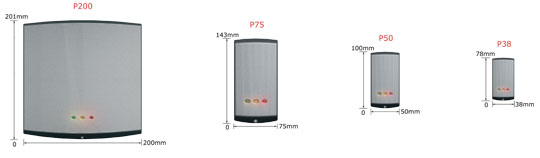

- 4 sizes
| Specifications - Proximity reader - P38 |
| | min | typ | max | units |
|
| Operating voltage | 10 | 12 | 14 | V DC |
| Current consumption | 60 | | 120 | mA |
| Carrier frequency | | 125 | | kHz |
| Clock & data bit period | | 600 | | µs |
|
| Cable type for extensions | | Belden 9540 | | |
| Max cable extension length | | | 100 | m |
| Read range: Keyfob | | | 40 | mm |
| Read range: Token/ISO card | | | 60 | mm |
| Read range: Watchprox | | | 30 | mm |
| Read range: Hands free tokens | | | 850 | mm |
| Additional coloured covers available | | Yes | | |
| Net2Air compatible | | Yes | | |
|
| Operating temperature | -35 | | 66 | °C |
| Moisture resistance | | IPX7 | | |
| Vandal resistance | | Medium | | |
|
| Cable length | | 5 | | m |
| Width | | 38 | | mm |
| Height | | 78 | | mm |
| Depth | | 12.5 | | mm |
| Specifications - Proximity reader - P50 | | | min | typ | max | units | |
| Operating voltage | 10 | 12 | 14 | V DC | | Current consumption | 60 | | 120 | mA | | Carrier frequency | | 125 | | kHz | | Clock & data bit period | | 600 | | µs | |
| Cable type for extensions | | Belden 9540 | | | | Max cable extension length | | | 100 | m | | Read range: Keyfob | | | 50 | mm | | Read range: Token/ISO card | | | 80 | mm | | Read range: Watchprox | | | 35 | mm | | Read range: Hands free tokens | | | 1100 | mm | | Additional coloured covers available | | Yes | | | | Net2Air compatible | | Yes | | | |
| Operating temperature | -35 | | 66 | °C | | Moisture resistance | | IPX7 | | | | Vandal resistance | | Medium | | | |
| Cable length | | 5 | | m | | Width | | 50 | | mm | | Height | | 100 | | mm | | Depth | | 15 | | mm | | Specifications - Proximity reader - P75 | | | min | typ | max | units | |
| Operating voltage | 10 | 12 | 14 | V DC | | Current consumption | 60 | | 120 | mA | | Carrier frequency | | 125 | | kHz | | Clock & data bit period | | 600 | | µs | |
| Cable type for extensions | | Belden 9540 | | | | Max cable extension length | | | 100 | m | | Read range: Keyfob | | | 60 | mm | | Read range: Token/ISO card | | | 100 | mm | | Read range: Watchprox | | | 40 | mm | | Read range: Hands free tokens | | | 1500 | mm | | Additional coloured covers available | | Yes | | | | Net2Air compatible | | Yes | | | |
| Operating temperature | -35 | | 66 | °C | | Moisture resistance | | IPX7 | | | | Vandal resistance | | Medium | | | |

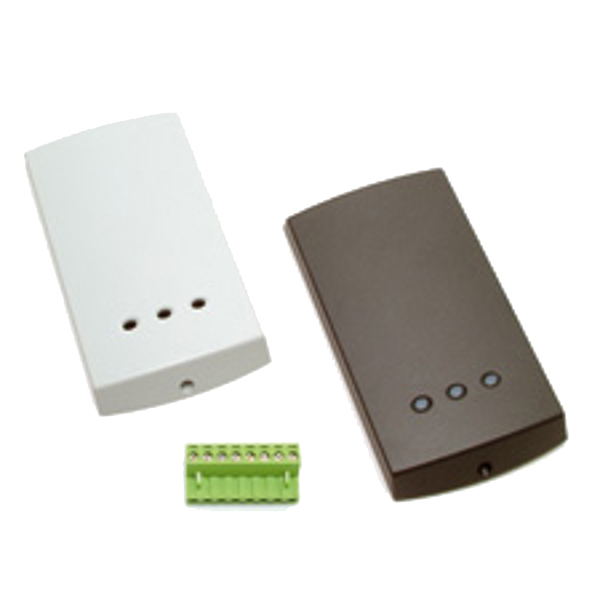

| Cable length | | 5 | | m | | Width | | 75 | | mm | | Height | | 143 | | mm | | Depth | | 16 | | mm | | Specifications - Proximity reader - P75, Screw connector | | | min | typ | max | units | |
| Operating voltage | 10 | 12 | 14 | V DC | | Current consumption | 60 | | 120 | mA | | Carrier frequency | | 125 | | kHz | | Clock & data bit period | | 600 | | µs | |
| Cable type for extensions | | Belden 9540 | | | | Max cable extension length | | | 100 | m | | Read range: Keyfob | | 60 | | mm | | Read range: Token/ISO card | | 100 | | mm | | Read range: Watchprox | | 40 | | mm | | Read range: Hands free tokens | | 1500 | | mm | | Additional coloured covers available | | Yes | | | | Net2Air compatible | | Yes | | | |
|
|
|
