Paxton 682 Net2 Control Unit range with optional housing and power options. A networked access control system that allows for central administration of user access and easy event reporting. Each control unit is connected via a Network cable and communicates via TCP/IP protocol with central PC running Paxton Access Control Software, Controllers can also be daisy chained using RS485 cable. Paxton 682 controllers are supplied with housing and power options.
User rights are changed at the PC, then immediately passed to other controllers.

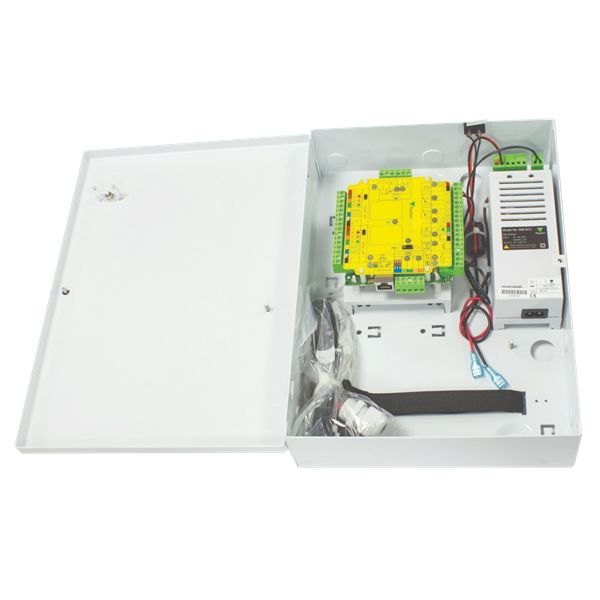

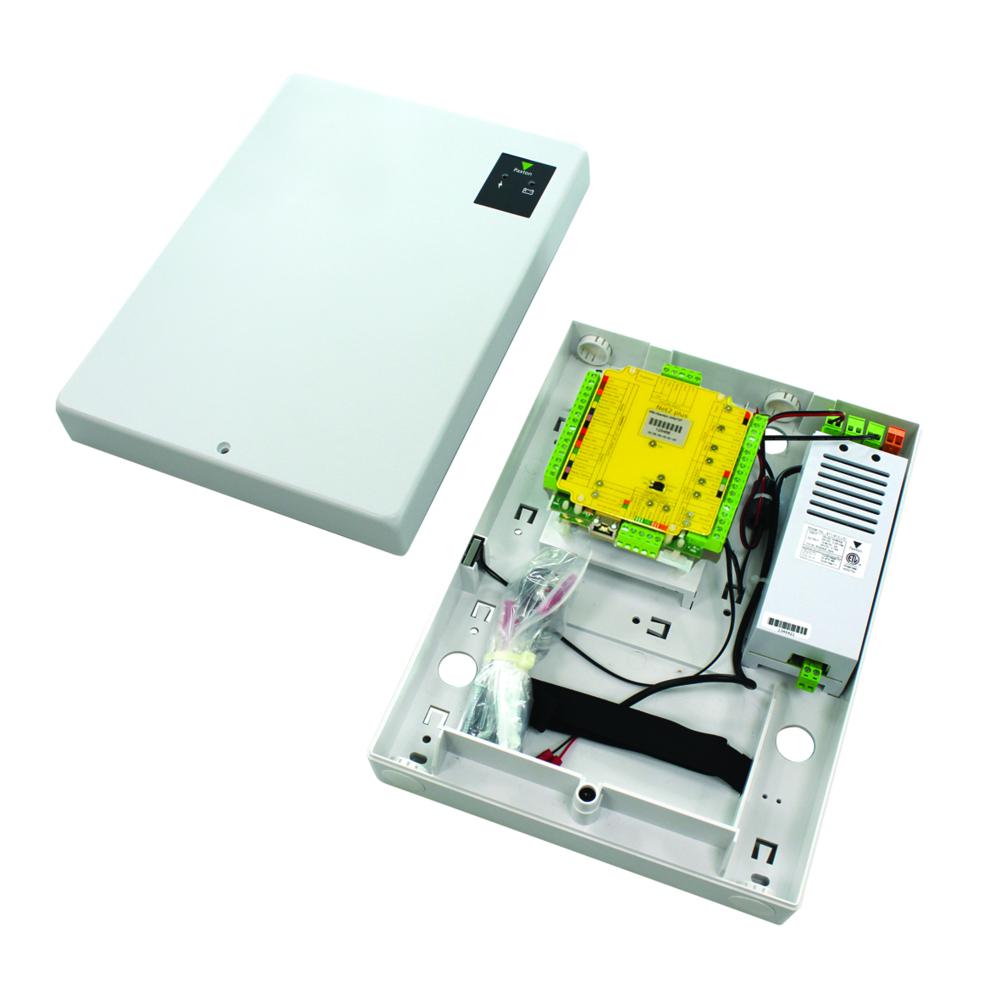

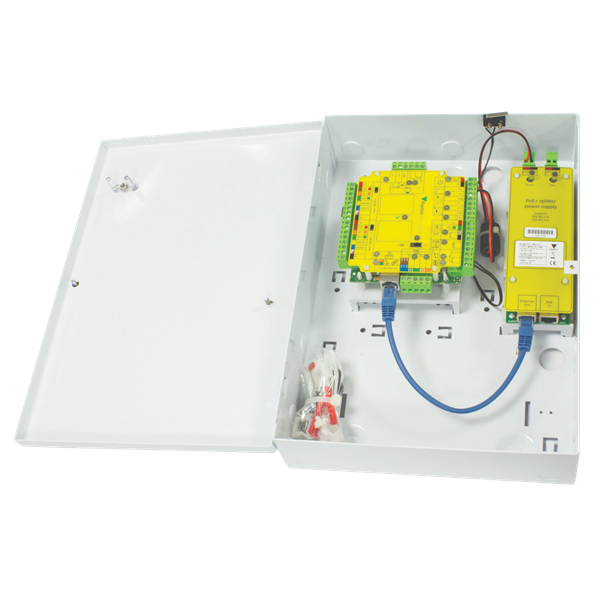

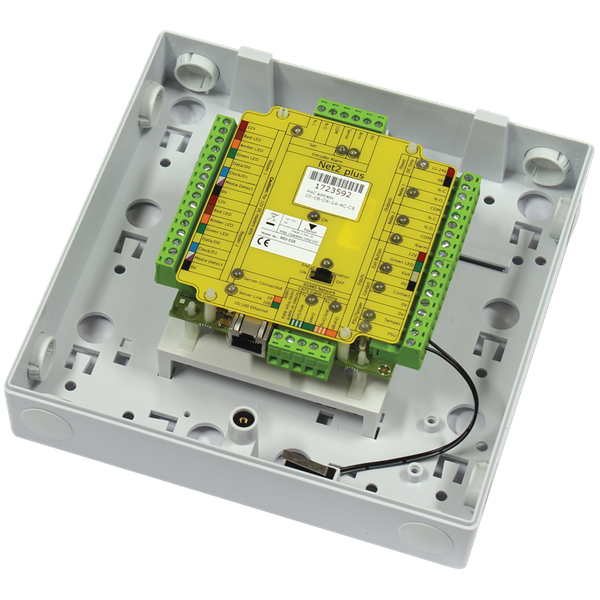

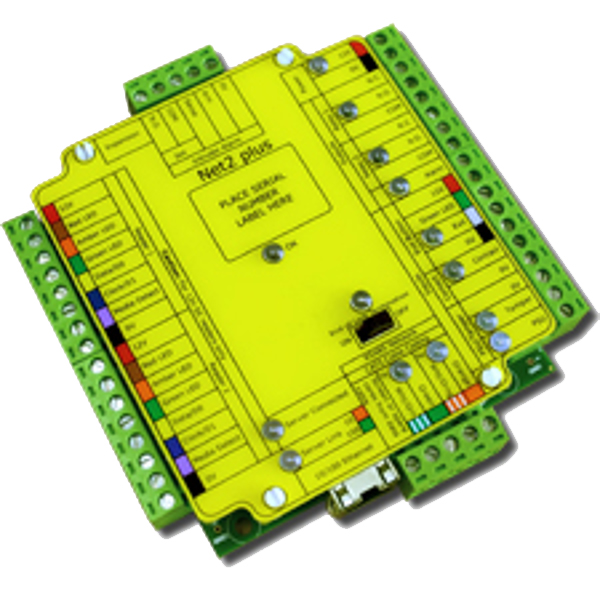

682-493 - PCB 682-528 - PCB with Plastic Housing 682-531 - PCB with Plastic Cabinet and 2A PSU 682-284 - PCB with Plastic Housing and PoE+ (Power Over Ethernet) 682-813 - PCB with Metal Cabinet and 2A PSU 682-721 - PCB with Metal Housing and PoE+ (Power Over Ethernet)
Single door networkable access control unit
Plug into a TCP/IP network using a standard RJ45 plug
Net2 plus can replace a TCP/IP convertor
Net2 plus can also connect using RS485
Net2 plus, Net2 classic and Net2 nano control units can be mixed on a site
Diagnostic LEDs
FLASH memory allows easy upgrades
Use Paxton Access or 3rd party readers
Specifications - Net2 plus 1 door controller
min
typ
max
units
Electrical
Operating voltage
11
24
V DC (+20%)
Current consumption
200
mA
Switchable current
4
A
Switchable voltage
24
V DC (+20%)
Alarm output current
1
A @ 12 V DC
Environment
Operating temperature - Battery limits
0
55
°C
Moisture resistance
None
System Specification
Max number of ACUs per system
1000
Number of card holders
50000
Number of PINs
50000
PIN length
4
8
digits
Number of codes
50
Code length
4
8
digits
Readers/keypads per door
2
per port
Door open time
1
7
999999
sec
Time zones
64
Individual times within a time zone
2000
Number of events stored on ACU
2728
Data retention during power loss
30
day(s)
Can be used with fail OPEN release
Yes
Can be used with fail CLOSED release
Yes
Exit button input
Yes
Door contact input
Yes
Alarm/bell output
Yes
PSU monitoring input
Yes
Tamper input
Yes
Intruder alarm integration input
Yes
Wiring
Reader cable type
Belden 9540
RS485 data line
CAT5 or Belden 8723
Max RS485 data line length
1000
m
Max number of ACU's per RS485 data line
200
TCP/IP connection
Yes
Max TCP/IP nodes
200
Ethernet network speed
10
100
Mbps
Ethernet bandwidth required
9
115
200
kbps
DHCP support
Yes (static IP recommended
Modem support
Yes
Dimensions - Control unit
Width
116
mm
Height
126
mm
Depth
25
mm
Specifications - Net2 plus 1 door controller - Plastic housing
