Paxton 654 Control Unit with Housing Net2 Nano
In stock
Overview
Paxton 654 Wireless Control Units available with housing and power supply
Paxton 654-943, 654-549 and 654772 Nano Control Unit. Range of Net2 Nano wireless access control units which are network controlled by central administration PC, the Net2 Nano system uses wireless technology to communicate between the PC and control units. Net2 Nano can communicate with Net2 Plus and Net2 Classic, this allow for easy access control installation in remote buildings without network access.

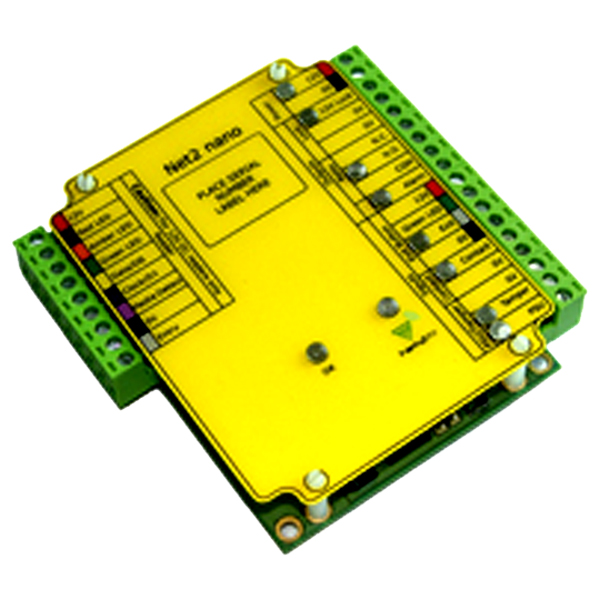

654-943 - PCB only

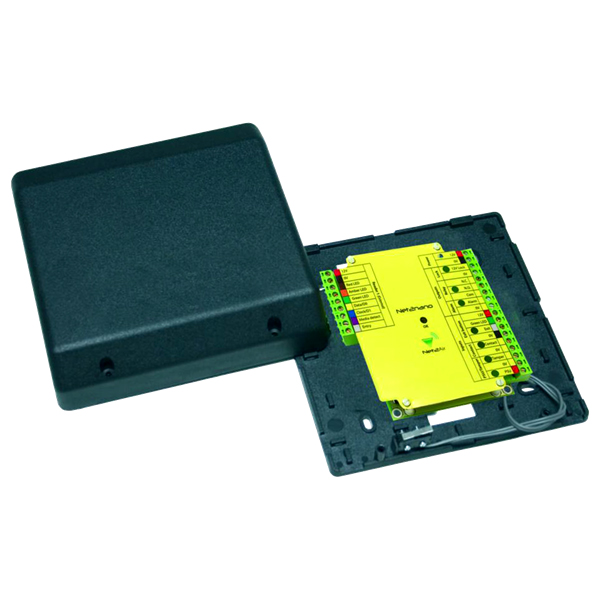

654-549 - PCB with Plastic Housing
654-772 - PCB with Plastic Box and 2A PSU
- Uses data encrypted wireless technology
- No wiring needed between the control unit and PC
- Diagnostic LEDs
- Colour coded wiring labels
- Net2 nano, Net2 plus and Net2 classic control units can be mixed on a site
- Dedicated lock output
- Distributed intelligence
- Event buffering
| Specifications - Net2 nano 1 door controller | |||||
| min | typ | max | units | ||
| Electrical | |||||
| Operating voltage | 11 | 12 | 14.5 | V DC | |
| Current consumption | 120 | mA | |||
| Switchable current | 2 | A | |||
| Switchable voltage | 24 | V DC | |||
| Dedicated lock output current | 1.1 | A | |||
| Alarm output current | 1 | A | |||
| Environment | |||||
| Operating temperature - Battery limits | 0 | 55 | °C | ||
| Moisture resistance | None | ||||
| System Specification | |||||
| Max number of ACUs per system | 1000 | ||||
| Number of card holders | 10000 | ||||
| Number of PINs | 10000 | ||||
| PIN length | 4 | digits | |||
| Number of codes | 50 | ||||
| Code length | 4 | 8 | digits | ||
| Readers/keypads per door | 2 | ||||
| Door open time | 1 | 7 | 999999 | sec | |
| Time zones | 64 | ||||
| Individual times within a time zone | 2000 | ||||
| Number of events stored on ACU | 3584 | ||||
| Data retention during power loss | 60 | day(s) | |||
| Can be used with fail OPEN release | Yes | ||||
| Can be used with fail CLOSED release | Yes | ||||
| Exit button input | Yes | ||||
| Door contact input | Yes | ||||
| Alarm/bell output | Yes | ||||
| PSU monitoring input | Yes | ||||
| Tamper input | Yes | ||||
| Communication | |||||
| Carrier frequency | 2.405 | GHz | |||
| Max recommended ACUs per bridge | 10 | ||||
| Max USB bridges per system | 1 | ||||
| Max Ethernet bridges per system | 200 | ||||
| Net2Air wireless range | 3 | 20 | m | ||
| Reader cable type | Belden 9540 | ||||
| Dimensions - Control unit | |||||
| Width | 105 | mm | |||
| Height | 106 | mm | |||
| Depth | 23 | mm | |||
| Specifications - Net2 nano 1 door controller - Plastic housing | |||||
| min | typ | max | units | ||
| Electrical | |||||
| Operating voltage | 11 | 12 | 14.5 | V DC | |
| Current consumption | 120 | mA | |||
| Switchable current | 2 | A | |||
| Switchable voltage | 24 | V DC | |||
| Dedicated lock output current | 1.1 | A | |||
| Alarm output current | 1 | A | |||
| Environment | |||||
| Operating temperature | 0 | 55 | °C | ||
| Moisture resistance | None | ||||
| System Specification | |||||
| Max number of ACUs per system | 1000 | ||||
| Number of card holders | 10000 | ||||
| Number of PINs | 10000 | ||||
| PIN length | 4 | digits | |||
| Number of codes | 50 | ||||
| Code length | 4 | 8 | digits | ||
| Readers/keypads per door | 2 | ||||
| Door open time | 1 | 7 | 999999 | sec | |
| Time zones | 64 | ||||
| Individual times within a time zone | 2000 | ||||
| Number of events stored on ACU | 3584 | ||||
| Data retention during power loss | 60 | day(s) | |||
| Can be used with fail OPEN release | Yes | ||||
| Can be used with fail CLOSED release | Yes | ||||
| Exit button input | Yes | ||||
| Door contact input | Yes | ||||
| Alarm/bell output | Yes | ||||
| PSU monitoring input | Yes | ||||
| Tamper input | Yes | ||||
| Communication | |||||
| Carrier frequency | 2.405 | GHz | |||
| Max recommended ACUs per bridge | 10 | ||||
| Max USB bridges per system | 1 | ||||
| Max Ethernet bridges per system | 200 | ||||
| Net2Air wireless range | 3 | 20 | m | ||
| Reader cable type | Belden 9540 | ||||
| Dimensions - Control unit | |||||
| Width | 105 | mm | |||
| Height | 106 | mm | |||
| Depth | 23 | mm | |||
| Dimensions - Plastic housing | |||||
| Width | 200 | mm | |||
| Height | 200 | mm | |||
| Depth | 78 | mm | |||
| Specifications - Net2 nano 1 door controller - 12V 2A PSU, Plastic cabinet | |||||
| min | typ | max | |||
