Paxton 521-715 Vandal Resistant Stainless Steel Keypad for Switch2 and Net2
In stock
Overview
Paxton 521-715 vandal resistant keypad for Switch2 and Net2 Access Control Systems

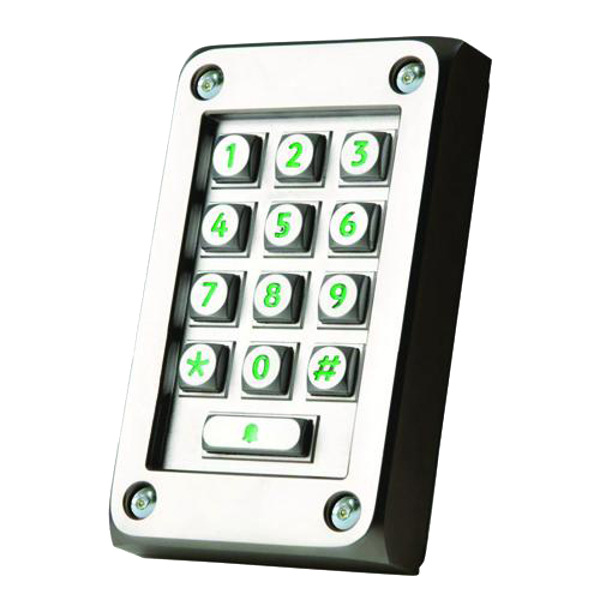

Paxton vandal resistant keypad supplied with security fixings. The Paxton 521-715 is ideal for vulnerable areas, the keypad is made with a cast metal housing with the option of metal mounting plate or a metal surface mounting box. The keypad is also backlit for easy use.
- Use with Switch2 or Net2
- Vandal resistant design
- Robust metal construction
- Security fixing screws
- Backlit keypad
- IPX7 rated - suitable for external use
{youtube}p1HV5SlTLDg{/youtube}
| Specifications - TOUCHLOCK vandal resistant metal keypad | ||||
| min | typ | max | units | |
| Electrical | ||||
| Operating voltage | 10 | 12 | 14 | V DC |
| Current consumption | 150 | mA | ||
| Clock and data bit period | 600 | µs | ||
| System Specification | ||||
| Max cable extension length | 100 | m | ||
| Cable type for extensions | Belden 9540 | |||
| Backlit | Yes | |||
| Additional coloured bezels available | No | |||
| Environment | ||||
| Operating temperature | -20 | 55 | °C | |
| Moisture resistance | IPX7 | |||
| Vandal resistance | High | |||
| Dimensions | ||||
| Cable length | 5 | m | ||
| Width | 89 | mm | ||
| Height | 143 | mm | ||
| Depth | 28 | mm | ||
