Paxton 489-710 I/O Board for Net2
In stock
Overview

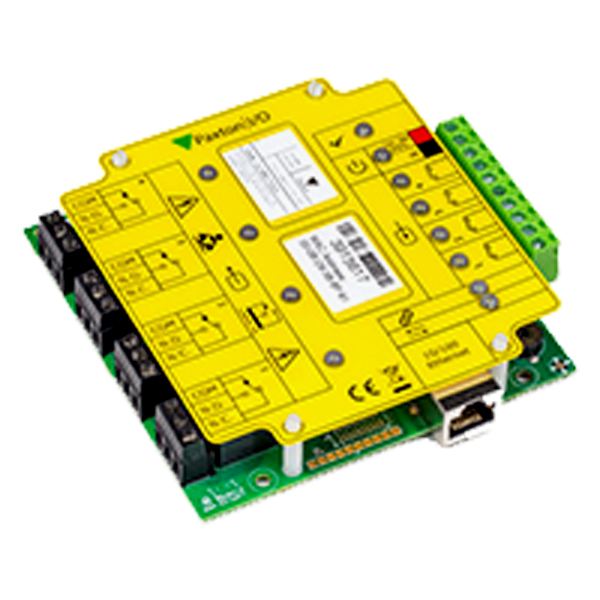

Paxton 489 -710 flexible Net2 I/O Board with 4 input and 4 outputs
Paxton 489-710 flexible I/O input / output Net2 Board. This I/O board connects directly to an ethernet network via RJ45 connector, the board can then be controlled via the Net2 Software.
- Flexible inputs and outputs
- Integrate with lifts, heating, lighting and more
- Connects directly to LAN/WAN only
- 4 mains rated relay outputs per board
- 4 inputs per board
- 4 outputs per board
- For use with Net2 triggers and actions feature
| Specifications - Net2 I/O board | ||||
| min | typ | max | units | |
| Electrical | ||||
| Operating voltage | 11 | 12 | 14 | V DC |
| Current consumption | 200 | 400 | mA | |
| Relay contact current rating | 13 | A | ||
| Relay contact isolation | 4 | kV AC. | ||
| Relay contact voltage | 240 | V AC | ||
| Relay contact frequency | 50 | Hz | ||
| System Specification | ||||
| Inputs | 4 | |||
| Relay outputs | 4 | |||
| Network information | ||||
| Ethernet network speed | 10 | Mbps | ||
| Ethernet connection type | 10Base-T / 100Base-Tx | |||
| DHCP support | Yes | |||
| Environment | ||||
| Operating temperature | -20 | 55 | °C | |
| Moisture resistance | None | |||
| Dimensions | ||||
| Width | 114 | mm | ||
| Height | 120 | mm | ||
| Depth | 32 | mm | ||
