Paxton 353-467 Multi Format Proximity Reader for Net2 and Mifare
In stock
Overview

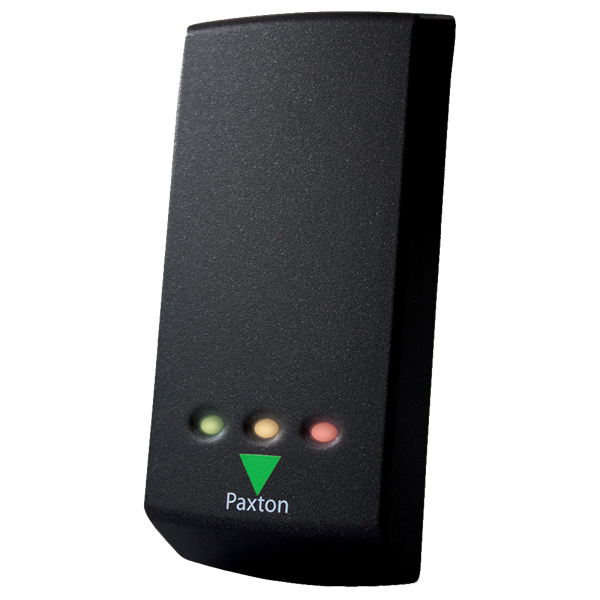

Paxton 353-467 Multi format reader supplied with a choice of black and white fascia's
Paxton Multi format reader that will read MIFARE, EM4100 and Net2 Tokens. The Paxton 353-467 is an external token reader that is supplied with both black and white fascia's.
- Multi-format P50 reader
- Reads MIFARE® tokens
- Reads EM4100 tokens
- Reads Net2 tokens
- Supplied with a choice of black or white fascias
- Low profile - less than 16mm deep
- IPX7 rated - suitable for external use
| Specifications - Net2 proximity MIFARE® reader - P50 | ||||
| min | typ | max | units | |
| Electrical | ||||
| Operating voltage | 10 | 12 | 14 | V DC |
| Current consumption | 170 | mA | ||
| Carrier frequency | 125 | kHz | ||
| Carrier frequency | 13.56 | MHz | ||
| Clock & data bit period | 570 | 700 | µs | |
| System Specification | ||||
| Cable type for extensions | Belden 9540 | |||
| Read range: MIFARE® 1K | 50 | mm | ||
| Read range: MIFARE® 4K | 40 | mm | ||
| Read range: MIFARE® Ultralight / C | 25 | mm | ||
| Read range: MIFARE® DESFire EV1 | 20 | mm | ||
| Read range: Net2 keyfob | 30 | mm | ||
| Read range: Net2 token | 80 | mm | ||
| Read range: Net2 Watchprox | 20 | mm | ||
| Read range: Hitag2 ISO | 70 | mm | ||
| Read range: Hands free tokens | 850 | mm | ||
| Read range: EM4100 keyfob | 50 | mm | ||
| Read range: EM4100 card | 60 | mm | ||
| Read range: EM4100 proxdisc | 30 | mm | ||
| Read range: Hitag1 ISO | 60 | mm | ||
| Additional coloured covers available | Yes | |||
| Net2Air compatible | Yes | |||
| Environment | ||||
| Operating temperature | -35 | 66 | °C | |
| Moisture resistance | IPX7 | |||
| Vandal resistance | Medium | |||
| Dimensions | ||||
| Cable length | 5 | m | ||
| Width | 50 | mm | ||
| Height | 100 | mm | ||
| Depth | 15 | mm | ||
