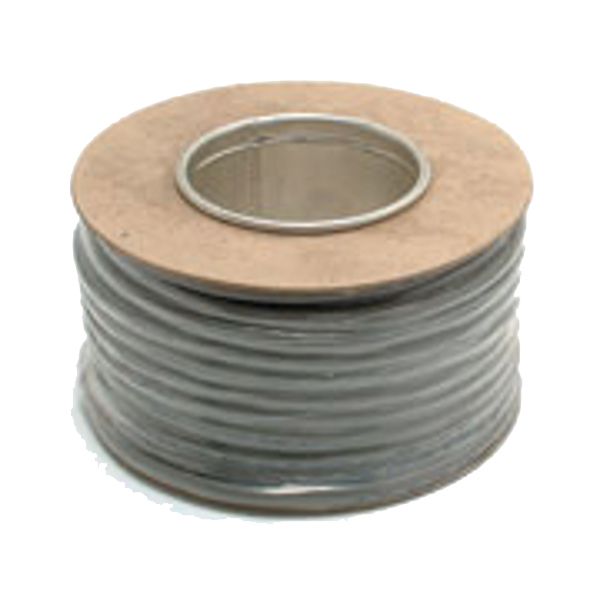

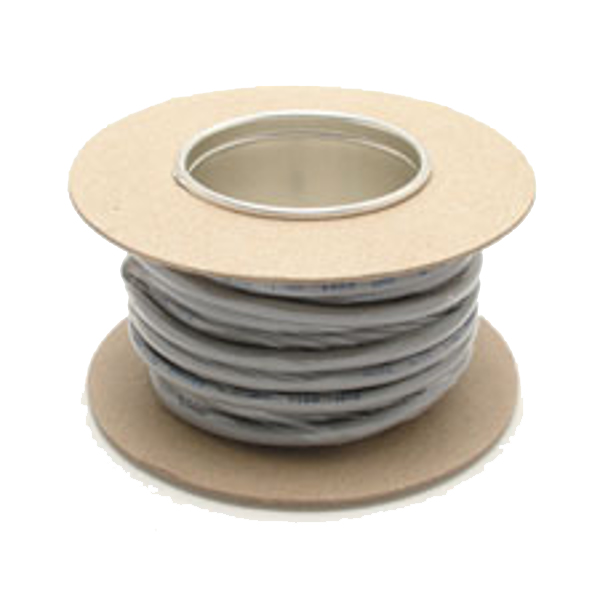

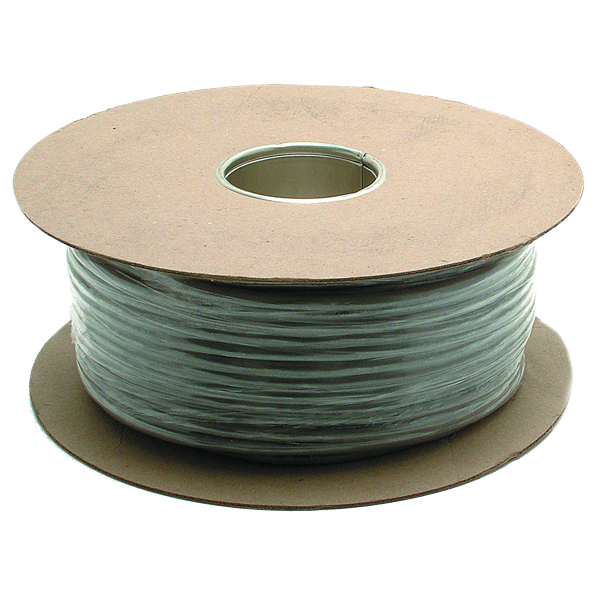

Paxton 166 10 Cor Reader and Keypad Cable - 10m 25m 100m
In stock
Overview
Paxton Access Control Cable with 10 cores, available in 10m, 25m and 100m lengths. For use with Paxton keypads and readers
Paxton Access Control Cable with 10 cores, used for Paxton keypads and readers.
- CR9540 Specification
- Overall screened 10-core cable
- For internal use
- Maximum cable length for reader and keypads is 100m
- Cable runs of over 25m the 12V and 0V cores should be doubled up to minimise voltage drop.
| Specifications - Paxton reader cable - 10 core, CR9540 | ||||
| min | typ | max | units | |
| Conductor resistance | 8.55 | Ohms/100m | ||
| Diameter | 6.2 | mm | ||
| Cable length | 10, 25 or 100 | m | ||
| Number of conductors | 10 | |||
| Conductor size | 24 | AWG | ||
