CISA Electrika 12V AC Rim Lock

CISA Electrika 12V AC Rim Lock , 50-80mm backset, fail locked with holding force of 2000kg

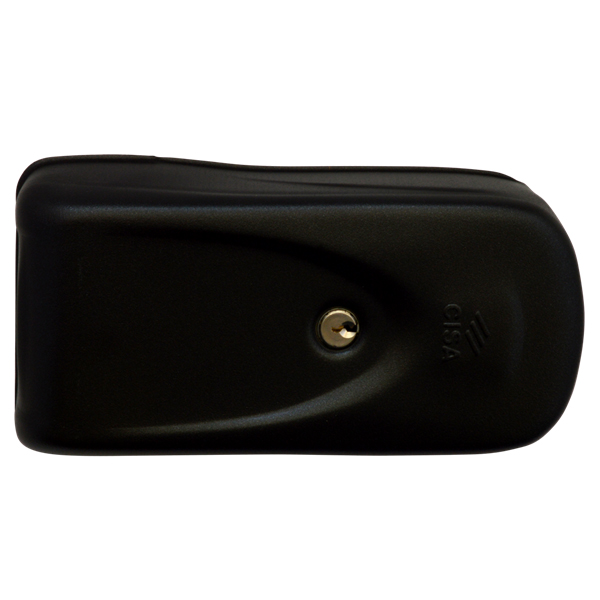

This Electrika Rim Lock made by CISA has a painted protective steel case with a Rotary hook deadbolt in extruded alluminium. It comes supplied with a Striker, Instruction Sheet, Fixing Screws, 2 spacers for the striker and 3 keys. Extra keys can be purhased when ordering. Its certified according to the European Standard prEN 14846:06:.

Fitting: Rim

Operation: Fail Locked

Voltage: 12V AC

Current: 3A

Holding Force: 2000kg

Backset: 50 - 80mm

1A610-00-0 Cylinder Only

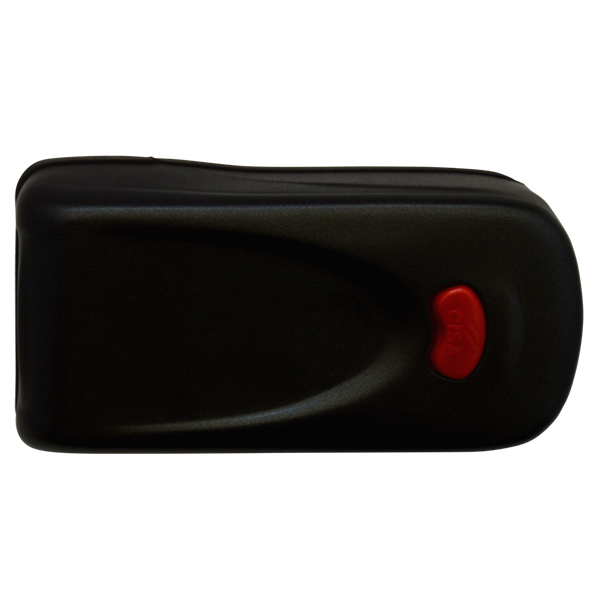

1A630-00-0 Cylinder and Internal Manual Exit Button

Features

Painted protective steel case, metal striker with stainless steel swinging pin, rotary hook deadbolt in extruded aluminium. 12 V ac CE, non-handed and with a variable backset from 50 to 80 mm, rated current 3A. Internal manual exit button on hold open versions.

Size

Lock: 204 x 110 x 60mm

Strike: 94 x 31 x 37mm
