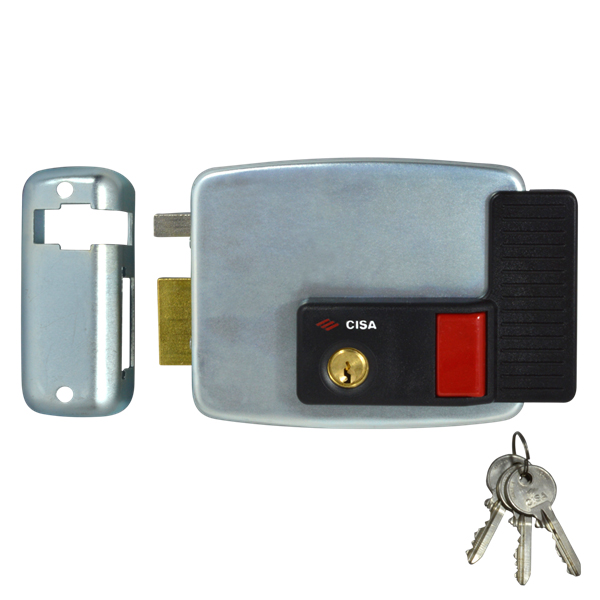

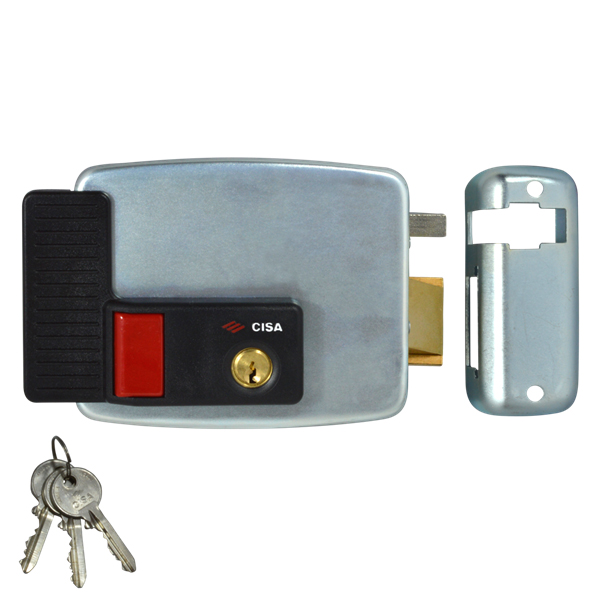

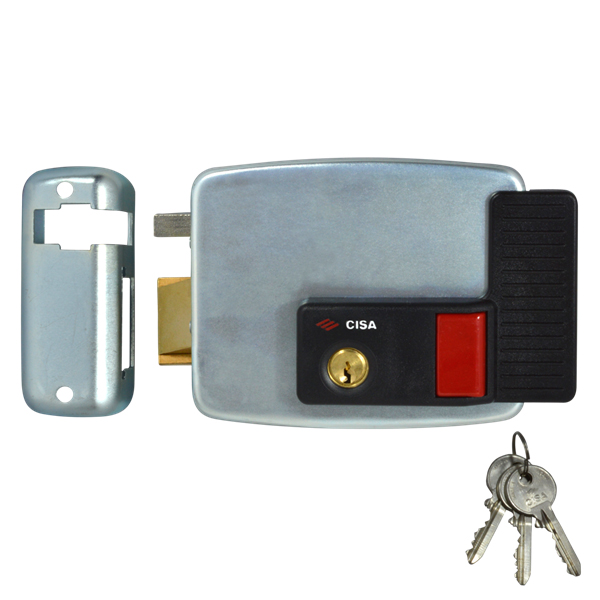

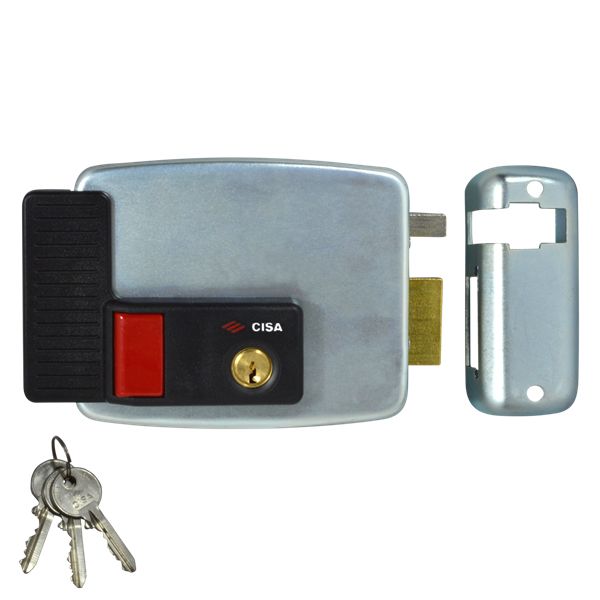

CISA 11931 Series Electric Rim Lock for External Metal Door / Gate

CISA 11931 Series Electric Rim Lock for External Metal Door / Gate with galvanised finish, exit by inside exit button

Electric Rim Lock for use on External Metal Gates or doors with internal manual exit button. This rim lock can be operated by Access Control System, key from either side or internal button override. CISA electric lock series is certified according to the European standard EN 14846:06:- Security degree 3 (500 Kg lateral thrust and 200 Kg front load). Comes supplied with 3 keys. Made by CISA.

Fitting: Rim

Operation: Fail Locked

Dead-Locking Latch

Voltage: 12V AC CE

Current absorption 2.5A

Backset: 80mm

External cylinder length: 55 mm.

Supplied with Striker, Fixing Screws, 3 Keys and Instructions

Features

Zinc-plated steel case and striker with dead-locking latch. 12 V ac CE current absorption 2,5 A. This electric lock series is certified according to the European standard prEN 14846:06.

Operation

Key to open from outside, internal manual exit button and key override

Size

Lock Case: 130 x 111 x 35
