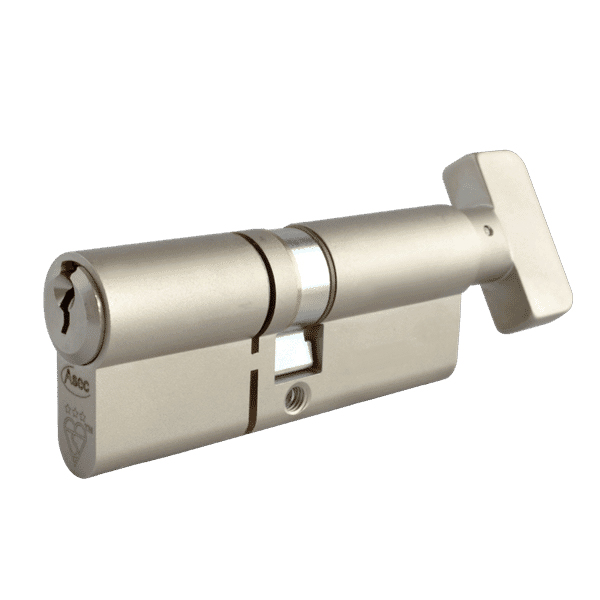

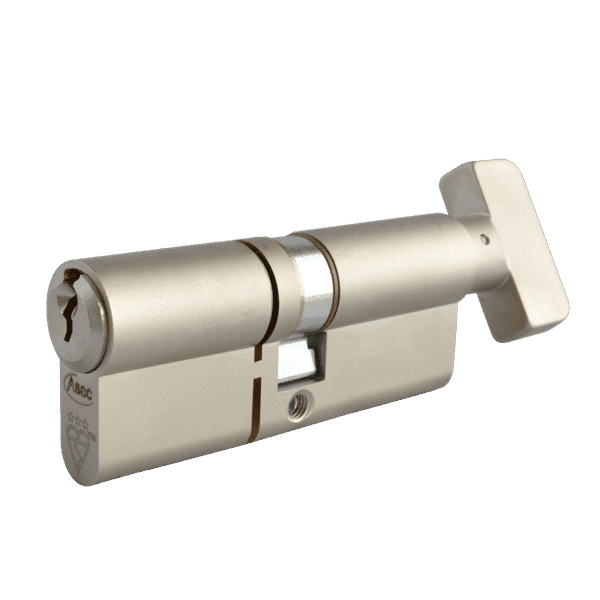

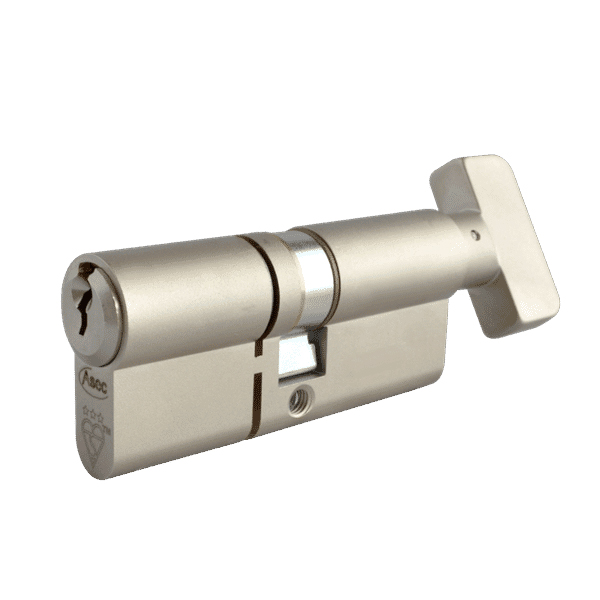

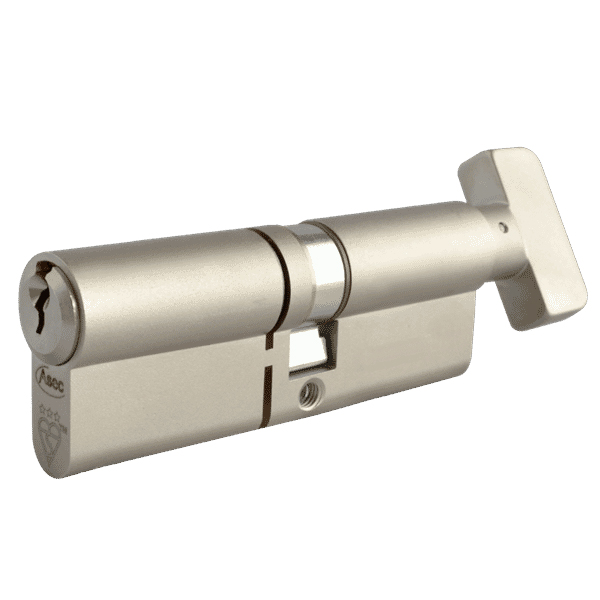

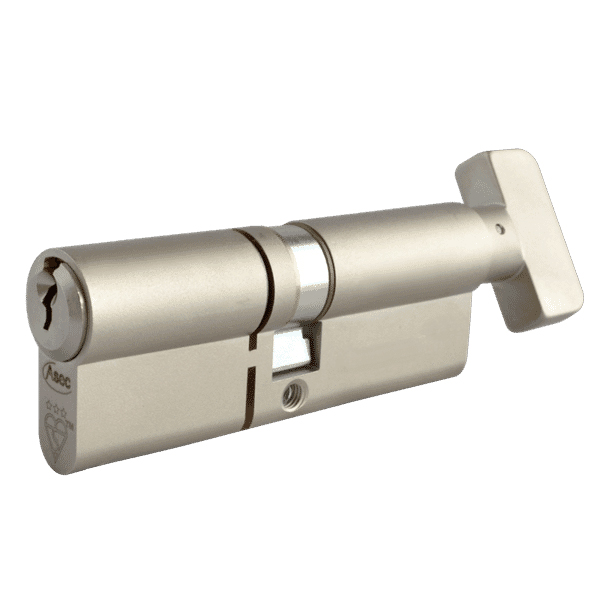

Asec Kite Elite 3 Star BS Thumb Turn Cylinders
Asec have added to their high security Kite Elite cylinders with a range of thumb-turn cylinders. Asec Kite Elite Cylinders offer maximum protection against most type of door cylinder attack and have a star rating meeting security standard BS EN 1303:2005 TS007 2012
Mechanism: 6 Pin with 3 star rating meets security standard BS EN 1303:2005 TS007 2012
Finish: Nickel Plated
Overall Length: 70mm, 80mm, 85mm and 100mm
Keys Supplied: 3
Keyed Alike: Yes email for details
Master Keyed: No
Features
3 star rating meets security standard BS EN 1303:2005 TS007 2012
Supplied with 3 keys
Snap resistant
Bump resistant
Drill resistant
Snap resistant with break away section
Operation
Key is used from outside to open and closed the door, while from inside the thumbturn is used to lock and unlock the cylinder
Size
Overall Length (A) | Size to Centre of Cam (B&C) | Diameter of Cylinder (D) | Height of Cylinder (E) | Width of Cylinder (F) | |
| 70mm | 70 | 35 | 17 | 33 | 10 |
| 80mm | 80 | 40 | 17 | 33 | 10 |
| 85mm | 85 | 45/40 | 17 | 33 | 10 |
| 100mm | 100 | 50/50 | 17 | 33 | 10 |
