Asec 5 Pin Euro Key and Turn Cylinder
In stock
Overview

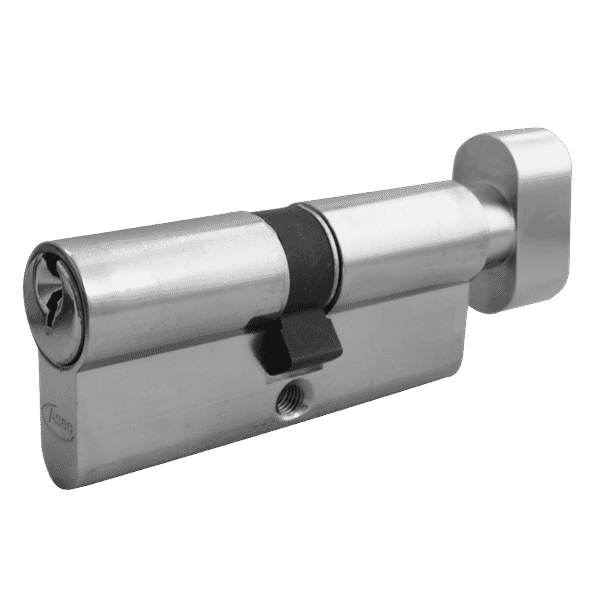

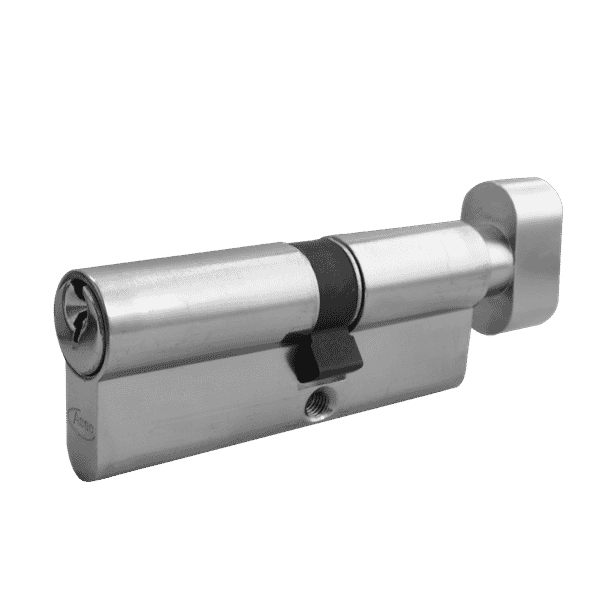

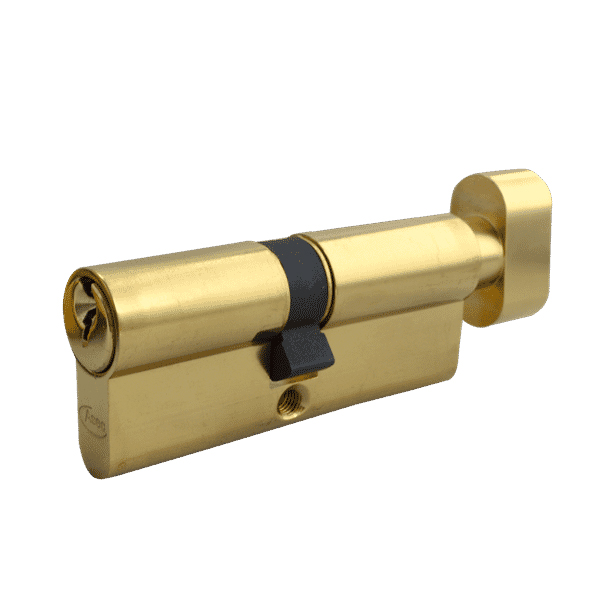

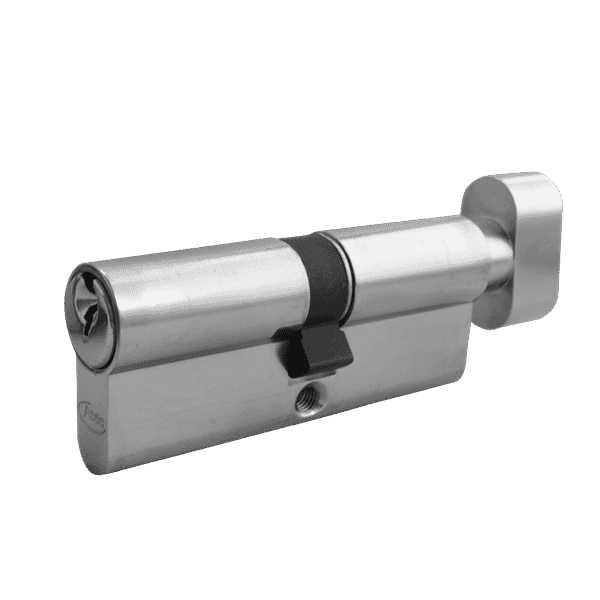

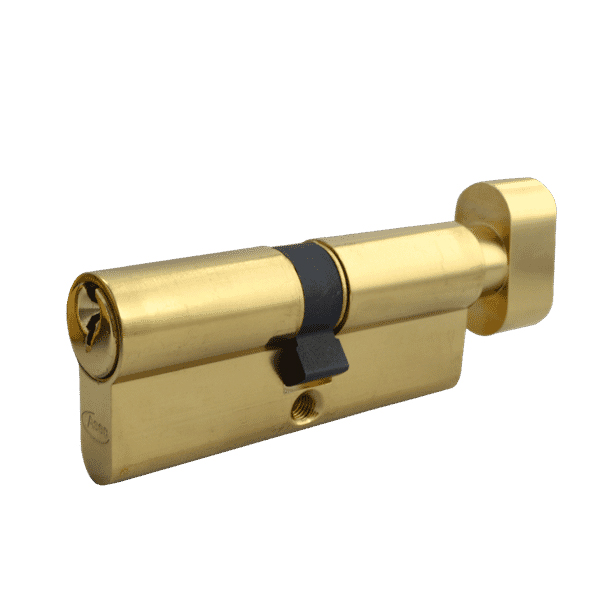

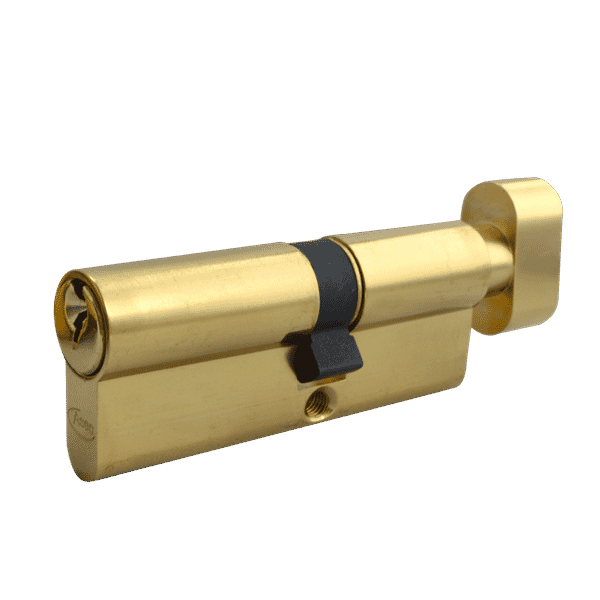

Asec 5 Pin Euro Key and Turn Cylinder 60, 70 and 80mm in brass or satin chrome supplied with 3 keys

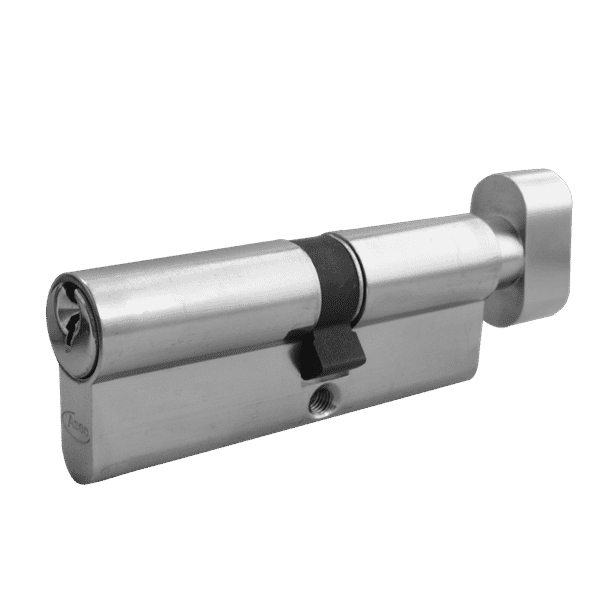

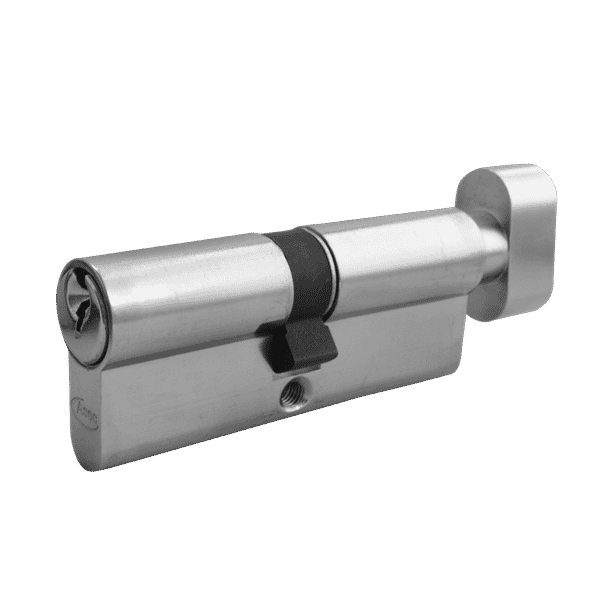

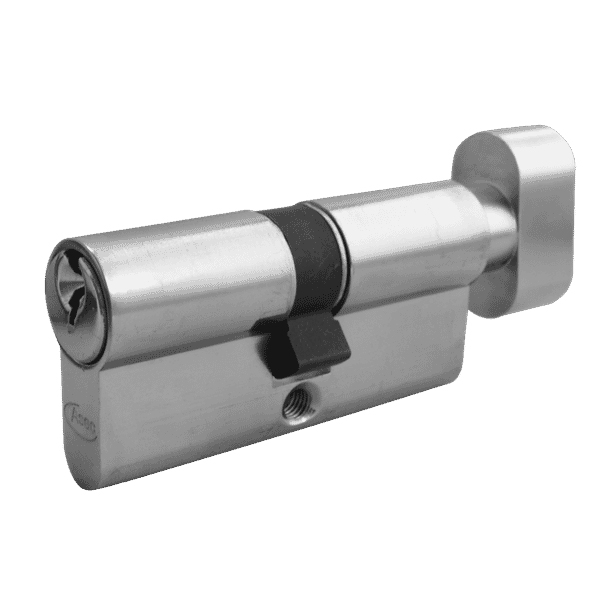

Asec 5 Pin Euro Key and Turn Cylinder
Made with a 5 pin mechanism, this Euro profile shaped cylinder has key entry one end and a turn on the other. Manufactured by Asec and comes supplied with 3 keys. Sizes range from 60-80mm with a choice of two finishes. Can be keyed alike if required.
Finish: Polished Brass and Satin Chrome
Mechanism: 5 Pin
Overall Length: 60, 70 and 80mm
Keys Supplied: 3
Keyed Alike: Yes email for details
Master Keyed: No
Size

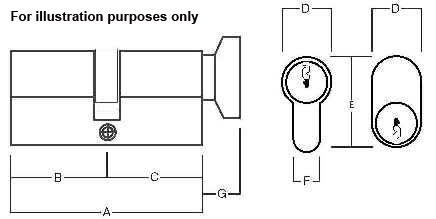

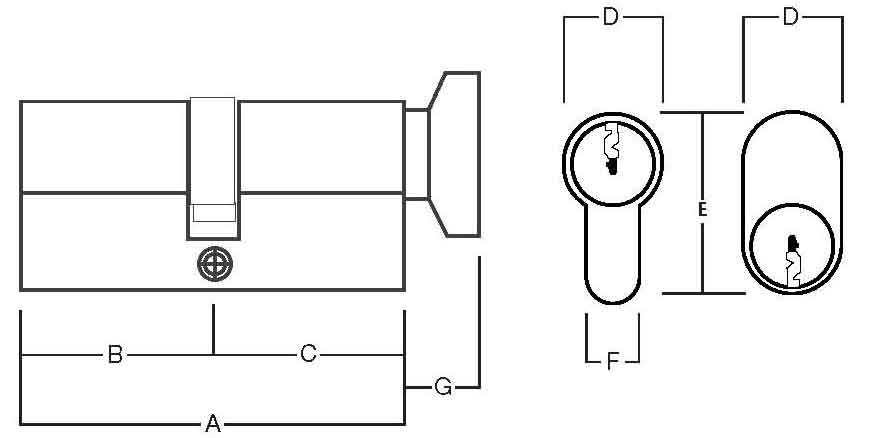

Overall Length (A) | Size to Centre of Cam (B&C) | Diameter of Cylinder (D) | Height of Cylinder (E) | Width of Cylinder (F) | Projection of Turn (F) | |
| 60mm | 60 | 30 | 17 | 33 | 10 | - |
| 70mm | 70 | 35 | 17 | 33 | 10 | - |
| 80mm | 80 | 40 | 17 | 33 | 10 | - |
