Adams Rite 1354-0201 Arm Lock Mini Electro Surface Mount Shearmagnet

Adams Rite 1354-0201 Arm Lock Mini Electro Surface Mount Shearmagnet

In stock
SKU
L9514-P

Adams Rite 1354-0201 Arm Lock Mini Electro Surface Mount Shearmagnet

In stock
Overview
Adams Rite 1354-0201 Arm Lock Mini Electro Surface Mount Shearmagnet
Grouped product items
Product Name Qty
Adams
Adams Rite 1354-0201 Arm Lock Mini Electro Surface Mount Shearmagnet
£774.60 £645.50

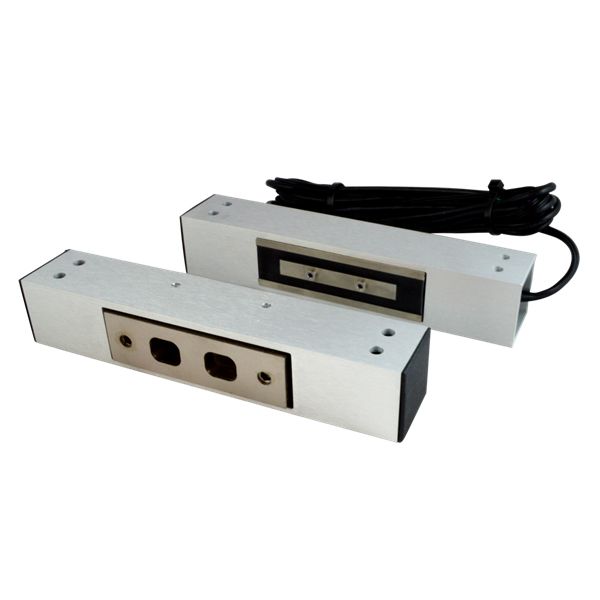

 The Adams Rite 1354-0201 armlock surface shear magnet is a surface-mounted electric lock designed for use on glass doors. It is suitable for use on 1/4" to 1/2" (6 mm to 12 mm) thick tempered glass doors and can be used in new construction or retrofit installations. The lock is activated by a shear magnet, which is mounted on the door frame and engages with the lock when the door is closed. The lock is designed to provide security and access control for commercial and residential applications, such as office buildings, retail spaces, and residential homes. It is made of aluminum and has a satin anodized finish. The lock can be used with a variety of Adams Rite deadlatches and electric strikes.

Product Specifications
OperationFail Unlocked
Current ConsumptionPull 1.5A Hold 0.5A at 12V DC & Pull 1.5A Hold 0.4A at 24V DC
FittingSurface
FinishBrushed Silver
BrandAdams Rite
Barcode5055120601366
MaterialAluminium
Manufacturer Reference1354-0201
Input Voltage12/24V DC
Holding Force1500Kg / 3300Lbs Per Door
HandedNo
Guarantee1 Year



Product Dimensions
Plate Width220mm
Plate Height38mm
Plate Depth38mm
Width175mm
Armature Length220mm
Armature Height38mm
Armature Depth38mm
Magnet Depth38mm
Magnet Length220mm
Magnet Height38mm
