ABLOY Electric Mortice Lock - EL402
In stock
Overview

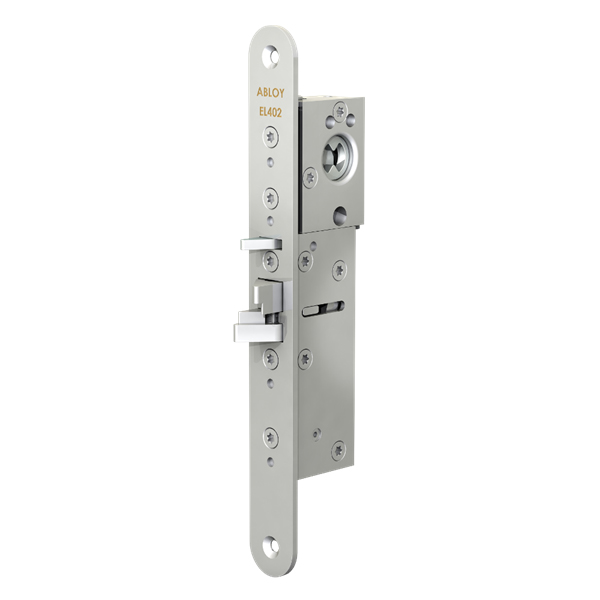

ABLOY EL402 Electric Mortice Lock for use with Access Control Systems
ABLOY EL402 Electric Mortice Door Lock for narrow stile doors. This lock has a unique adjustable backset allowing the mortice lock to be fitted to a wide range of metal doors. The locking bolt has a double action, when the door is closed the bolt is deadlocked, when the door is pulled or pushed open the bolt collapses into the lock case.
- Adjustable Backset
- Can be fitted horizontally
- Suitable for left and right hand doors
- Not suitable for Fire Doors or Doors with seals
- Ideal for narrow stile doors
| Product Specifications | |
| Operating Temperature | -20°C to 60°C |
| Application | Narrow Stile Doors |
| Current Consumption | 0.55A @ 12V DC / 0.24A @ 24V DC |
| Forend Finish | Polished Chrome |
| Barcode | 6416495235737 |
| Guarantee | 2 Year |
| Manufacturer Reference | EL402-F/UN |
| Input Voltage | 12/24V DC |
| Key Override | Yes (Cylinder Purchased Separately) |
| Product Dimensions | |
| Faceplate Width | 25mm |
| Faceplate Height | 225mm |
| Backset | 25mm to 35mm |
| Body Width | 19mm |
| Body Height | 153.5mm |
| Body Depth | 40mm |
