Yale PBS1 - PBS2 Auto Deadlocking British Standard BS3621:2007 Nightlatch

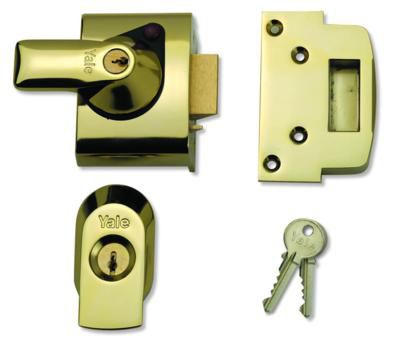

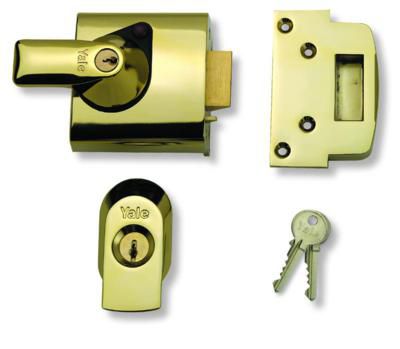

Yale PBS1 and PBS2 Auto Deadlocking Nightlatch
Mechanism: 6 Pin Cylinder
Cylinder finish: Brass
Case size: 69 and 89mm

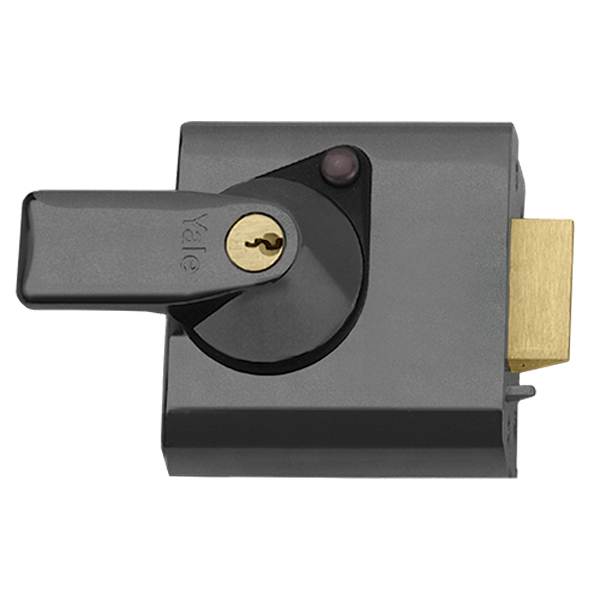

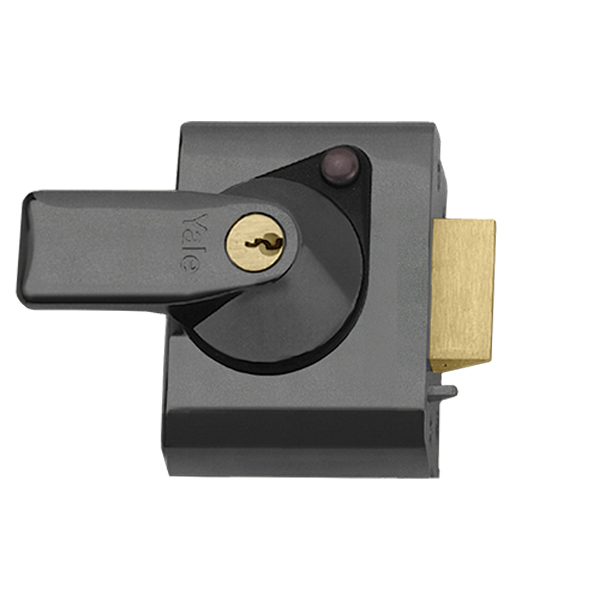

Case finish: Brass and Dark Metallic Grey
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Differs: 100000
Door thickness: 45 - 57mm
British Standard BS3621:2007
Features
Automatically deadlocks when door is in the closed position. Particularly suitable for glass panel doors.
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Handle can be deadlocked by key prior to closing the door and entry can always be gained by key from the outside. Bolt can be held back by pushbutton or locked in either the withdrawn or extended by a turn of the key in the handle.
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
PBS1 - 89mm |
89
|
60
|
90
|
33
|
32
|
PBS2 - 69mm |
69
|
40
|
90
|
33
|
32
|
