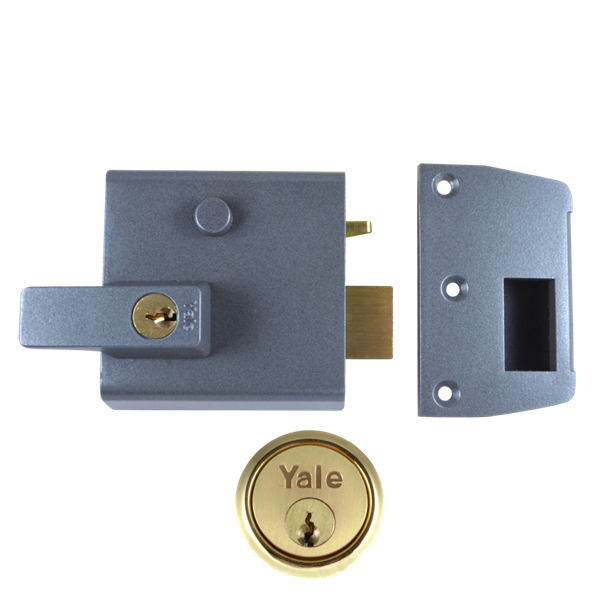

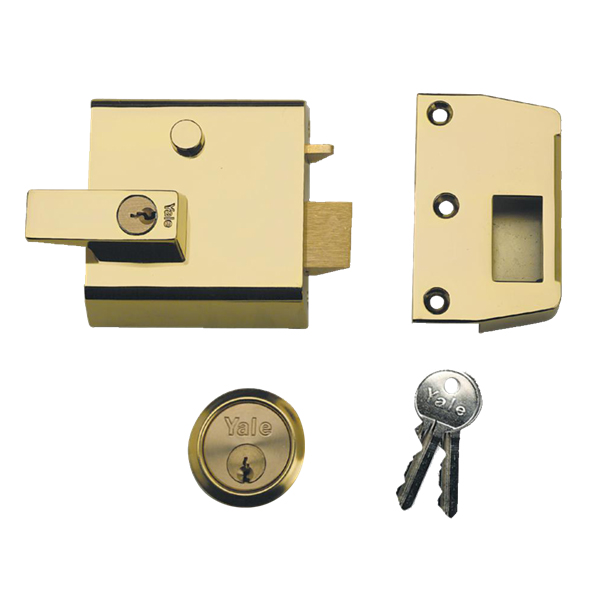

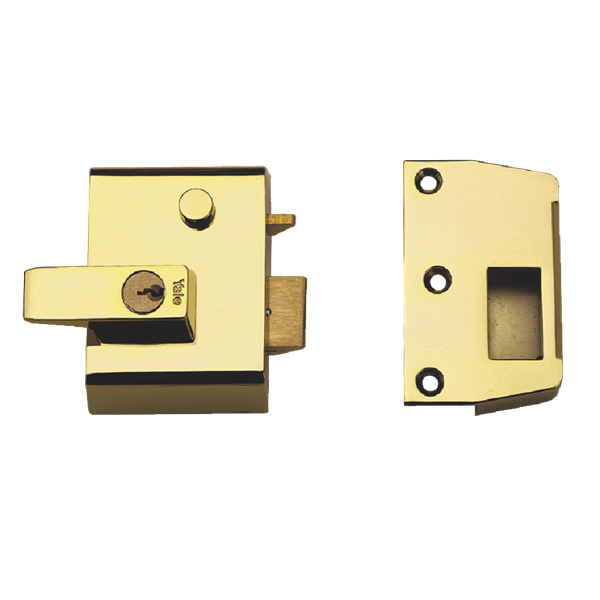

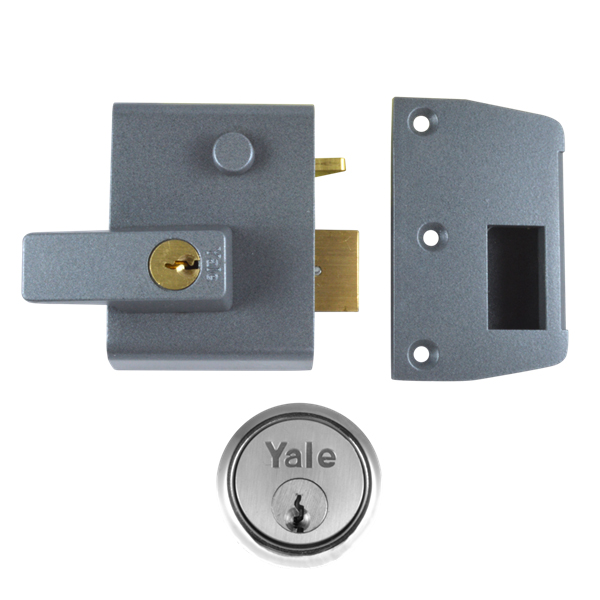

Yale No. 1 and 2 Auto Deadlocking Cylinder Nightlatch
Yale No. 1 and 2 Auto Deadlocking Cylinder Nightlatch
Mechanism: 5 Pin Cylinder
Cylinder finish: Brass and Satin Chrome
Case size: 64 and 92mm
Case finish: Brass and Dark Metallic Grey
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Differs: 20000
Door thickness: 32 - 57mm
Features
Automatically deadlocks when door is in the closed position. Particularly suitable for glass panel doors. Reverse bolt pattern available for outward opening doors.
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Handle can be deadlocked by key prior to closing the door and entry can always be gained by key from outside. Bolt can be help back by slide button or locked in either withdrawn or extended position by a turn of the key in the middle.
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
No.1 - 92mm |
92
|
60
|
88
|
30
|
20
|
No.2 - 64mm |
64
|
40
|
88
|
30
|
20
|
