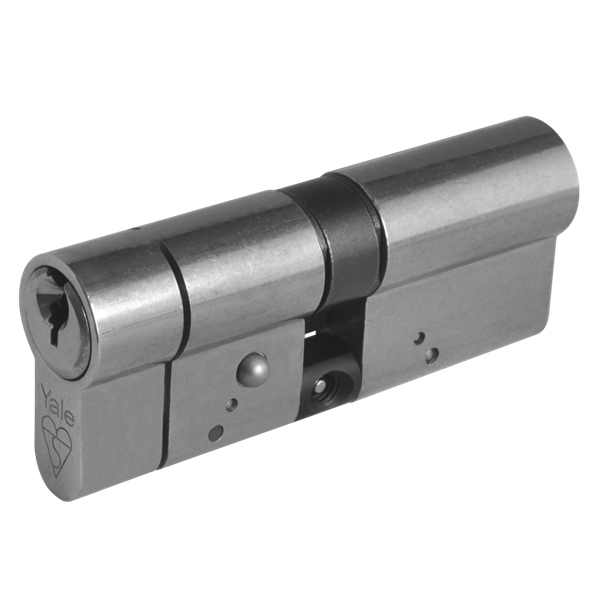

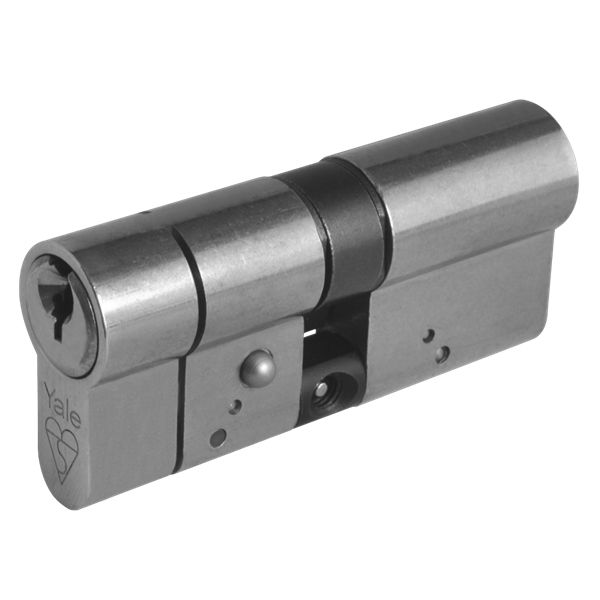

Yale Anti Snap Double Euro Cylinders BS 1303:2005 Secured By Design
Yale Anti Snap Double Cylinders BS 1303:2005 Secured By Design Sold Secure
Sold Secure High security cylinder by Yale, the name of home security, these cylinder also boast a BS1303 certification. Supplied keys are used on either side to operate cylinder, extra keys can also be added during order if 3 keys per cylinder is not enough. This Anti Snap, Drill, Pick and Bump cylinder has 6 pins security and is available in Brass or Nickel. Sizes Range from 70mm - 100mm.
Mechanism: 6 Pin
Finish: Nickel or Brass
Keys Supplied: 3
Keys Alike: No
Master Keyed: No
Features
Yale British Standard BSEN1303:2005 Anti Snap, Drill, Pick and Bump Double Cylinder, Sold Secure and Secured by design available in Nickel Plated and Brass, supplied with 3 keys and fixing screw
Operation
Double Euro Cylinder is operated by key from either side of the door.
Size
If offset cylinder first size if external size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
70mm |
70
|
35
|
17
|
33
|
10
|
90mm |
90
|
40/50
|
17
|
33
|
10
|
70mm |
70
|
35
|
17
|
33
|
10
|
80mm |
80
|
40
|
17
|
33
|
10
|
80mm |
80
|
35/45
|
17
|
33
|
10
|
90mm |
90
|
40/50
|
17
|
33
|
10
|
80mm |
80
|
35/45
|
17
|
33
|
10
|
100mm |
100
|
45/55
|
17
|
33
|
10
|
95mm |
95
|
40/55
|
17
|
33
|
10
|
90mm |
90
|
45
|
17
|
33
|
10
|
100mm |
100
|
50
|
17
|
33
|
10
|
100mm |
100
|
40/60
|
17
|
33
|
10
|
