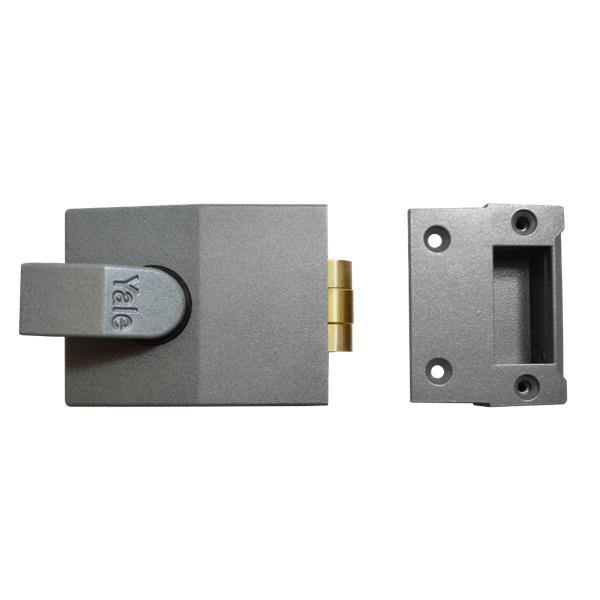

Yale 81 Cylinder Rollerbolt
Yale 65 and 66 Cylinder Deadbolt
Mechanism: 5 Pin Cylinder

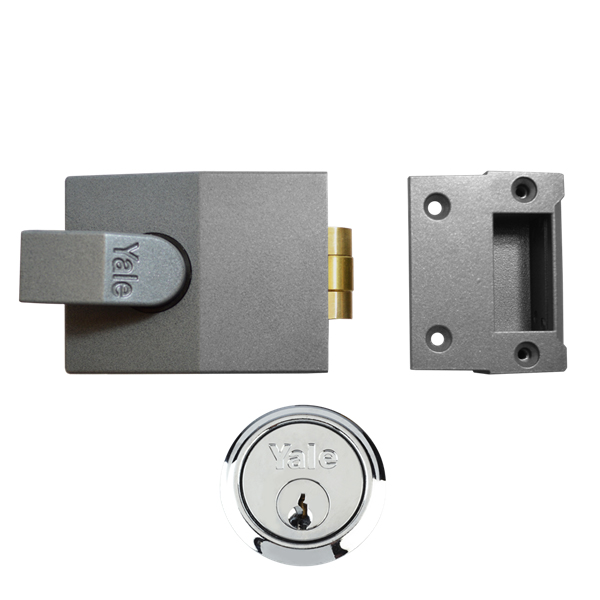

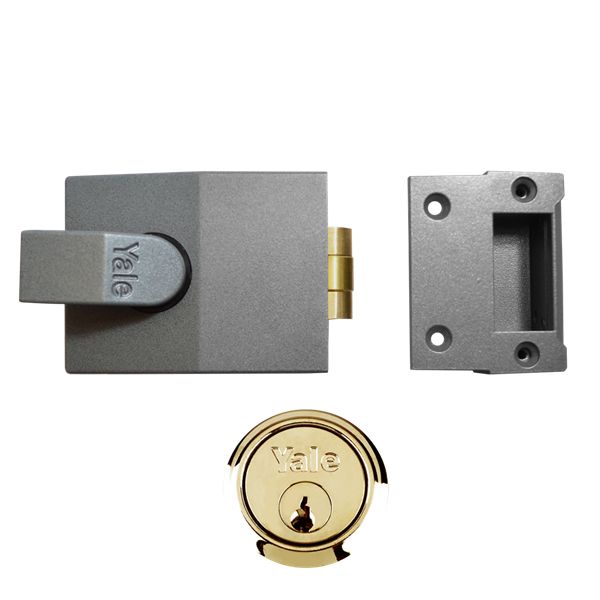

Cylinder finish: Brass and Satin chrome
Case size: 92mm
Case finish: Dark Metallic Grey
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Differs: 20000
Door thickness: 32 - 57mm
Features
Bolt extends from 9mm to 20mm when thrown
Operation
The roller catch operates on a push/pull action, and become an extend throw deadbolt which can be locked or unlocked from either side. To throw the bolt either a clockwise turn of the handle inside or an anti clockwise turn of the key outside is required.
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
92mm |
92
|
60
|
70
|
27
|
14
|
