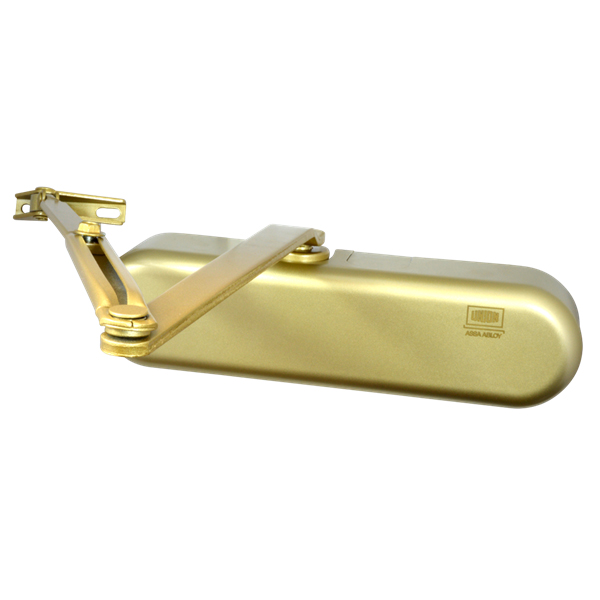

Union N8834 Medium Duty Overhead Door Closer Gold or Silver
Medium duty overhead door closer from the leading door brand Union. The Union N8834 non handed door closer can be used on left or right hand doors and is available in either silver or gold finish to suit other door furniture. N8834 from Union also has some great feature that are normally found on more expensive door closers, these include concealed adjustment controls with fully indenpendant controls for door closing speed and latch control. The arm supplied with the N8834 is flat form and also fully adjustable, the closer is supplied with full fitting instructions with great pictorial step by step guide. This overhead door closers is either size EN 3 or 4 thanks to a movable arm bracket.
- Can be fitted to internal fire resistant doors

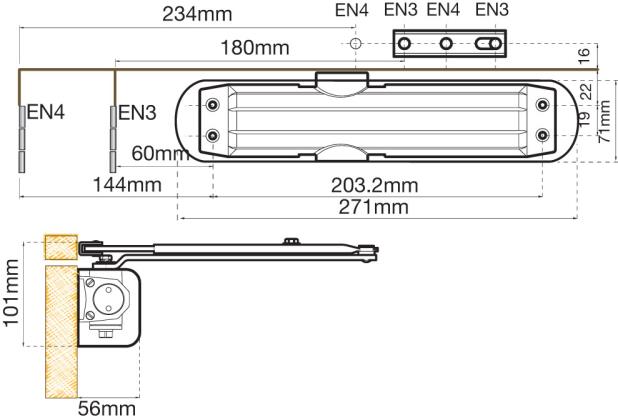

- Sizes EN 3 or 4
- For left or right hand doors - non handed
- Door closing speed and latch control both fully independent and adjustable
- Adjustment controls concealed
- Flat form arm which is fully adjustable
- Supplied with full fitting instructions which includes fitting template and step by step picture guide
- Nylon cover
- Available in Gold
Standards
- Certificate Number: 1162-CPD-0132 (CE mark not valid if door width/mass exceeds values shown)
- 3rd party tested to BS EN 1154 -
4 8 3/4 1* 1 3 - *Included in fire tests to BS EN 1634-1 with assessment for use on timber fire doors with intumescent protection up to FD120
- Certifire Certificate Number: CF391

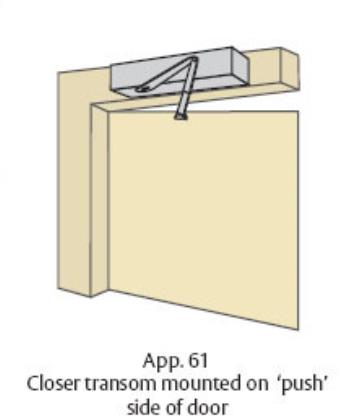

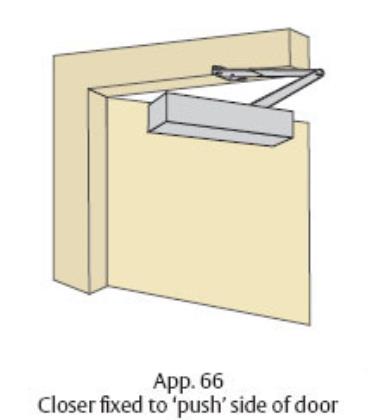

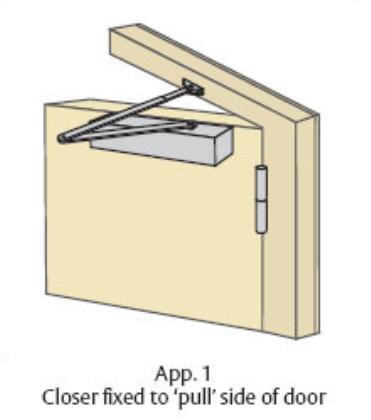

Apps 1 & 61 | App 66 | |
Max door width | 1100mm | 950mm |
Max door mass | 80kg | 60kg |
Max opening angle | 180º | 130º |
