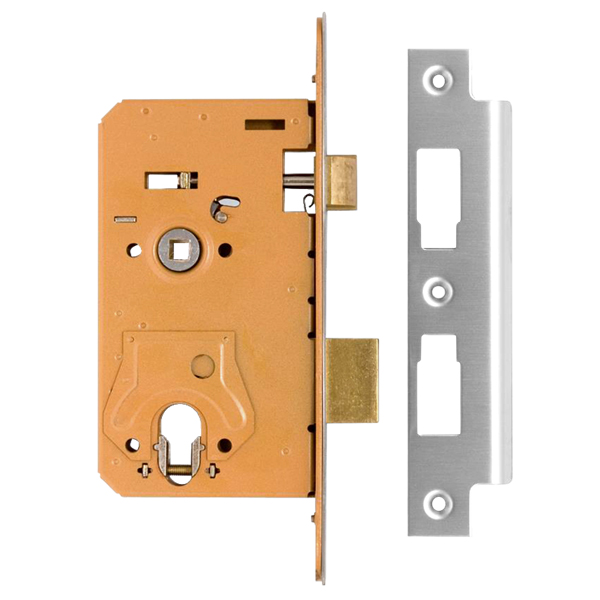

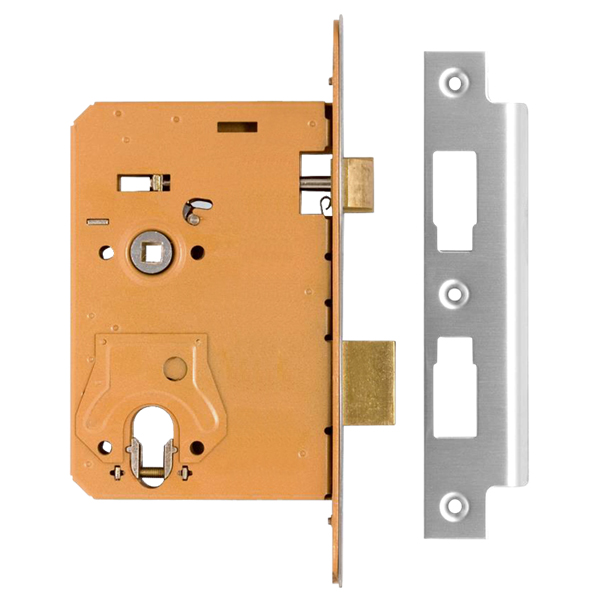

Union L2270 Oval or Euro Sashcase
Union L2270 Oval or Euro Sashcase
Mechanism: Oval or euro cylinder
Case size: 94 and 114mm
Follower: 8mm (one way action)
Case finish: Gold
Forend finish: Satin chrome
Features
Fully interchangeable with oval and euro cylinders. Pierced to accept bolt through furniture. Suitable for use with unsprung lever handles
Operation
Deadbolt is locked or unlocked by key from either side. Reversible latchbolt withdrawn by lever handle from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
94mm |
94
|
60
|
165
|
72
|
234
|
27
|
114mm |
114
|
80
|
165
|
72
|
234
|
27
|
