Union HD26 Tubular Heavy Duty Latch Square / Radius Forend

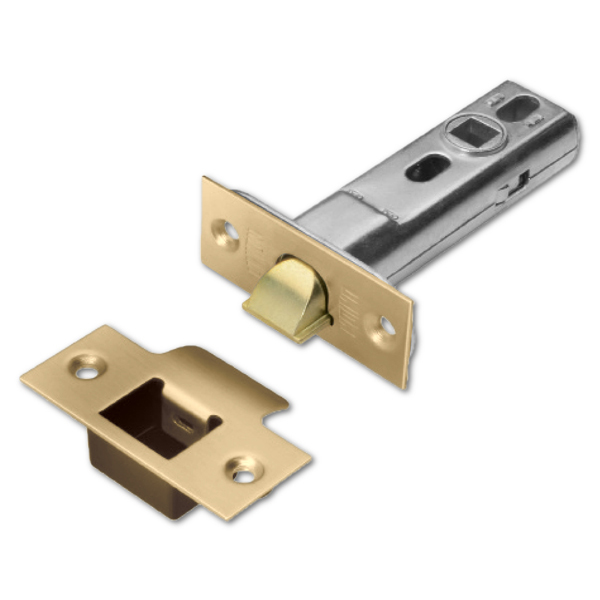

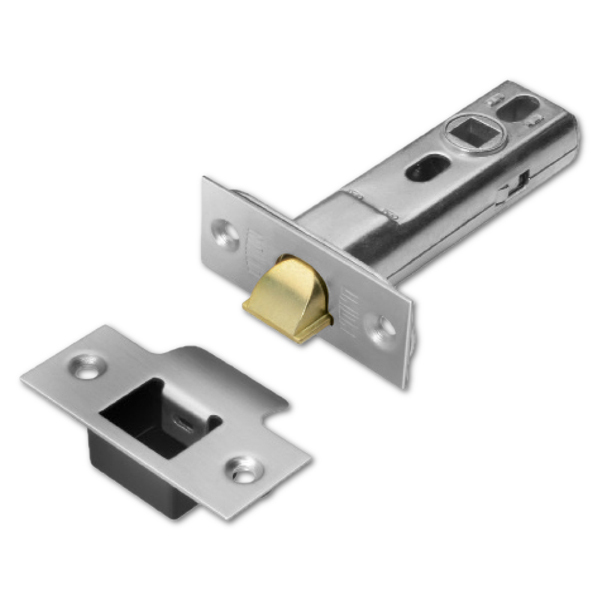

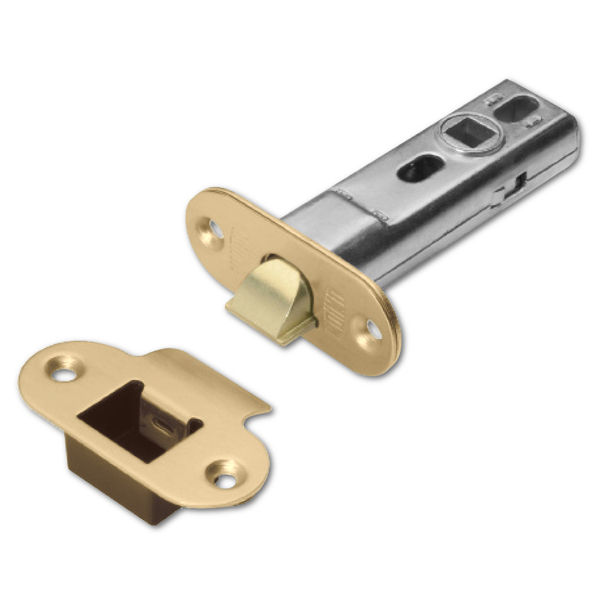

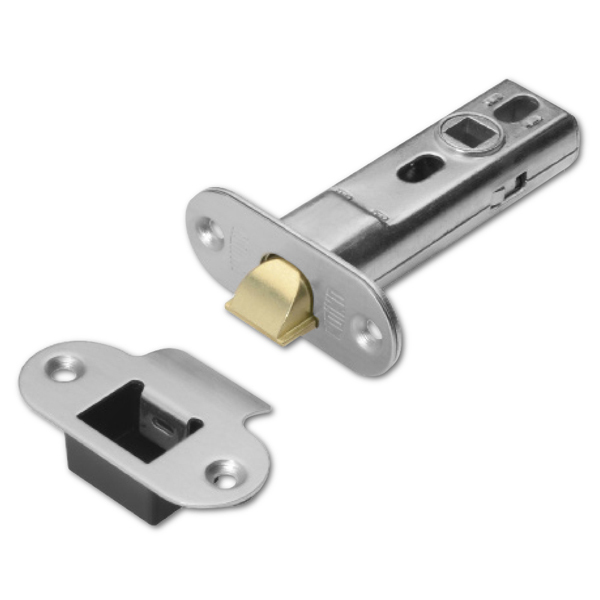

Union HD26 heavy duty tubular latch for left or right hand doors with a choice of brass or stainless finish. Yes that is right, this is the first product that comes in both Brass and Stainless Steel, both stainless steel and polished brass faceplates and strike are supplied, just select the required size that you need and square or radius forend.
The Union HD26 is a heady duty door latch that is designed for commercial doors with high traffic flow and can be fitted to 30 and 60 minute fire doors. The latch is withdrawn by lever handles from either side and thanks to a double sprung latch can also be used with knob furniture. These latches have also been well tested and meet BS EN 12209:2003, EN 1634-1 assessed for use on 30 and 60 minutes timber fire doors and are also CE Marked: EC Certificate 0086-CPR-633283. The latch bolt on these Union latches has a profiled and bevelled surface, this gives the door smooth and positive engagement when closing.
These are some good quality latches from the well know locking brand Union and with low prices can be fitted to any residential or commercial door.
Operation
Latch is withdrawn by levers handles or knob furniture from either side of the door

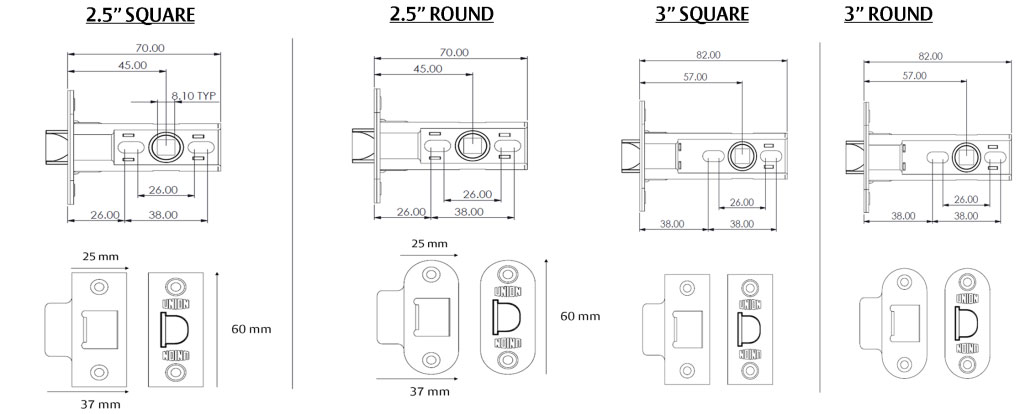

Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
70mm | 70 | 45 | - | 60 | 25 |
82mm | 82 | 57 | - | 60 | 25 |
