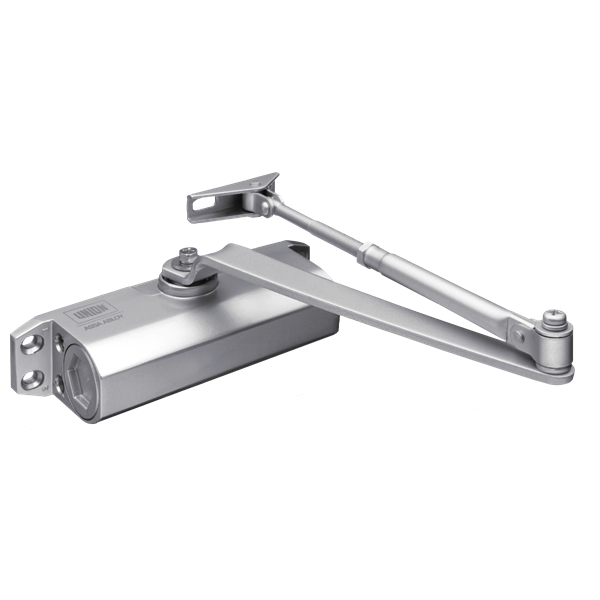

Union CE3F Fixed Size 3 Overhead Door Closer - J-CE3F-SIL Satin Chrome
Union CE3F Overhead door closer a size 3 fixed rack and pinion door closer in a satin chrome finish offering high quality door closing at a low price. The Union CE3F has a stylish satin chrome finish that allows this door closer to fit in with other door furniture. This door closer can be fitted to wooden and metal doors that are hinged on the left or right side, they are also supplied with full fitting instructions and templates.
- Rack and pinion overhead door closer
- Size 3 Fixed
- 950mm maximum door width for this door closer
- Maximum angle of opening - 130°
- Adjustable closing speed between 130° and 15°
- Adjustable latch action for last 15°
- Door Closer can be mounted for regular, transom and parallel arm installation
- Bracket included for parallel arm mounting
Standards
- CE Marked to EN 1154 in all 3 mounting positions
-
3 8 3 1 1 3 - Fire rated for timber (FD120) and metal (FD240) fire doors
- Certifire approved
{youtube}JHzQBpVd184{/youtube}
Fire Tested | 2 Hours Timber & 4 Hours Metal |
---|---|
Adjustable Closing Speed | Yes |
Adjustable Latch Action | Yes |
Finish | Satin Chrome |
Barcode | 5011802269323 |
Brand | Union |
Handed | Reversible |
Manufacturer Reference | J-CE3F-SIL |
Pack Quantity | 1 |
Packaging | Boxed |
Body Depth | 61mm |
Body Height | 42mm |
Body Width | 182mm |
Depth | 42mm |
Length | 245mm |
Max Door Weight | 60kg |
Max Door Width | 950mm |
Opening Angle - Max | 130° |
Screw Centres | 166mm |
Strength Size | 3 |
Weight | 1.66kg |
