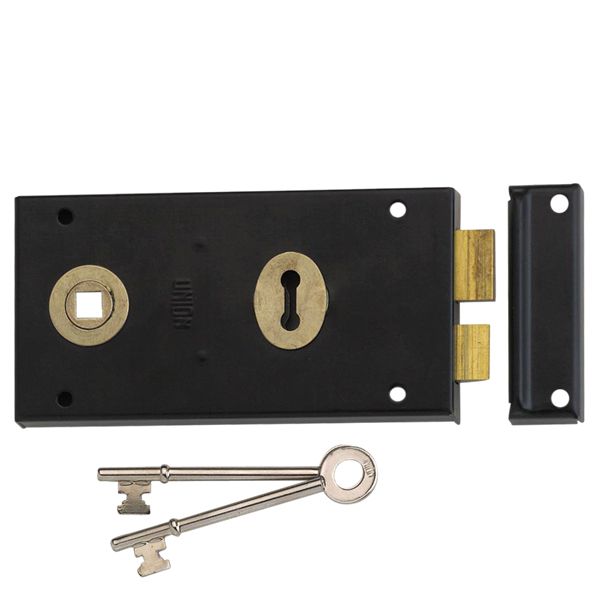

Union 1448 Rim Sash Lock
Union 1448 Rim Sash Lock, for timber doors up to 50mm thick, hinged on the left or right opening inwards only.
Rim Sash Lock from Union Locks, featuring horizontal key hole and spindle for knobs, latch bolt is withdrawn by knobs from either side and locking bolt by key from either side. The union 1448 features a reversible key hole and internal mechanism that accepts key either way allowing lock to be fixed to either side of door.
Mechanism: Nib Ward and Tumbler
Case finish: Black
Case size: 140mm
Follower: 8mm
Keys Supplied: 2
Differs: 10
Handing: Reversible
Operation
Latchbolt is withdrawn by knob from either side. Deadbolt is locked or unlocked by key from either side
Size
Case Width (A)
|
Backset Follower (B)
|
Backset Keyhole (C)
|
Case Height (D)
|
Case Depth (E)
|
Lip Depth (F)
|
|
140mm |
140
|
114
|
51
|
73
|
19
|
8
|
