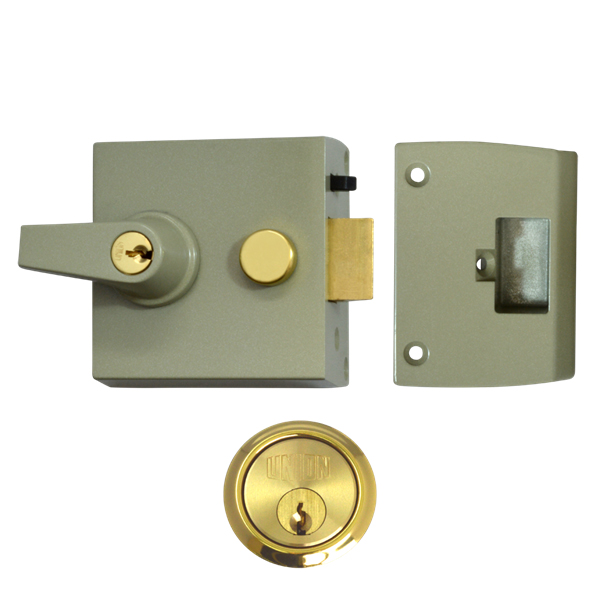

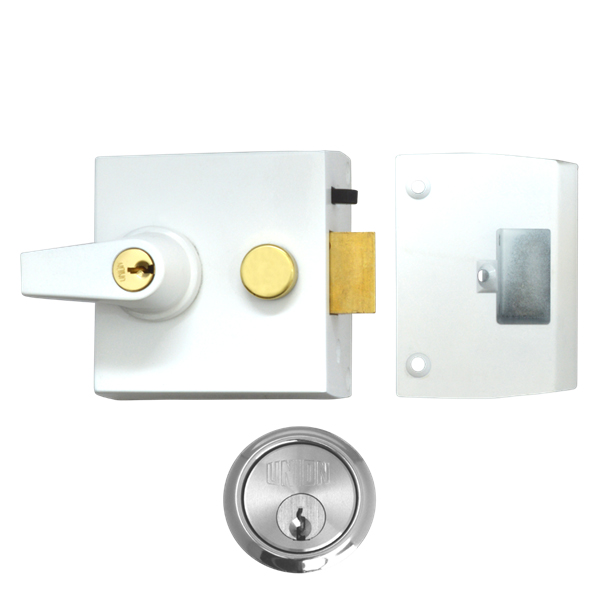

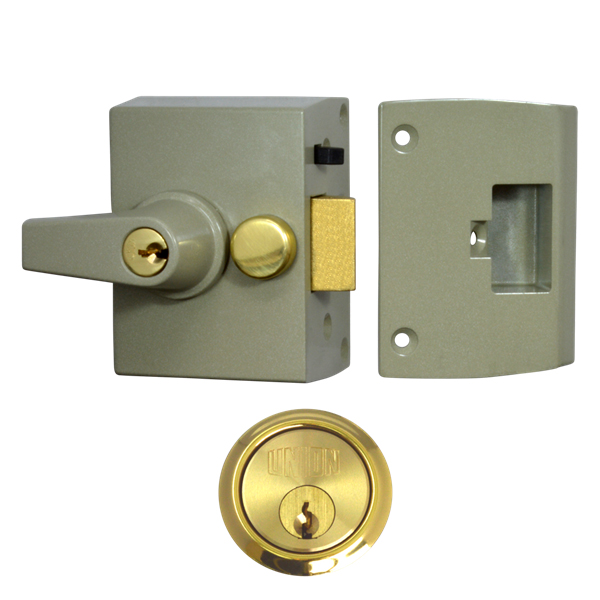

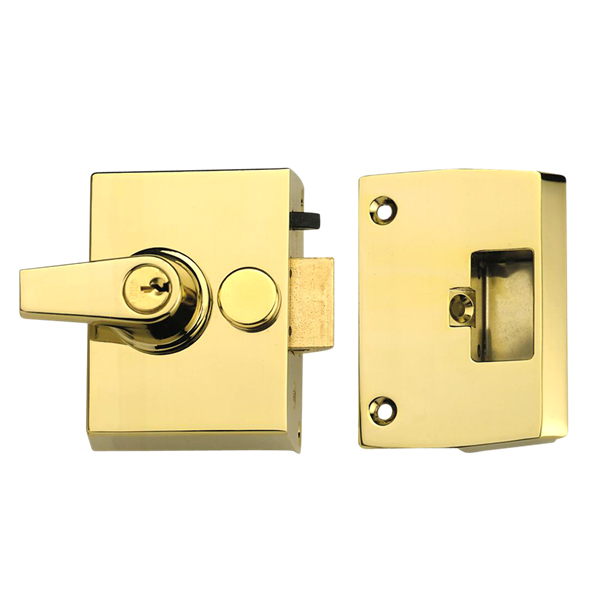

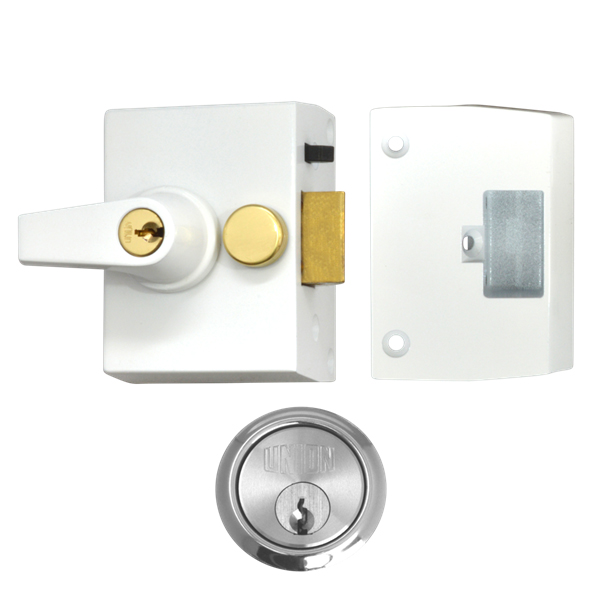

Union 1097 and 1098 Auto Deadlocking Cylinder Nightlatch
Union 1097 and 1098 Auto Deadlocking Cylinder Nightlatch, for timber doors from 35 to 60mm thick, hinged on the left or right and opening inwards only. Suitable for glass panelled doors and designed for applications requiring an internal locking handle, supplied with concealed fixing.
Mechanism: 5 Pin Cylinder
Cylinder finish: Brass and Satin Chrome
Case size: 60 and 92mm
Case finish: Brass, White or Champagne
Keys Supplied: 3
Keyed Alike: No
Master Keyed: No
Differs: 15000
Door thickness: 35 - 60mm
Operation:
Features
Automatically deadlocks when door is in the closed position. Particularly suitable for glass panel doors.
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Handle can be deadlocked by key from outside. Bolt can be held back by the use of the thumb button.
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
1097 - 65mm |
65
|
40
|
88
|
29
|
28
|
1098 - 85mm |
85
|
60
|
88
|
29
|
28
|
