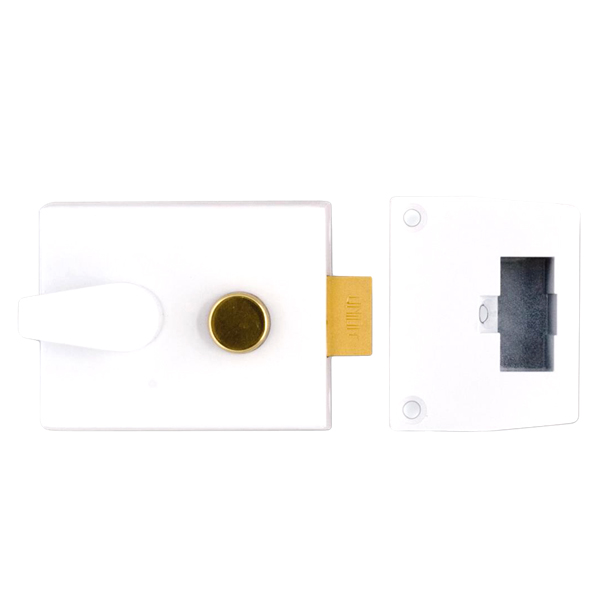

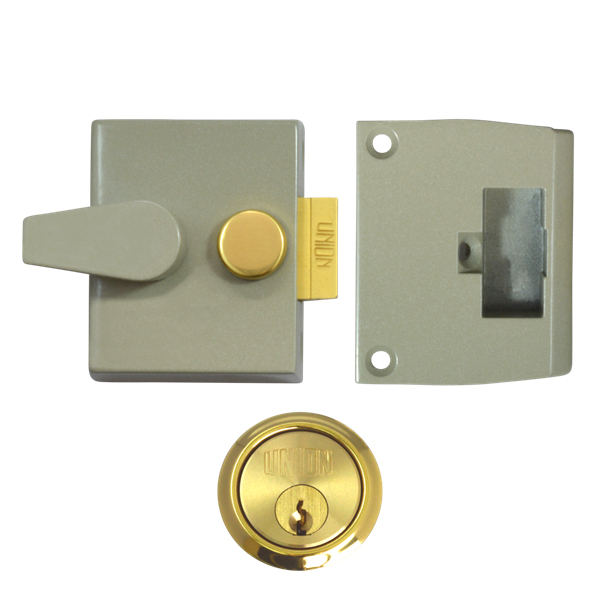

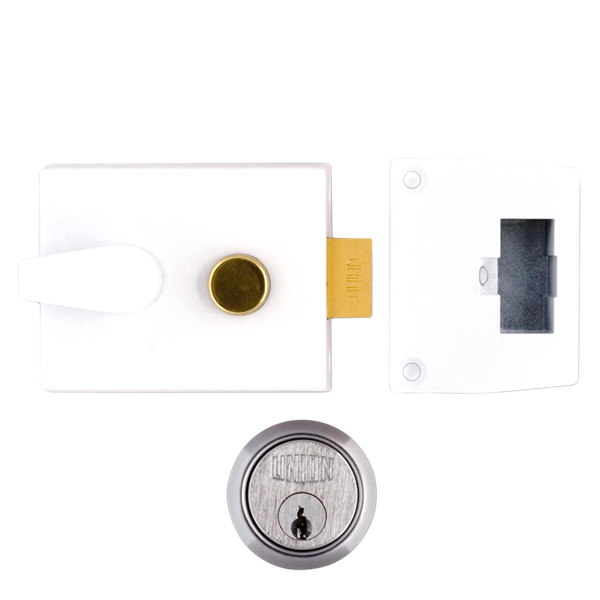

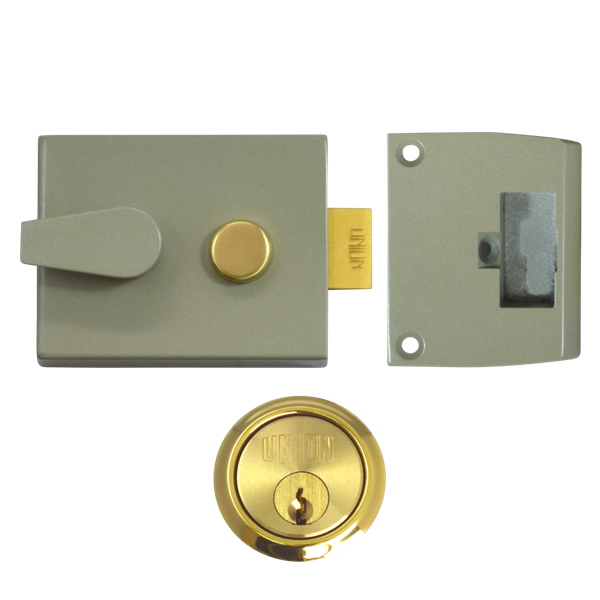

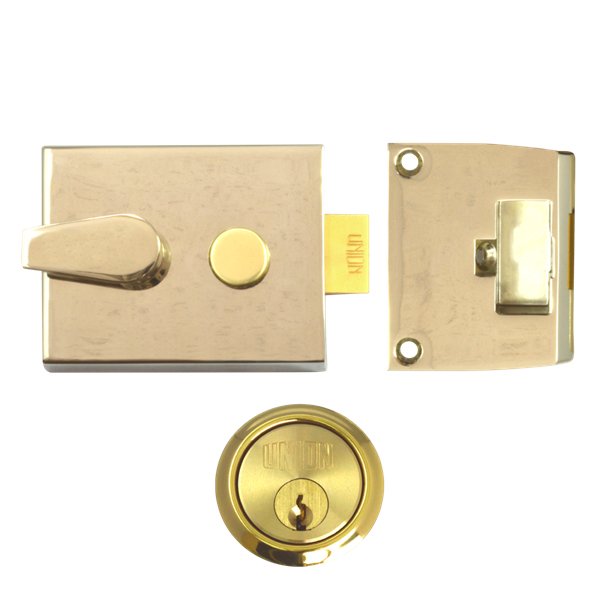

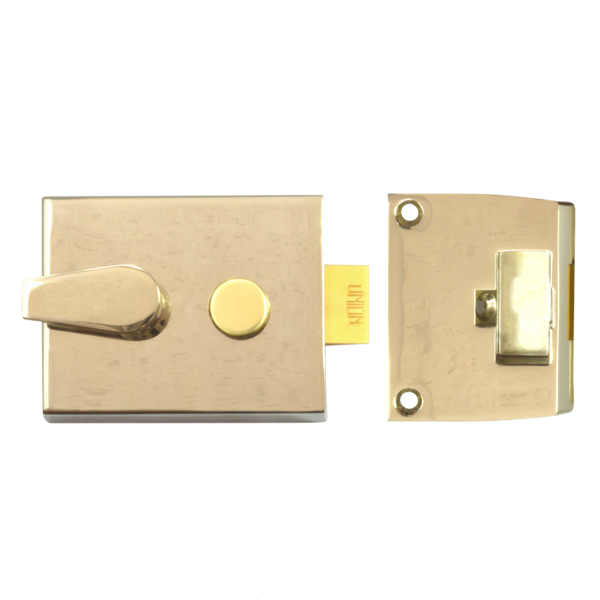

Union 1047 and 1048 Deadlocking Cylinder Nightlatch
Union 1047 and 1048 Deadlocking Cylinder Nightlatch, for timber doors from 35 to 60mm thick, hinged on the left or right and opening inwards only. Suitable for glass panelled doors but not recommended for single door entry residencies supplied with concealed fixing.
Mechanism: 5 Pin cylinder
Cylinder finish: Brass and Satin Chrome
Case size: 60 and 92mm
Case finish: Brass, White and Champagne
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Differs: 15000
Door thickness: 35 - 60mm
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Bolt and handle can be deadlocked by key from outside or by thumb turn button inside. Thumb turn also operated latch holdback facility
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
1047 - 60mm |
60
|
40
|
74
|
26
|
20
|
1048 - 92mm |
92
|
60
|
74
|
26
|
20
|
