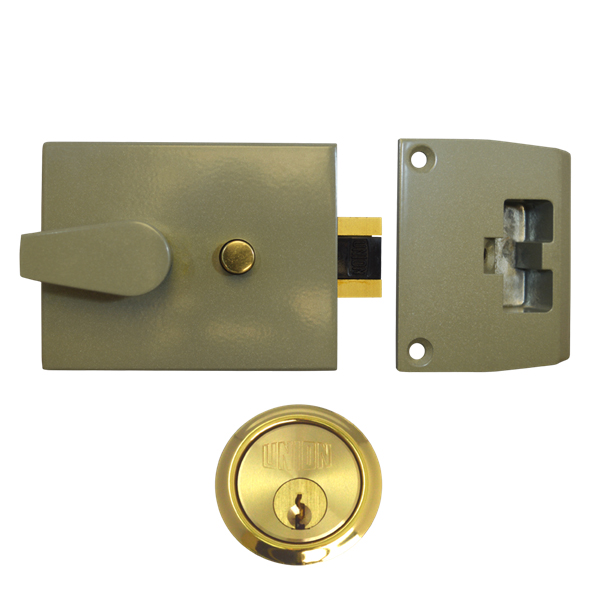

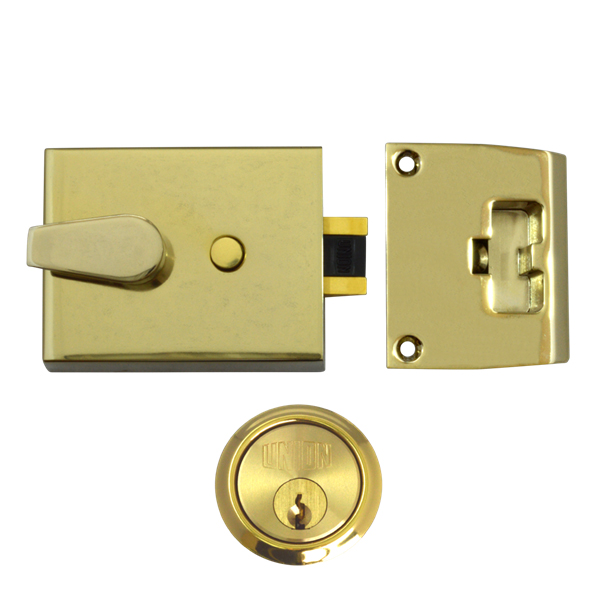

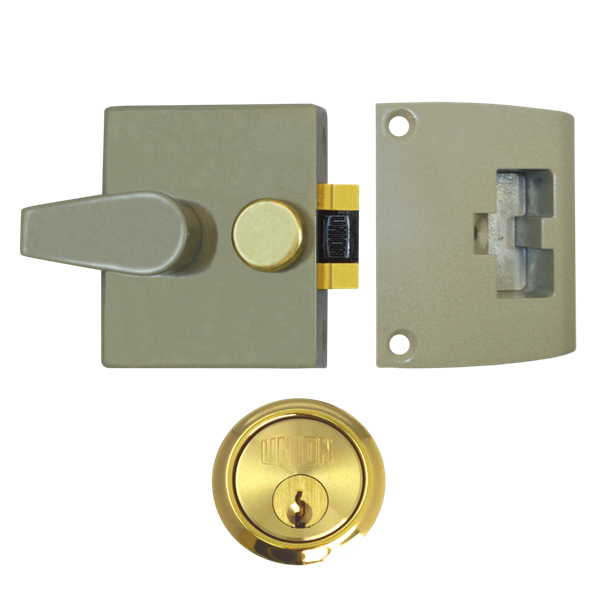

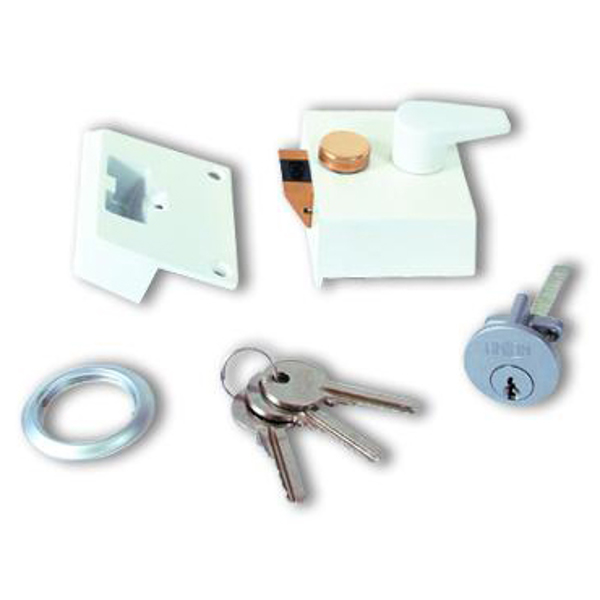

Union 1037 and 1038 Auto Deadlocking Cylinder Nightlatch
Union 1037 and 1038 Auto Deadlocking Cylinder Nightlatch, for timber doors from 35 to 60mm thick, hinged on the left or right and opening inwards only. Suitable for glass panelled doors but not recommended for single door entry residencies, supplied with Concealed fixing.
Mechanism: Supplied case only
Case size: 60 and 92mm
Case finish: White
Keys Supplied: 3
Door thickness: 35 - 60mm
Features
Automatically deadlocks when door is in the closed position.
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Handle can be deadlocked by key from outside. Bolt can be held back by the use of the thumb button.
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
1037 - 60mm |
60
|
40
|
74
|
26
|
20
|
1038 - 92mm |
92
|
60
|
74
|
26
|
20
|
