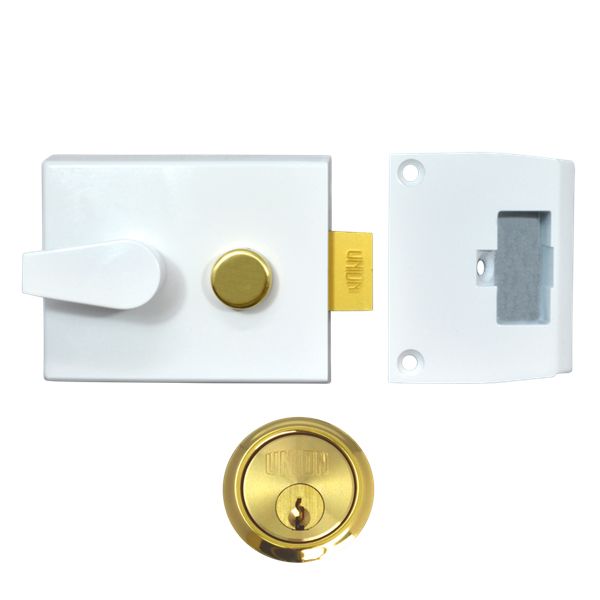

Union 1027 and 1028 Cylinder Nightlatch

Union 1027 and 1028 Cylinder Nightlatch, for timber doors from 35 to 60mm thick, hinged on the left or right and opening inwards only supplied with concealed fixing.
Mechanism: 5 Pin Cylinder
Cylinder finish: Brass and Satin Chrome
Case size: 60 and 92mm
Case finish: Brass, White and Champagne
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Differs: 15000
Door thickness: 35 - 60mm
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Bolt can be deadlocked or held back by thumb button from inside
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
1027 - 60mm |
60
|
40
|
74
|
26
|
20
|
1028 - 60mm |
92
|
60
|
74
|
26
|
20
|
