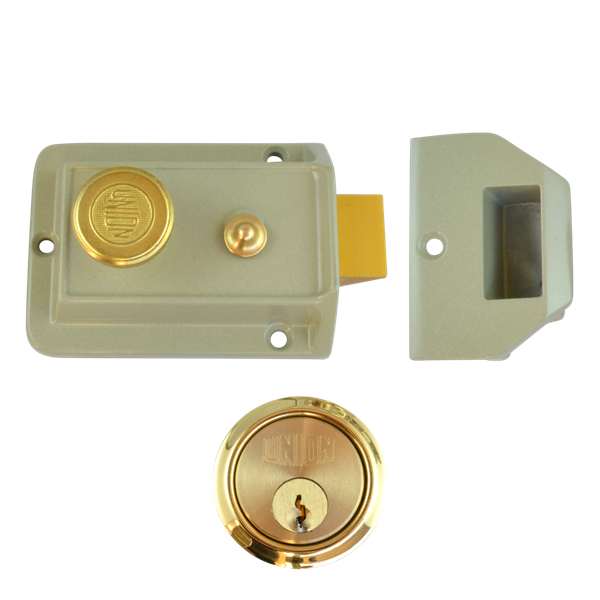

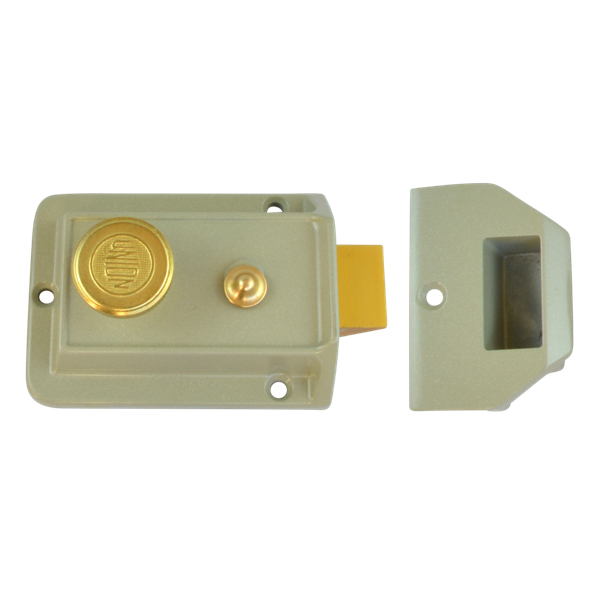

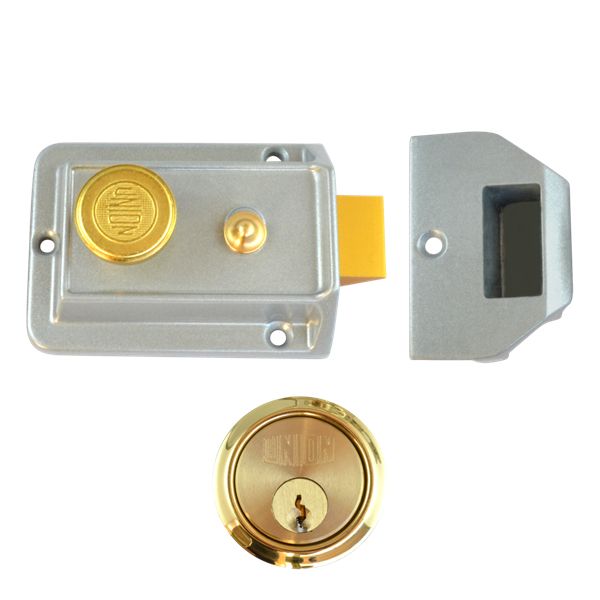

Union 1022 Cylinder Nightlatch
Union 1022 Cylinder Nightlatch rim door lock, for timber doors from 35 to 60mm thick, hinged on the left or right and opening inwards only. Not recommended for glass panelled doors. This traditional night latch lock can be used to lock and hold closed internal doors, bolt is withdrawn by key outside and knob inside, bolt may be held in the locked or in the withdrawn position by operating the snib
Mechanism: 5 Pin Cylinder
Cylinder finish: Brass and Satin Chrome
Case size: 93mm
Case finish: Silver and Champagne
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: Yes email for details
Differs: 15000
Door thickness: 35 - 60mm
Operation
Latchbolt is withdrawn by handle from inside and key from outside. Bolt can be deadlocked or held back by snib from inside
Size
Case Width (A)
|
Backset (B)
|
Case Height (C)
|
Case Depth (D)
|
Handle Projection (E)
|
|
93mm |
93
|
60
|
68
|
23
|
17
|
