Paxton 901 Wireless PaxLock for Net2
Paxton 901 Wireless slim line door lock with battery power. The Paxlock can be supplied with or without key override option, this is achieved by euro cylinder (not supplied), the slimline door lock is available in two sizes, with centres of 48mm or 72mm. These door lock are controlled via the central Paxton PC via a wireless connection, with battery power these access control door locks can be used on buildings with now network access or mains power.

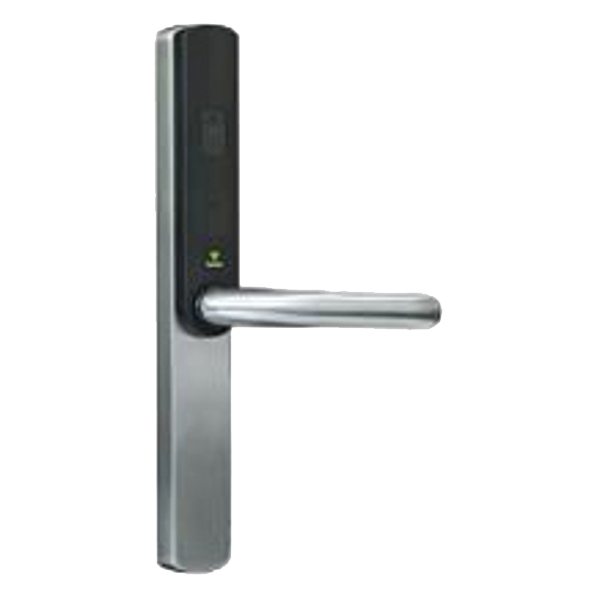

901-110 - No Key Override

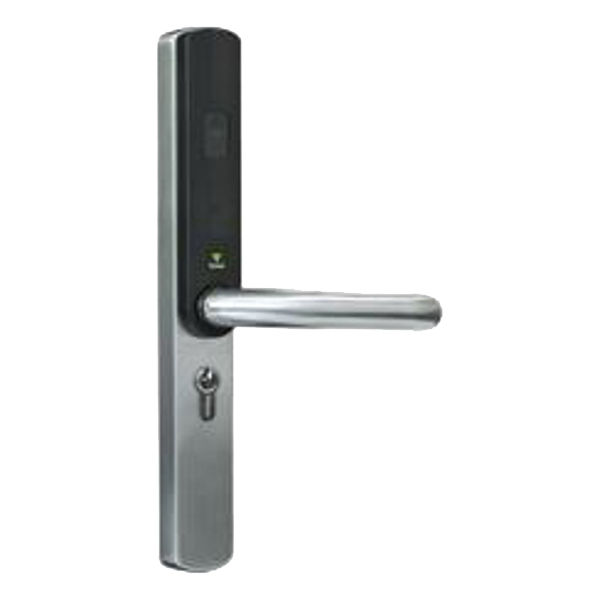

901-148 - Key Override 48mm

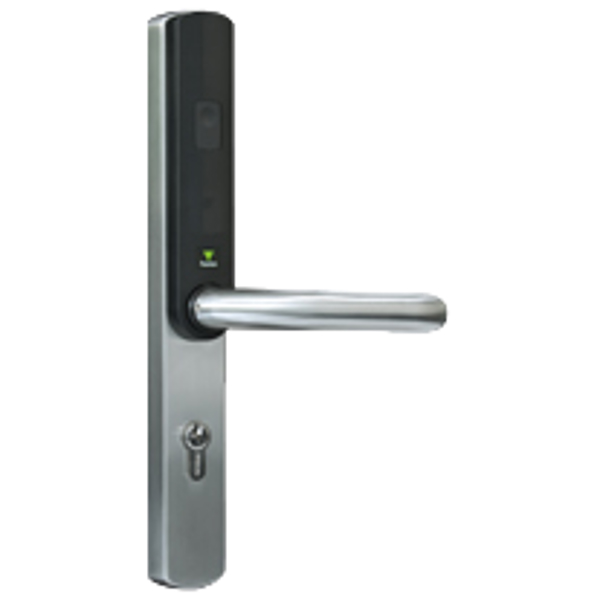

901-172 - Key Override 72mm
- Wireless, battery powered Net2 access control
- Simple door handle solution that can be fitted in minutes
- Events are reported back to the Net2 server in real time
- Full battery management system with low battery alerts and easy-change AA batteries
- Euro profile lock case compatibility
- MIFARE® and Net2 proximity versions
- Key override option
Specifications - Net2 PaxLock - No key override | |||||
min | typ | max | units | ||
System Specification | |||||
Max number of ACUs per system | 1000 | ||||
Number of tokens | 10000 | ||||
Access levels | 250 | ||||
Time zones | 64 | ||||
Door open time | 1 | 3 | 60 | ||
Number of events stored on ACU | 3584 | ||||
Read range: Token/ISO card | 20 | mm | |||
Read range: Keyfob | 5 | mm | |||
Battery type | 4 x AA | ||||
Battery life (low power mode) | 60000 | operations | |||
3 | years | ||||
Communication | |||||
Carrier frequency | 2.4 | GHz | |||
Max recommended ACUs per bridge | 10 | ||||
Max USB bridges per system | 1 | ||||
Max Ethernet bridges per system | 200 | ||||
Net2Air wireless range | 3 | 20 | m | ||
Environment | |||||
Operating temperature | 0 | 55 | °C | ||
Moisture resistance | No | ||||
Vandal resistance | Low | ||||
Fire resistance | |||||
EN1634-1:2008 FD30 and FD60 | |||||
Dimensions - Base unit | |||||
Width | 40 | mm | |||
Height | 324 | mm | |||
Depth | 35 | mm | |||
Door thickness supported | 35 | 60 | mm | ||
Handle rotation | 35 | degrees | |||
Backset | 35 | mm | |||
Dimensions - Includes handle clearance | |||||
Width | 160 | mm | |||
Height | 324 | mm | |||
Depth | 100 | mm | |||
Specifications - Net2 PaxLock - 48mm Euro | |||||
min | typ | max | units | ||
System Specification | |||||
Max number of ACUs per system | 1000 | ||||
Number of tokens | 10000 | ||||
Access levels | 250 | ||||
Time zones | 64 | ||||
Door open time | 1 | 3 | 60 | ||
Number of events stored on ACU | 3584 | ||||
Battery type | 4 x AA | ||||
Communication | |||||
Carrier frequency | 2.4 | GHz | |||
Max recommended ACUs per bridge | 10 | ||||
Max USB bridges per system | 1 | ||||
Max Ethernet bridges per system | 200 | ||||
Net2Air wireless range | 3 | 20 | m | ||
Environment | |||||
Operating temperature | 0 | 55 | °C | ||
Moisture resistance | No | ||||
Vandal resistance | Low | ||||
Fire resistance | |||||
EN1634-1:2008 FD30 and FD60 | |||||
Dimensions - Base unit | |||||
Width | 40 | mm | |||
Height | 324 | mm | |||
Depth | 35 | mm | |||
Door thickness supported | 35 | 60 | mm | ||
Handle rotation | 35 | degrees | |||
Backset | 35 | mm | |||
Dimensions - Includes handle clearance | |||||
Width | 160 | mm | |||
Height | 324 | mm | |||
Depth | 100 | mm | |||
|
|||||
Specifications - Net2 PaxLock - 72mm Euro | |||||
min | typ | max | units | ||
System Specification | |||||
Max number of ACUs per system | 1000 | ||||
Number of tokens | 10000 | ||||
Access levels | 250 | ||||
Time zones | 64 | ||||
Door open time | 1 | 3 | 60 | ||
Number of events stored on ACU | 3584 | ||||
Battery type | 4 x AA | ||||
Communication | |||||
Carrier frequency | 2.4 | GHz | |||
Max recommended ACUs per bridge | 10 | ||||
Max USB bridges per system | 1 | ||||
Max Ethernet bridges per system | 200 | ||||
Net2Air wireless range | 3 | 20 | m | ||
Environment | |||||
Operating temperature | 0 | 55 | °C | ||
Moisture resistance | No | ||||
Vandal resistance | Low | ||||
Fire resistance |
