Legge 3751 Bathroom lock

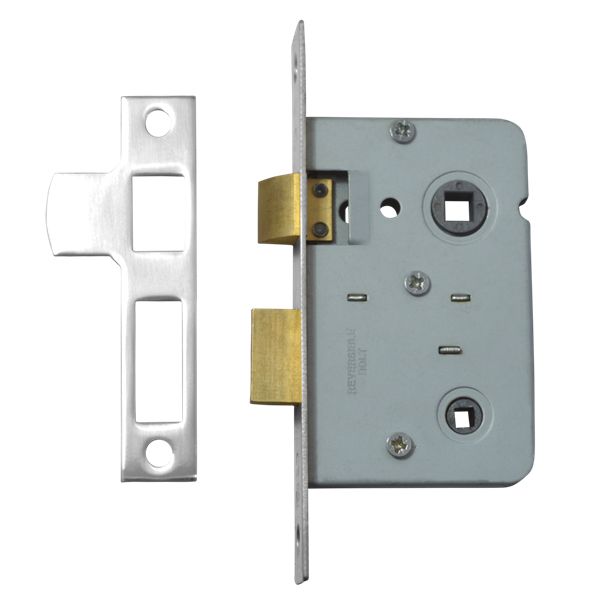

Legge 3751 Bathroom lock 64mm Nickel plated
Legge 3751 Bathroom Mortice lock use to secure toilet and bathroom doors by the use of a simple turn (not supplied). This simple bathroom lock for Legge has a latch bolt that holds the door closed then a simple turn to operate bolt to lock the door. The 3751 bathroom lock can be used on left or right hand doors thanks to a reversible latch bolt. The latch bolt is withdrawn by lever handles from either side and the locking bolt is locked and unlocked by simple turn, both of these items are not supplied.
Case size: 64mm and 76mm
Follower: 8mm Latch - 5mm Dead
Case finish: Grey
Forend finish: Brass and Nickel plated
Operation
Deadbolt is locked or unlocked by turn from the inside (not supplied). Reversible latchbolt withdrawn by lever handle from either side
Size
|
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
| 64mm |
64
|
44
|
102
|
57
|
152
|
22
|
| 76mm |
76
|
57
|
102
|
57
|
152
|
22
|
