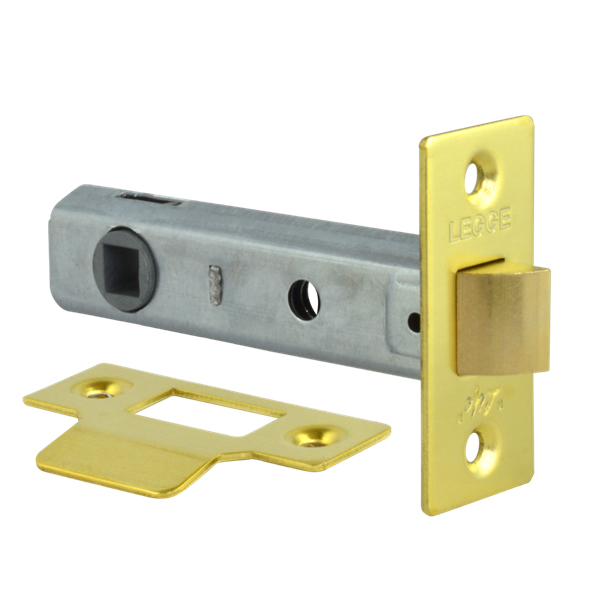

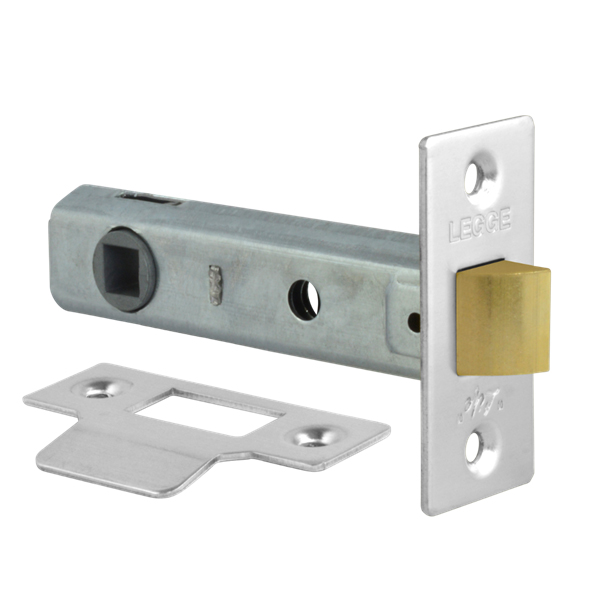

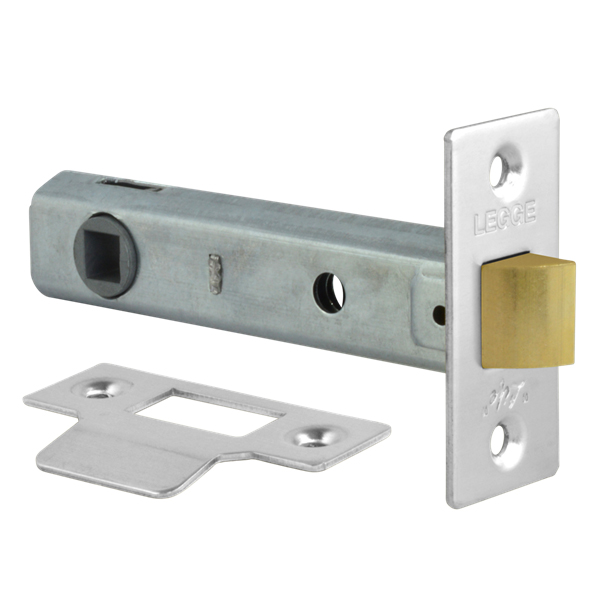

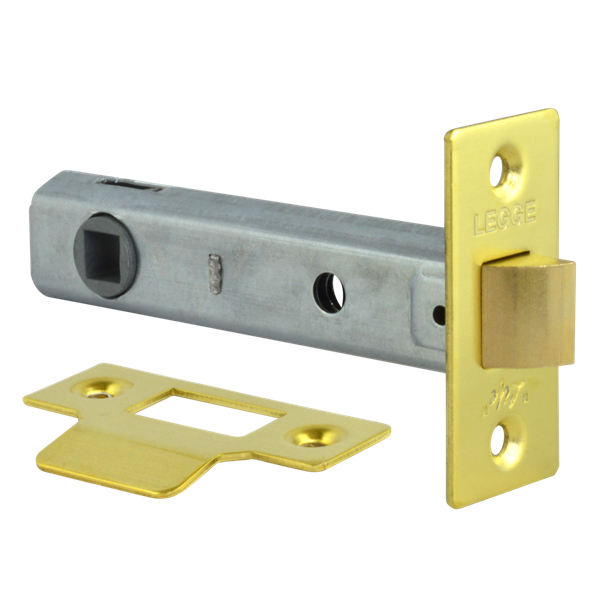

Legge 3722LK and 3724LK Tubular latch
Legge 3722LK and 3724LK Tubular latch for internal doors that need to be held closed, these latches do not provide any security for the door, this can be achieved with other locks. These Legge latches can be fitted to left or right hand doors, the latch bolt is retracted by lever handles from either side of the door.
Legge 3722LK and 3724LK, when fitted with Legge No.14 turn can be locked
Case size: 79 and 95mm
Follower: 8mm
Case finish: Zinc plated
Forend finish: Brass and Nickel plated
Operation
Latchbolt withdrawn by lever handle from either side, can be used with unsprung levers
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
3722lk - 79mm |
79
|
60
|
22
|
57
|
25
|
3724 - 95mm |
95
|
76
|
22
|
57
|
25
|
