Legge 3721 & 3722 Tubular latch

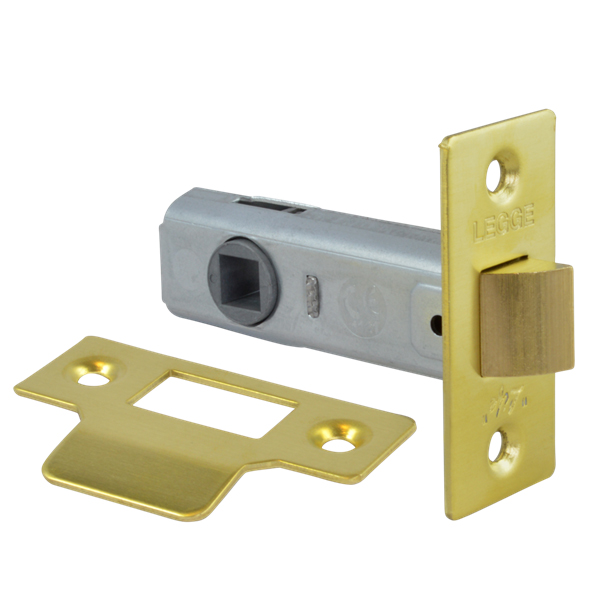

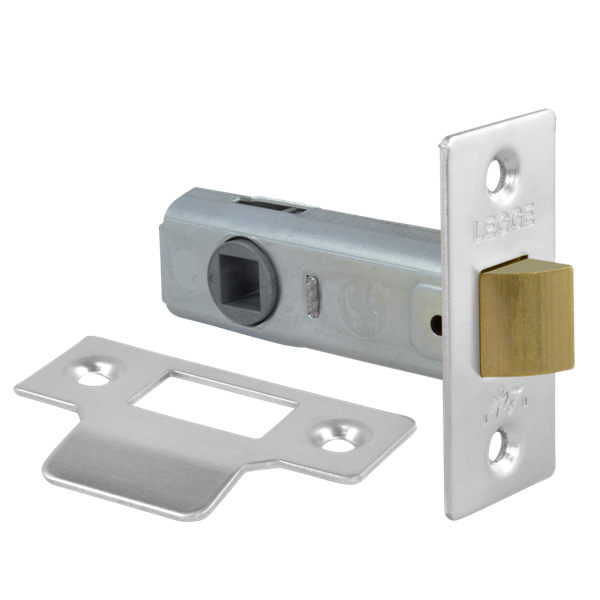

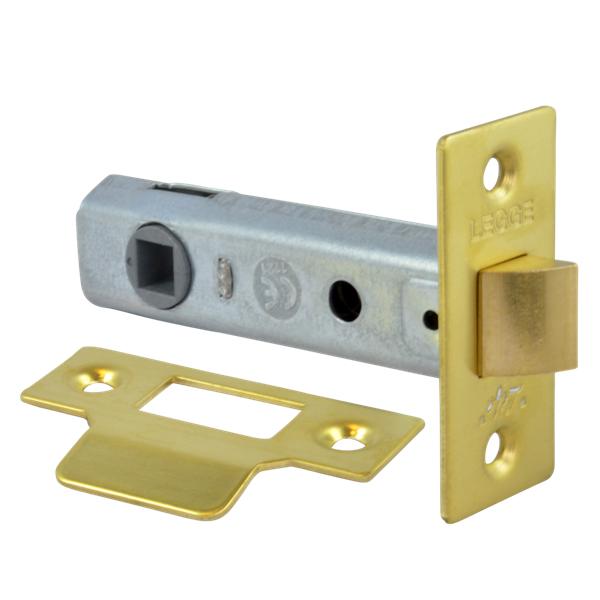

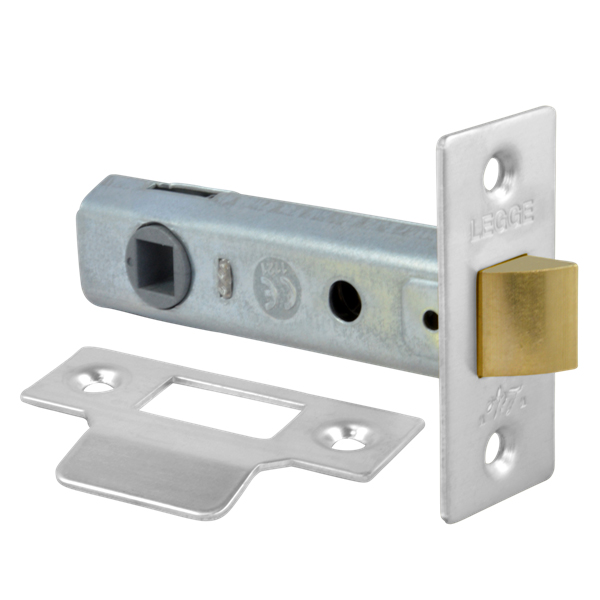

Legge 3721 & 3722 Tubular latch with cases sizes of 64mm and 79mm and Brass or Nickel Plated finishes. These legge tubular latches can be fitted to left or right hand opening doors and are best suited to internal doors. The latch bolt will hold the door in the closed position and can be withdrawn by lever handles with an 8mm spindle from either side of the door
Case size: 64mm and 79mm
Follower: 8mm
Case finish: Zinc plated
Forend finish: Brass and Nickel plated
Operation
Latchbolt withdrawn by lever handle from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
3721 - 64mm |
64
|
44
|
22
|
57
|
25
|
3722 - 79mm |
79
|
60
|
22
|
57
|
25
|
