KABA Simplex 7100 Series Small Push Button Digital Door Lock
KABA Simplex 7100 Series push button small digital door lock with optional locking bolts. The 7100 from KABA can be supplied with either a tubular deadbolt, deadlocking latch or deadlocking rim latch. All latch types apart from tubular deadbolt will automatically relock when door is closed, tubular deadbolt requires a manual lock.
Outside Operation: Code entry to activate thumb turn
Inside Operation: Thumb turn to exit at any time
Possible Combinations: 1000+
Code Length: 1 to 5 digits
Holdback: Only on 7106 version
Latch: Supplied with either tubular dead latch, deadlocking latch or rim latch
Weather Resistant: Yes, can be used outside
Finish: Satin Chrome
Features
Easy access control for a single door, simple 5 digit key pad, easy to program without removing lock from door
Operation
Code is entered into keypad from outside, thumb-turn is then used to open door. Internal thumb-turn is used to exit at any time.
Size
Backset: 60-70mm
Case Height: 165mm
Case Width: 64mm

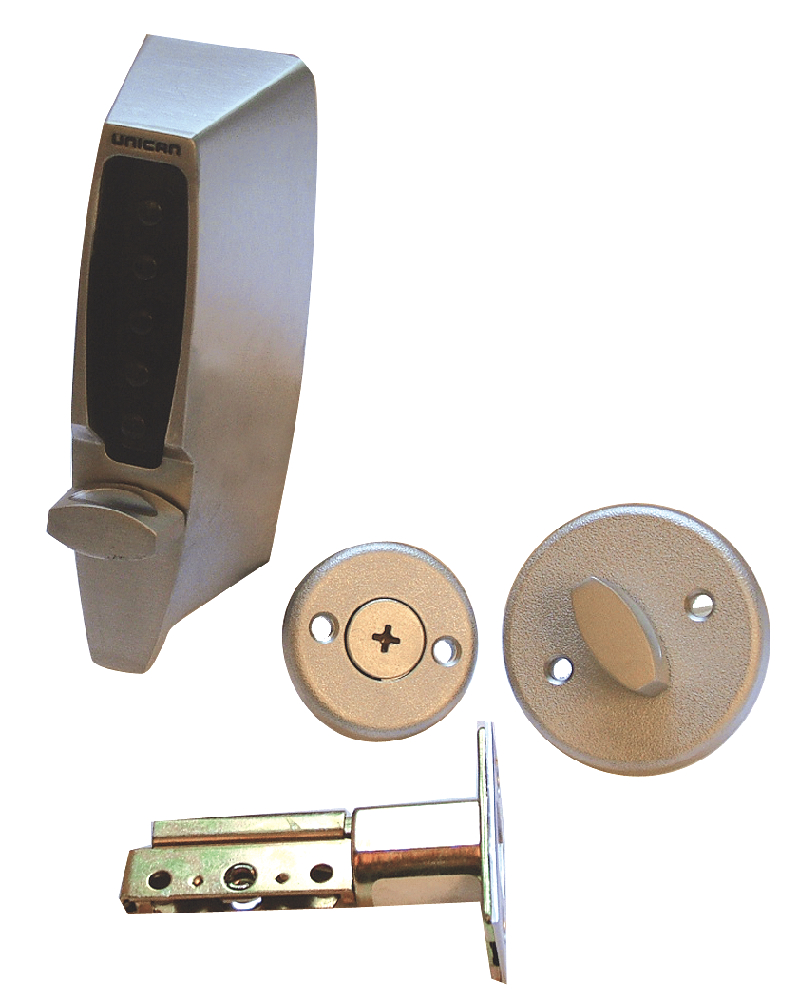

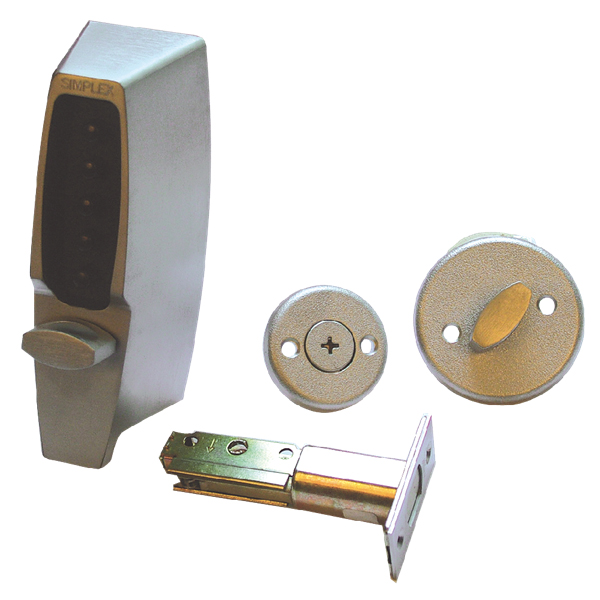

KABA Simplex 7102 Digital Lock with Deadbolt 60mm Backset Satin Chrome

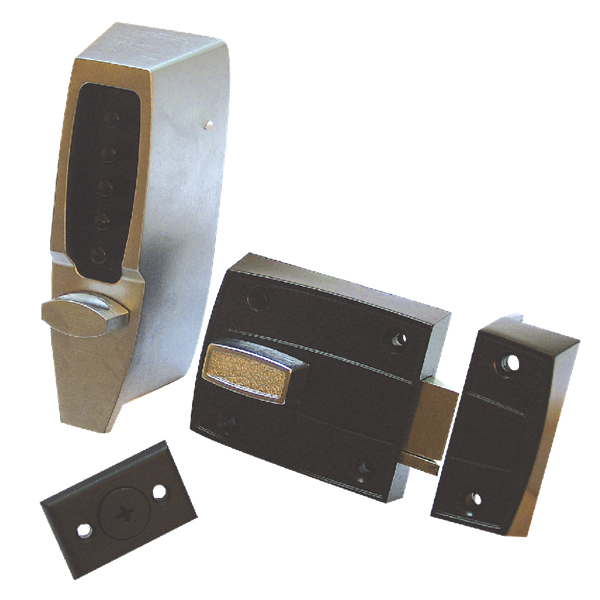

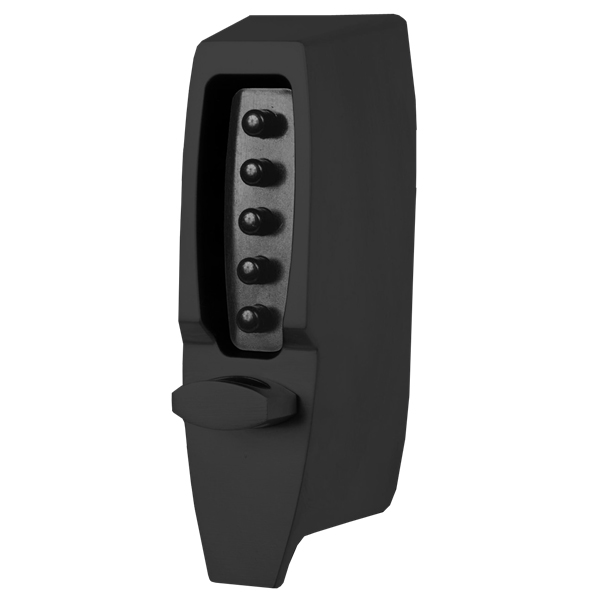

KABA Simplex 7106 Digital Lock with Rim Dead Latch Black
KABA Simplex 7106 Digital Lock with Rim Dead Latch Satin Chrome

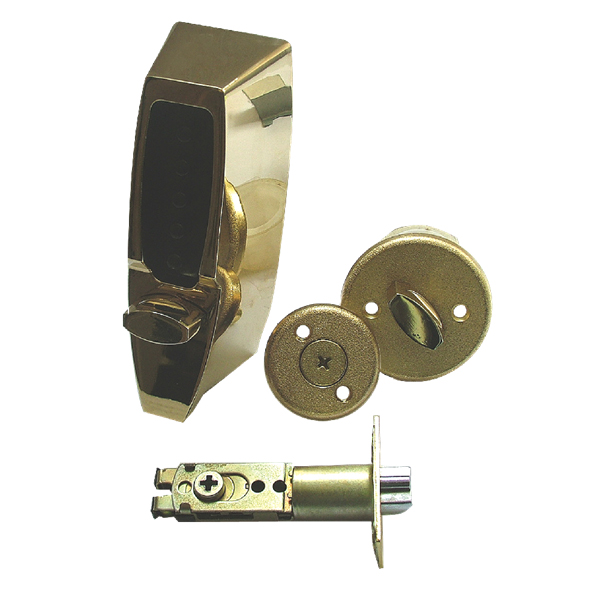

KABA Simplex 7104 Digital Lock with Deadlocking Latch Brass
KABA Simplex 7104 Digital Lock with Deadlocking Latch Satin Chrome
KABA Simplex 7102 Digital Lock with Deadbolt 70mm Satin Chrome
