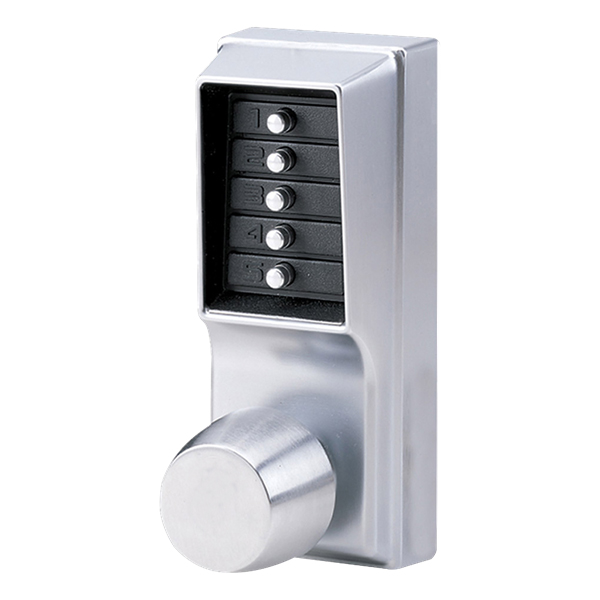

KABA Simplex 1000 Series Knob Operated Digital Door Lock
Kaba mechanical push button door lock for their 1000 series, offering low cost access control solutions for single doors. The 1000 series from KABA Simplex is a heavy duty push button door lock that can be used in high traffic locations and incorporated features such as key override and passage functions, these range of digital door locks is available in Brass or Satin Chrome.
Outside Operation: Knob turn to open door after code has been entered
Inside Operation: Knob to exit at any time
Possible Combinations: 1000+
Code Length: 1 to 5 digits
Holdback: Yes passage feature on 1031
Latch: Heavy duty mortice dead-latch supplied with 70mm backset
Weather Resistant: Yes, can be used outside
Finish: Satin Chrome or Brass
Features
Vandal resistant solid metal push buttons, Cast Knobs, reversible latch for left or right hand doors, 13mm latch throw.
Operation
Code is entered into keypad on outside to enter via knob turn, knob turn is used from inside to open door at any time
Size
Backset: 70mm
Case Height: 187mm
Case Width: 79mm
