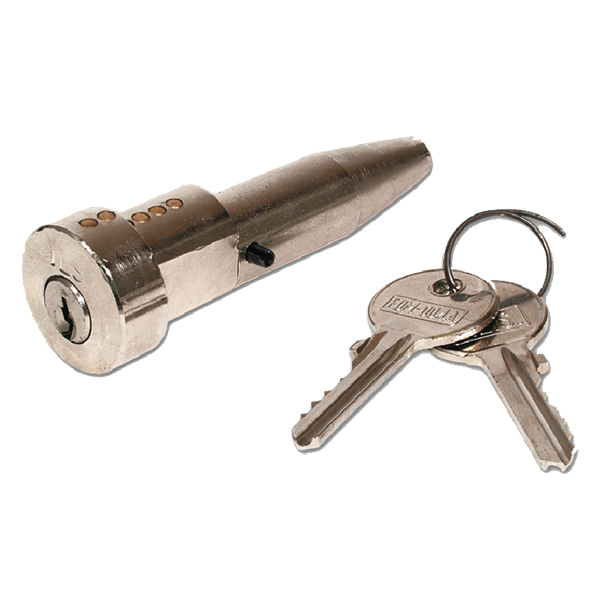

ILS FDM004 Round Bullet Cylinder Lock

ILS FDM004 Round Bullet Cylinder Lock

These round Bullet locks come with an overall length of 82mm and a pin length of 53mm. They come supplied keyed alike with 2 keys per bullet lock.They have a Split pin located behind the lock. The barrel is rotated, allowing the lock to be inserted or removed from the housing. When the bullet lock is in the housing the pin is passed through the back of housing, shutter runner and shutter door, locking all parts together and restricting movement. Made by ILS avaialble in a Chrome finish.

Cylinder Finish: Chrome

Cylinder Diameter: 25mm

Pin Length: 53mm

Body Length: 29mm

Overall Length: 82mm

Keys Supplied: 2

Keyed Alike: Yes

Features

ILS 004 Round Cylinder Bullet Locks stocked keyed alike. Key removable in locked position only.

Operation

A split pin located behind the cylinder barrel is rotated by a turn of the key, allowing the bullet to be inserted or withdrawn from the housing.
