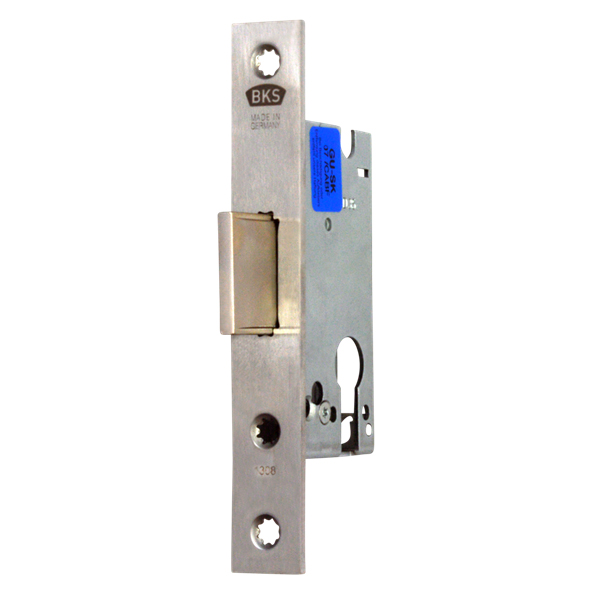

GU Narrow Stile Dead Lock Case for Single Lead Doors - B 1308
With its innovotive modular design, lock series 13 is a versatile product in that it allows for many applications on narrow style (aluminium and PVC) door systems. This BKS mortice deadlock is a durable and hard-wearing product, suitable for fire and smoke protection doors. It has a 35mm backset, 92mm centres and has CE approval in accordance with EN 12209. This deadlock is operated by a euro cylinder, however the cylinder is not included with this product.
Standards | CE BS EN 12209 |
Packaging | Boxed |
Centres | 92mm |
Case Width | 15.5mm |
Bolt Throw | 20mm |
Backset | 35mm |
Mechanism | Euro Cylinder (not included) |
Brand | GU |
Handed | Reversible |
1308 0003 - Flat Faceplate - 5055120758749
1308 0023 - U-Rail Faceplate - 5055120758756
Features:
- Complies to CE EN12209 standards
- Suitable for fire & smoke protection doors
- Lock case thickness of only 15.5 mm
- 20mm deadbolt throw
- Cylinder not included
- Narrow Style
- Reversible Handing
