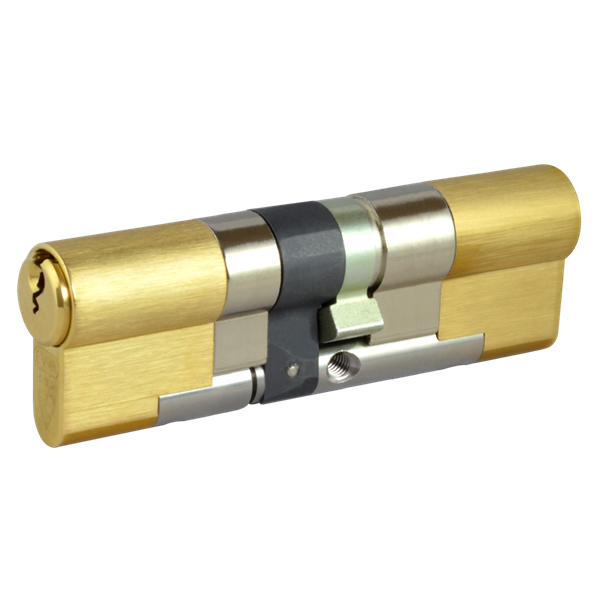

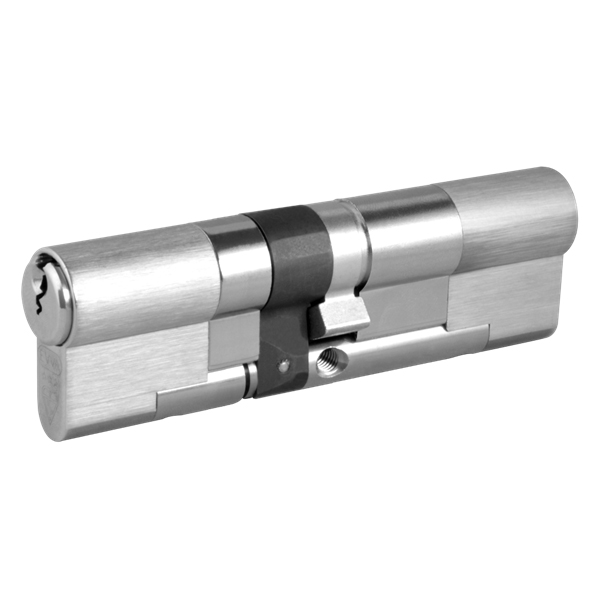

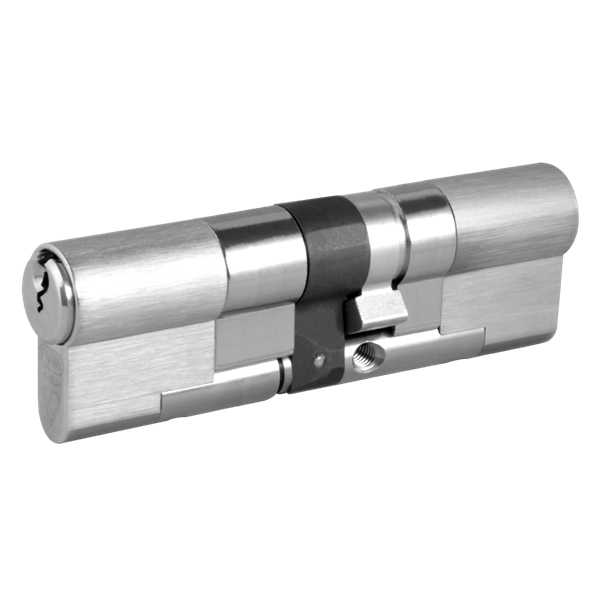

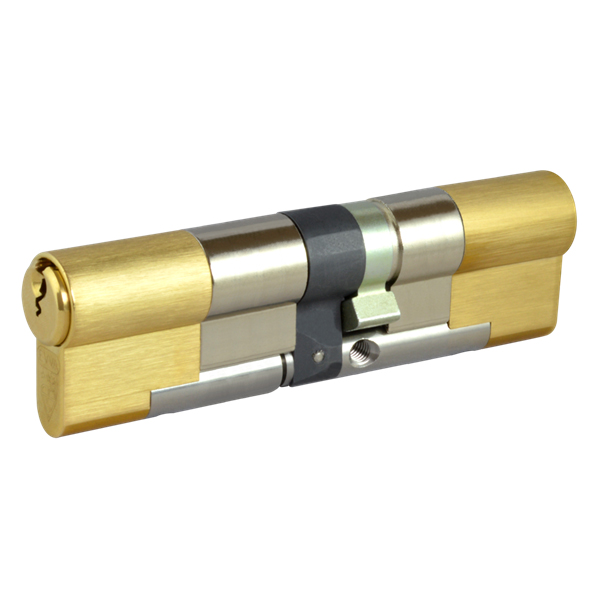

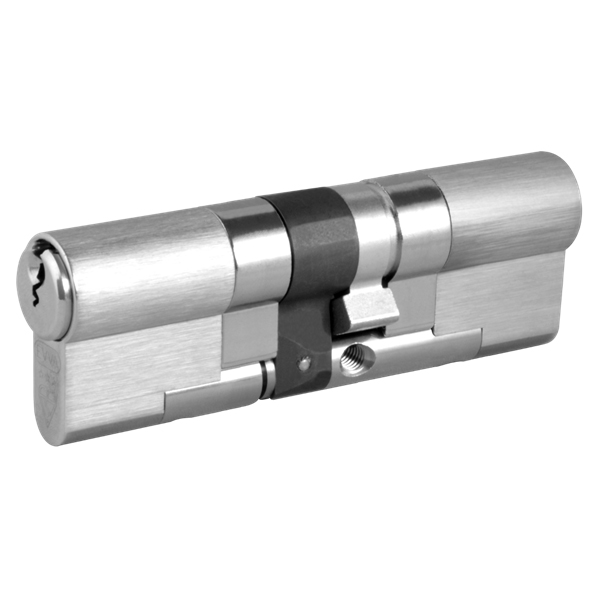

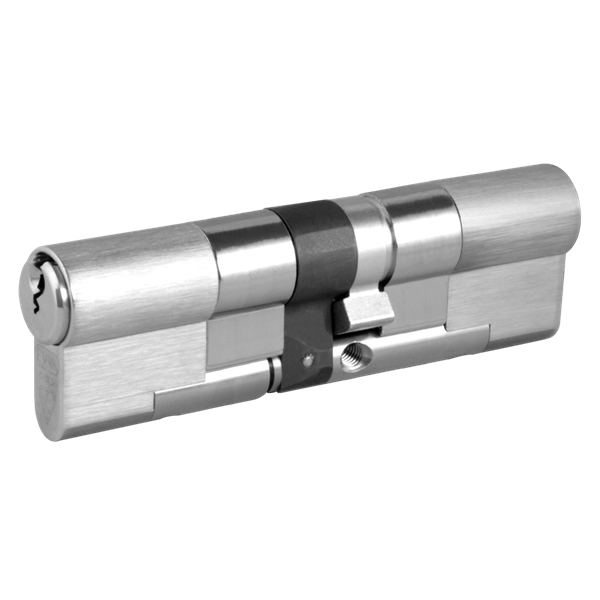

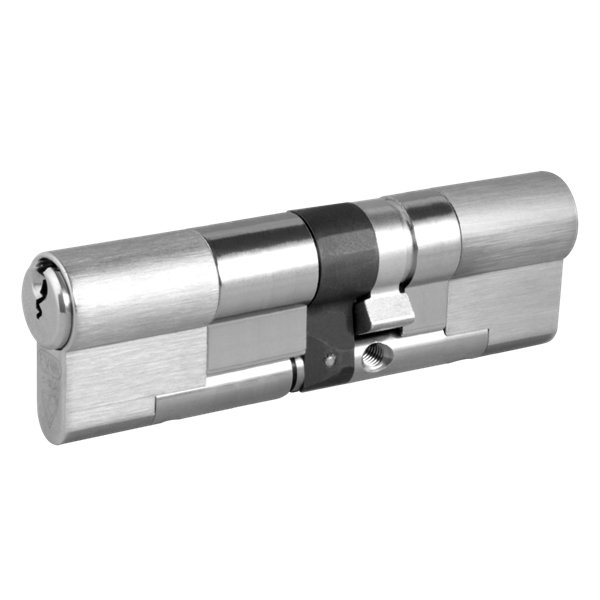

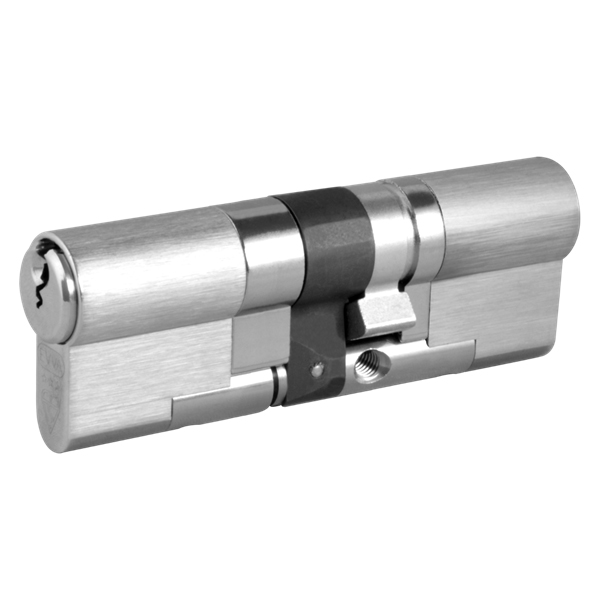

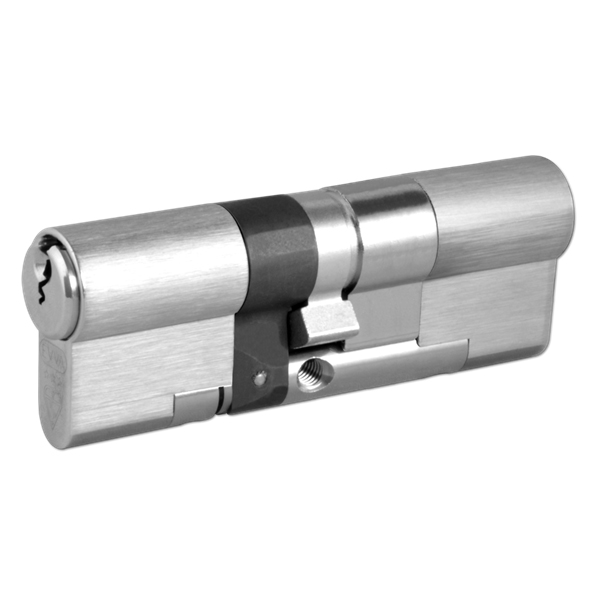

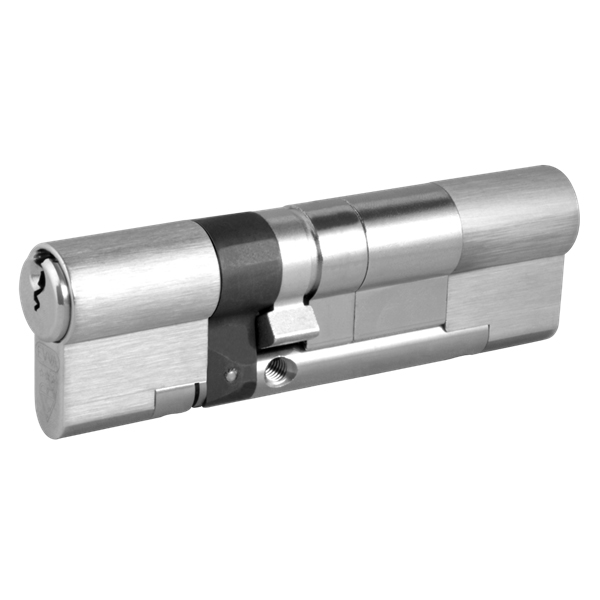

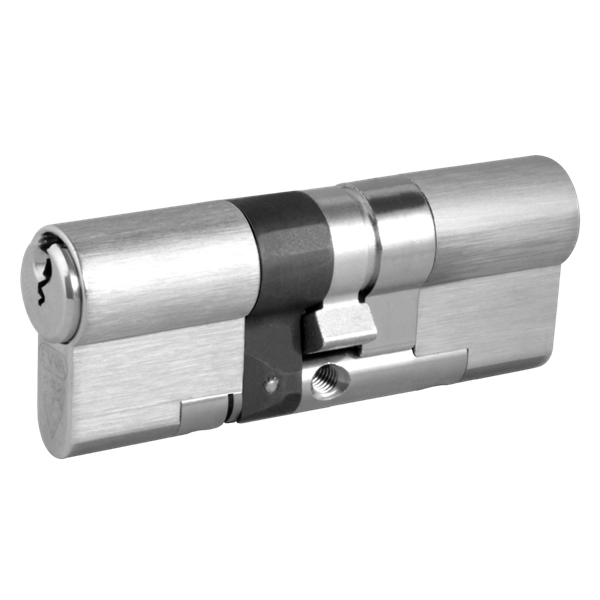

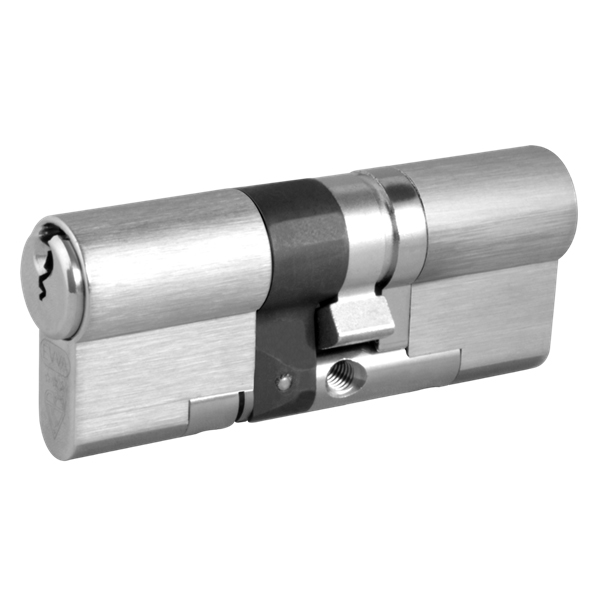

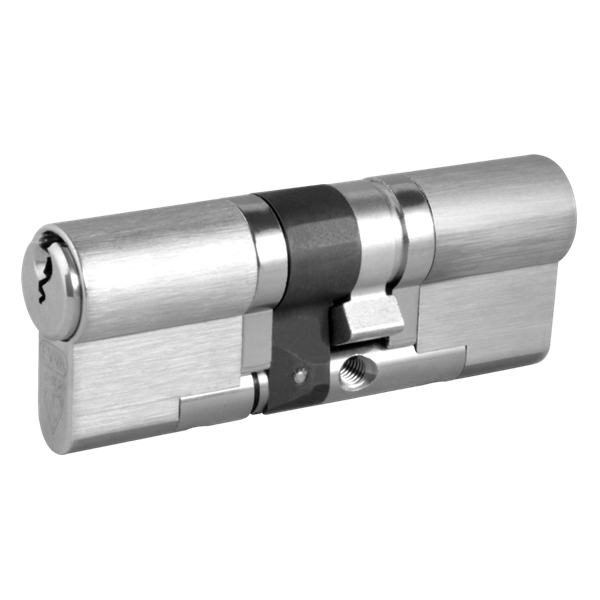

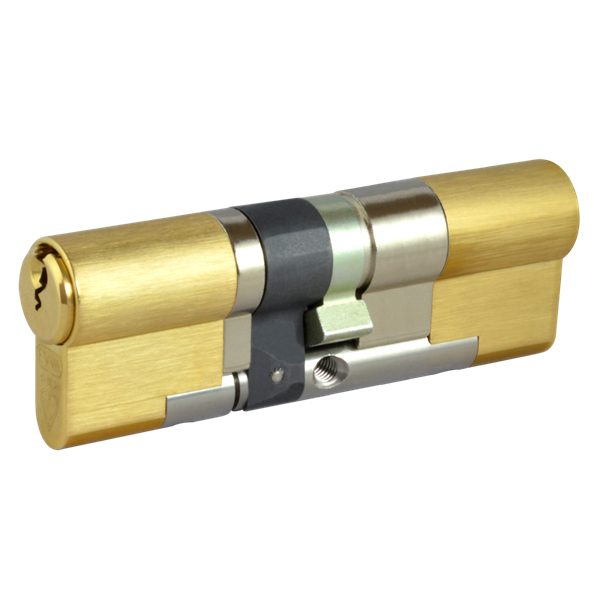

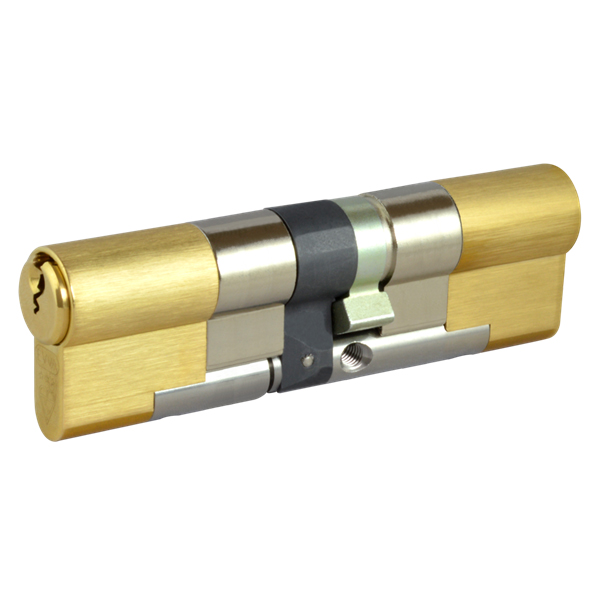

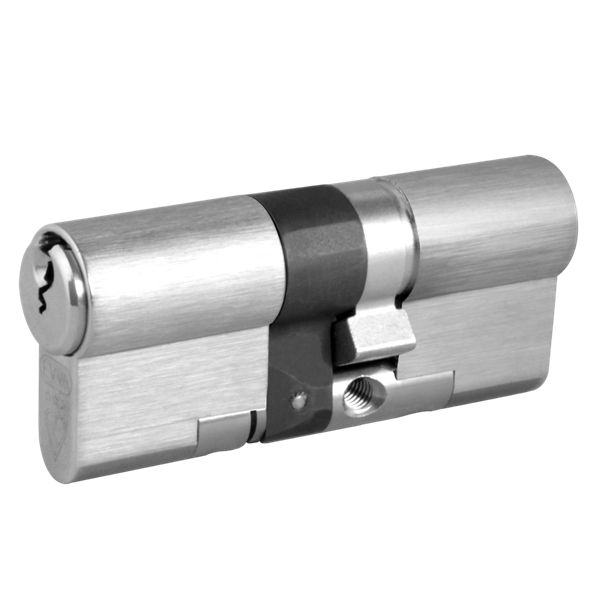

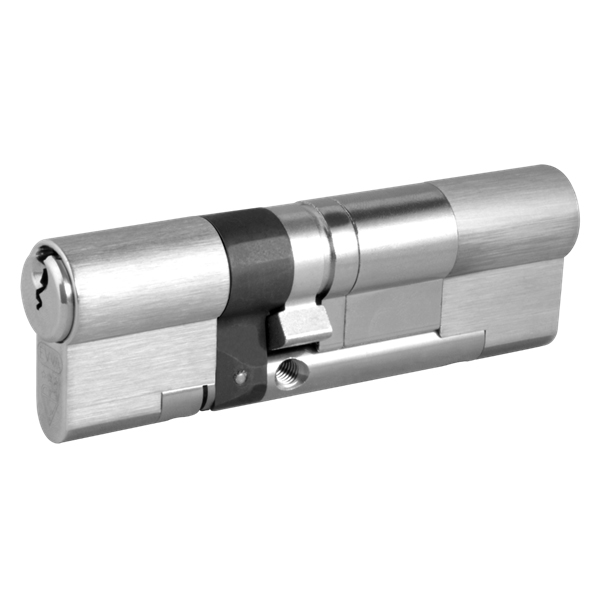

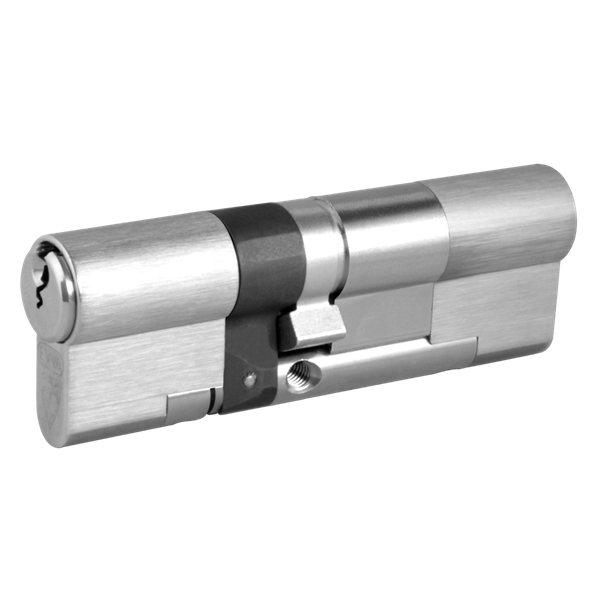

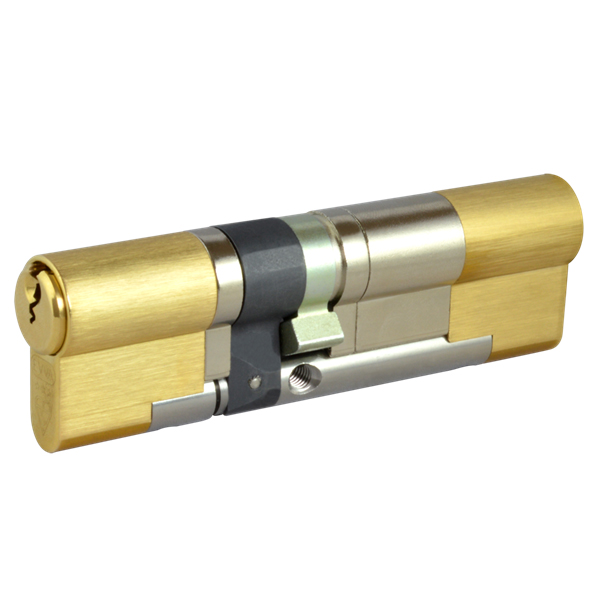

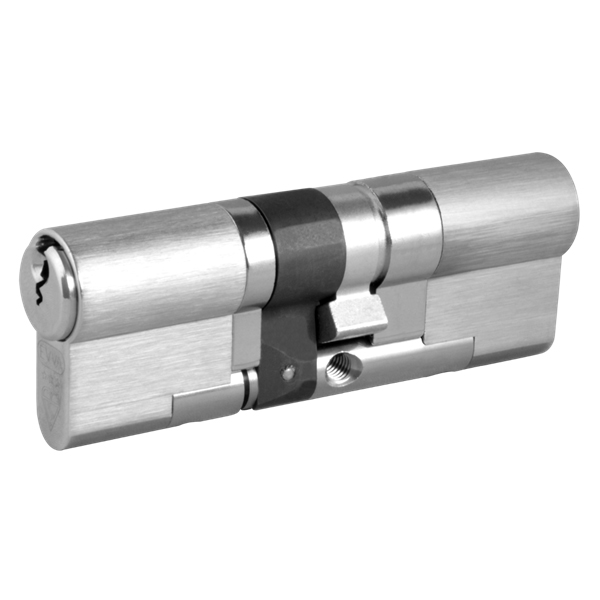

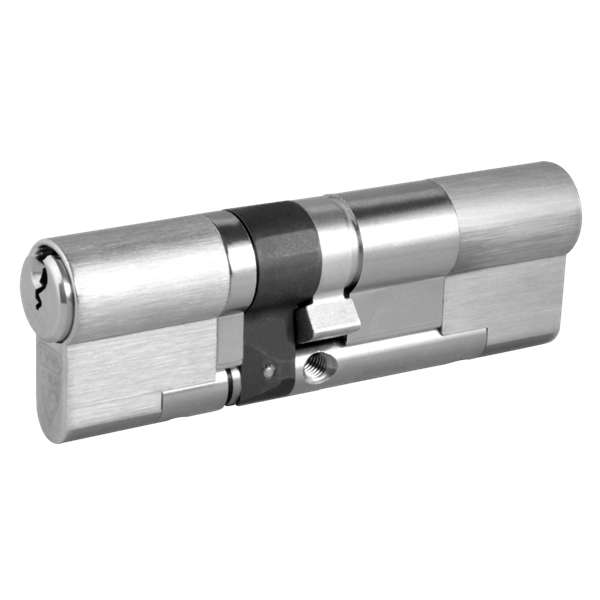

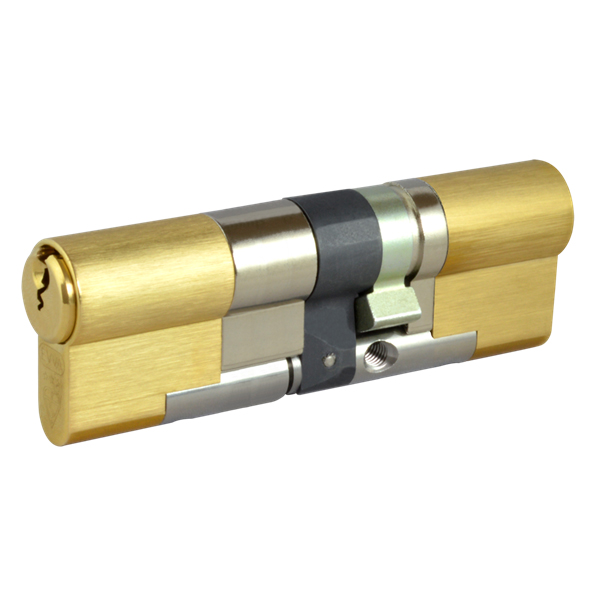

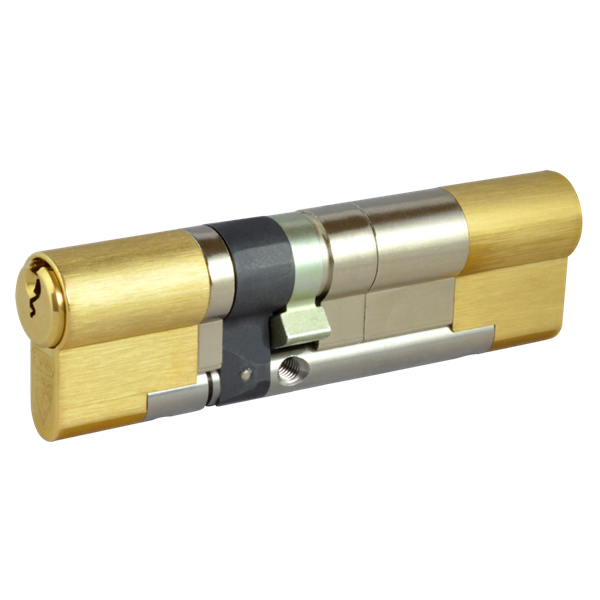

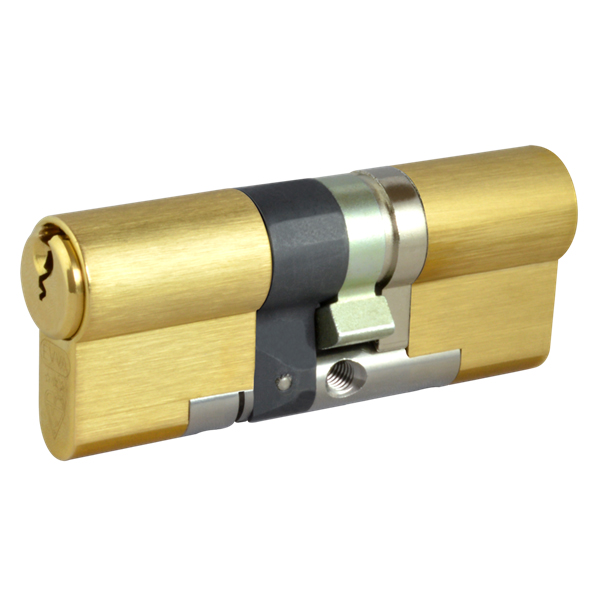

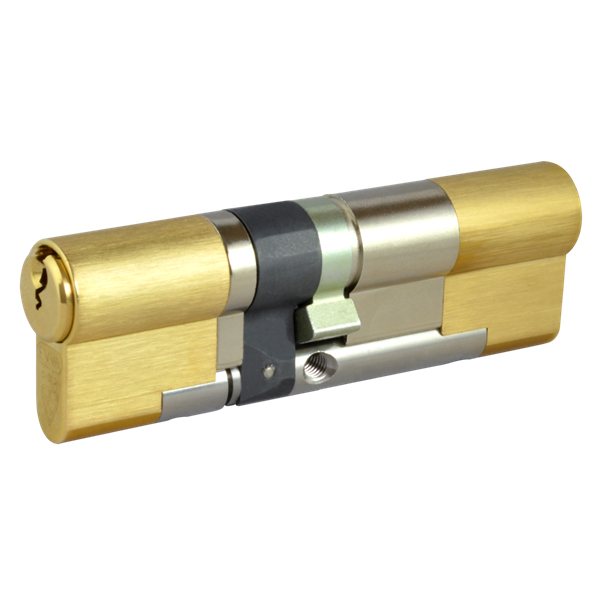

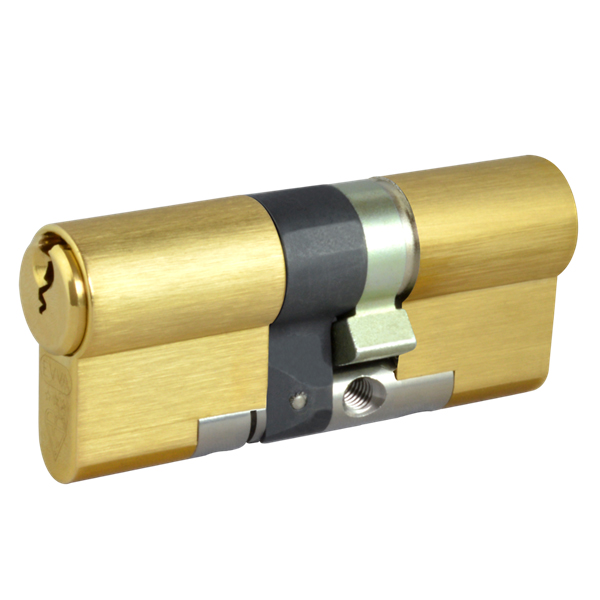

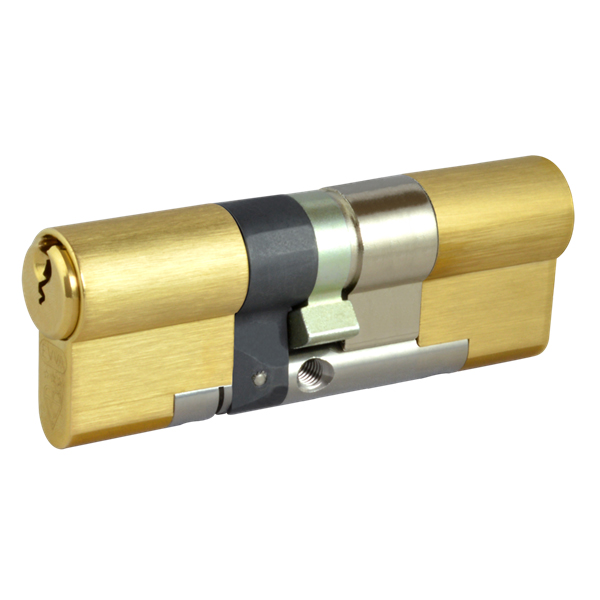

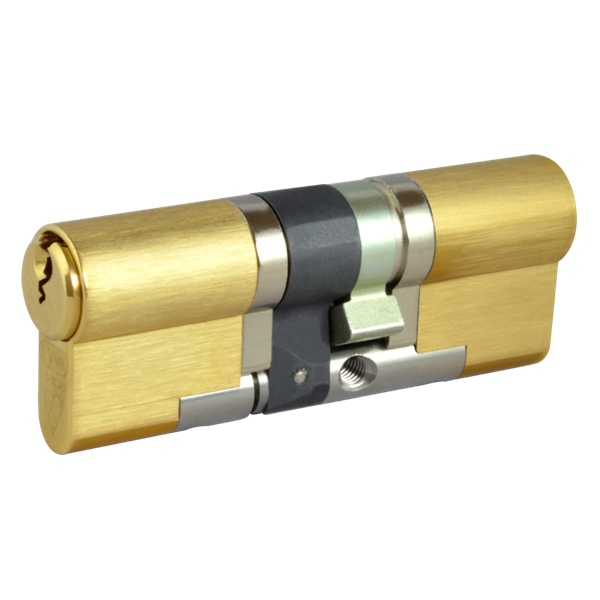

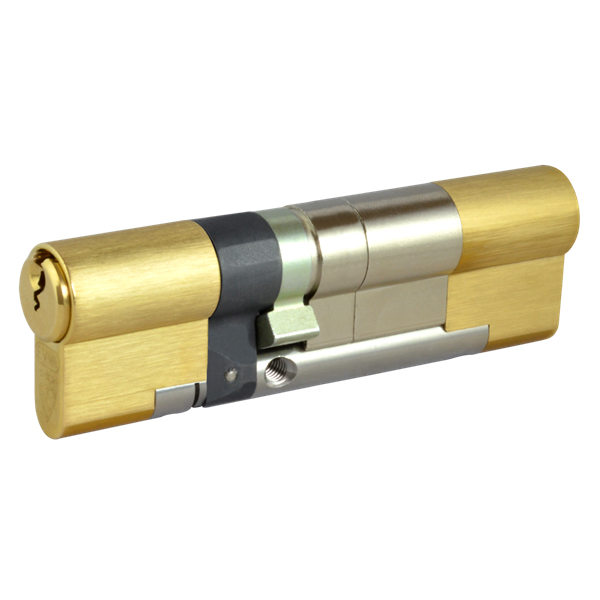

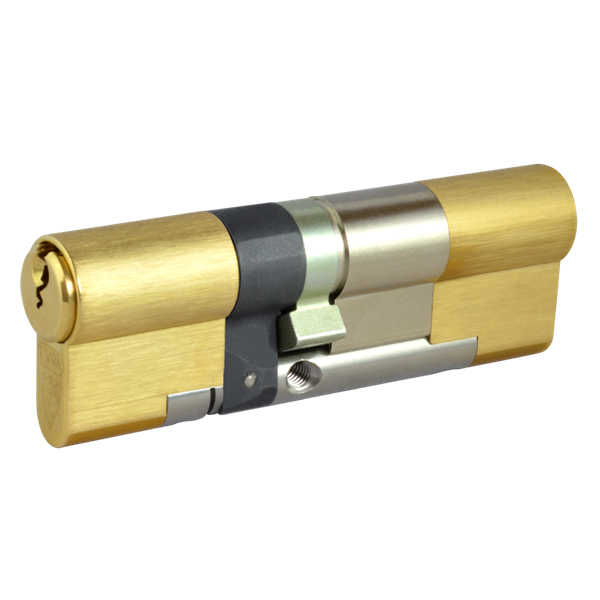

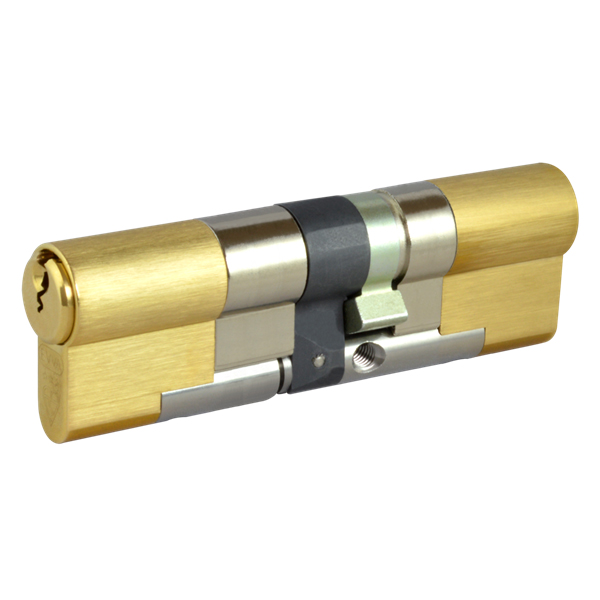

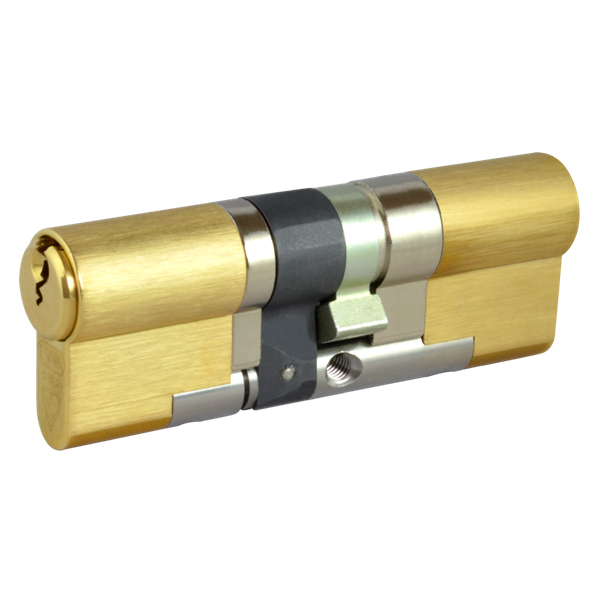

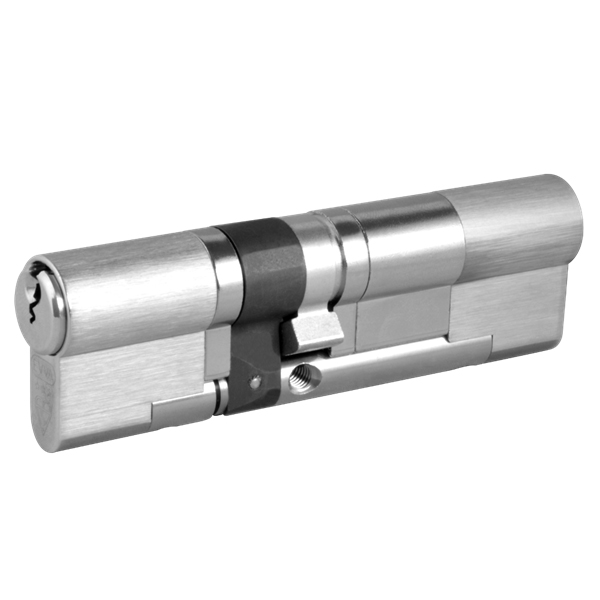

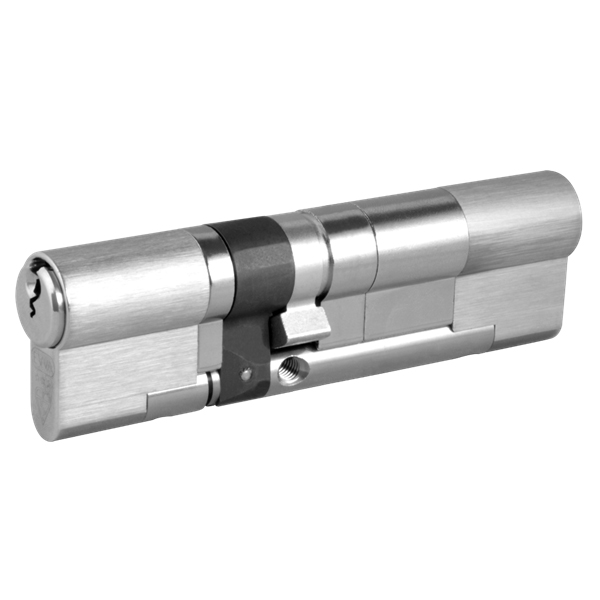

EVVA EPS 3 Star Euro Double Cylinder - Anti Bump Drill and Pick
EVVA EPS Euro Double Cylinders that are available in Nickel or Brass finish and come with great levels of security including 3 Star Rating, BS En 1303:2005, TS007 2012 and EN 1634-1 for fire doors. The EVVA EPS range of cylinder have two type of cuts on the EPS keys for increased security, the standard pins and also a side bar, with side cuts on the key. These EVVA EPS 3 Star double cylinders have a key to lock and unlock on either side of the cylinder and also incorporate breakaway section to provide anti snap protection. If you are looking for a high security cylinder with a restricted key, then this is the product to go with
- Secured by Design product tested
- Break away sections provide snap protection
- 3* Star Security Rating
- BS EN 1303:2005
- TS007 2012
- Tested to EN 1634-1 for 90 minute fire doors
- Cylinder Lock is BSI Kitemarked
- EPS Cylinder can be part of a large Keyed Alike or Master Suite of various type and sizes of cylinder
Mechanism:

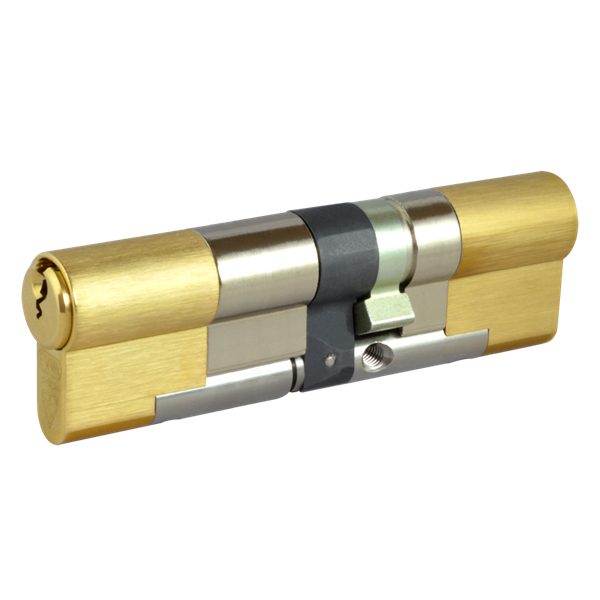

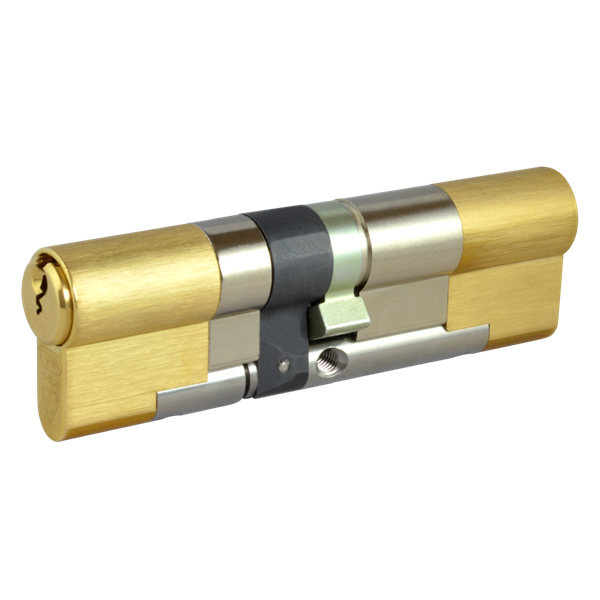

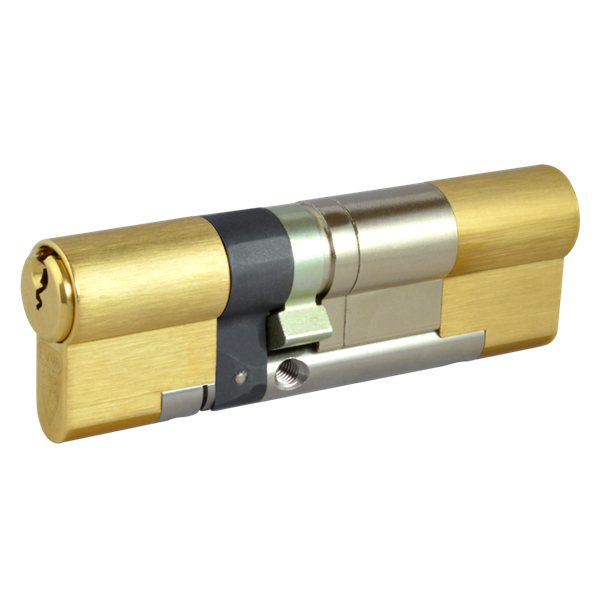

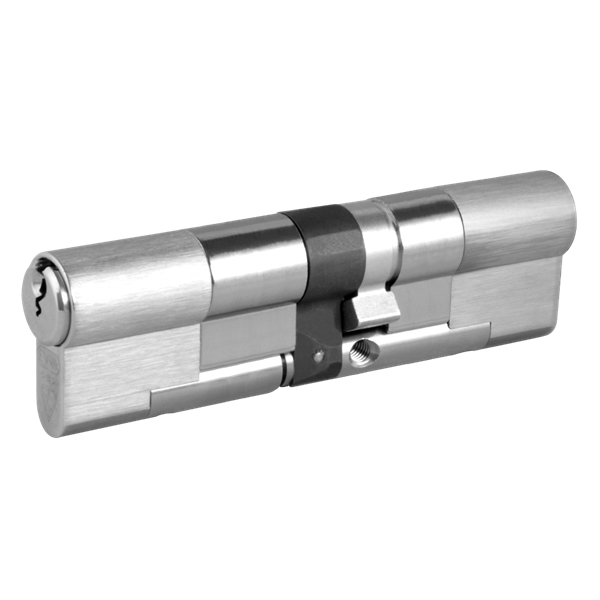

Finish: Nickel or Brass
Overall Length:
Keys Supplied: 3 keys and security card
Keyed Alike: Yes email for details
Master Keyed: yes email for details
Size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
72mm | 72 | 41/31 | 17 | 33 | 10 |
77mm | 77 | 41/36 | 17 | 33 | 10 |
82mm | 82 | 41/41 | 17 | 33 | 10 |
82mm | 82 | 46/36 | 17 | 33 | 10 |
87mm | 87 | 41/46 | 17 | 33 | 10 |
87mm | 87 | 46/41 | 17 | 33 | 10 |
87mm | 87 | 51/36 | 17 | 33 | 10 |
92mm | 92 | 41/51 | 17 | 33 | 10 |
92mm | 92 | 46/46 | 17 | 33 | 10 |
92mm | 92 | 51/41 | 17 | 33 | 10 |
92mm | 92 | 56/36 | 17 | 33 | 10 |
97mm | 97 | 41/56 | 17 | 33 | 10 |
97mm | 97 | 46/51 | 17 | 33 | 10 |
97mm | 97 | 51/46 | 17 | 33 | 10 |
97mm | 97 | 56/41 | 17 | 33 | 10 |
102mm | 102 | 41/61 | 17 | 33 | 10 |
102mm | 102 | 46/56 | 17 | 33 | 10 |
102mm | 102 | 51/51 | 17 | 33 | 10 |
102mm | 102 | 56/46 | 17 | 33 | 10 |
102mm | 102 | 64/41 | 17 | 33 | 10 |
107mm | 107 | 46/61 | 17 | 33 | 10 |
107mm | 107 | 61/46 | 17 | 33 | 10 |
