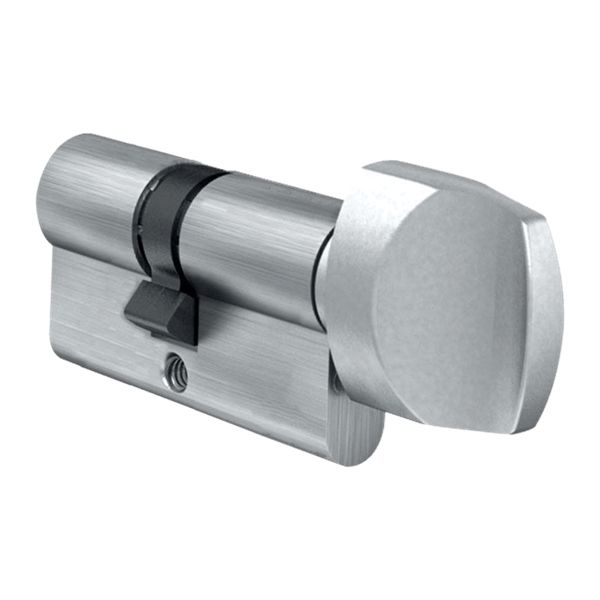

EVVA A5 Euro Key and Turn Offset Cylinder
EVVA A5 Euro Key and Turn Cylinder 31/31 62mm Nickel Plated
EVVA A5 Euro Key and Turn Offset Cylinder, Supplied with 3 keys and retaining screw.
Supplied with 3 keys, these offset cylinders have a Euro shaped profile and come available in 9 different sizes, offset meaning each side of the cylinder are different sizes. Brass or Nickel finishes available and can be keyed alike if required.
Mechanism: 5 Pin

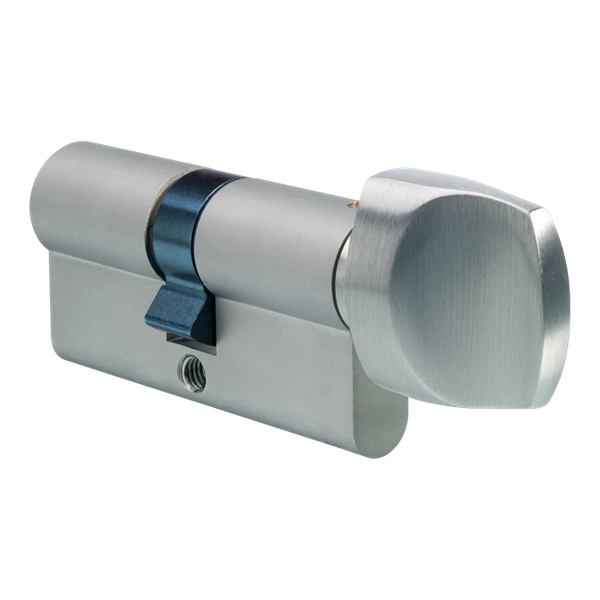

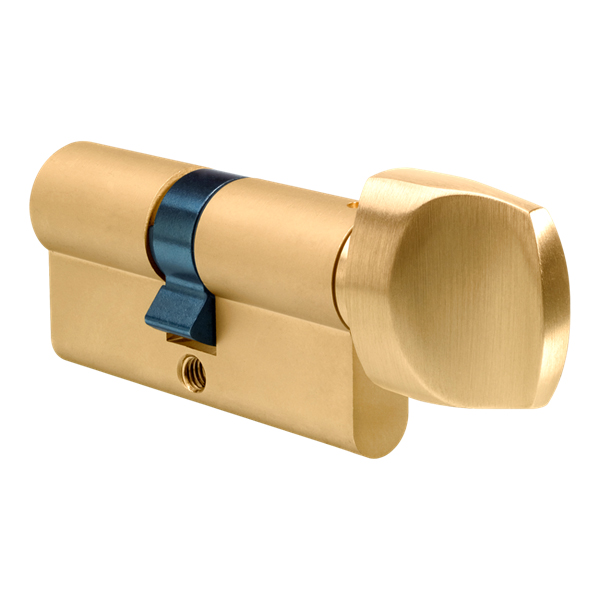

Finish: Nickel and Brass
Overall Length: 67, 72, 77, 82, 87, 92, 97, 102 and 112mm
Keys Supplied: 3
Keyed Alike: Yes Lead Time 5-7 Days
Master Keyed: Yes Email for details
Measurement: First measurement is key side, second is turn side.
Features
3 Keys supplied with unrestricted A section key profile. 30 minute fire resistance to 821° C, can be keyed alike with other EVVA A5 Cylinders
Operation
Cylinder operated by key on first side and turn on other side.
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
| 67mm |
67
|
36/31
|
17
|
33
|
10
|
| 72mm |
72
|
31/41
|
17
|
33
|
10
|
| 77mm |
77
|
36/41
|
17
|
33
|
10
|
| 82mm |
82
|
31/51
|
17
|
33
|
10
|
| 82mm |
82
|
36/46
|
17
|
33
|
10
|
| 82mm |
82
|
46/36
|
17
|
33
|
10
|
| 82mm |
82
|
51/31
|
17
|
33
|
10
|
| 87mm |
87
|
41/46
|
17
|
33
|
10
|
| 87mm |
87
|
46/41
|
17
|
33
|
10
|
| 92mm |
92
|
31/61
|
17
|
33
|
10
|
| 92mm |
92
|
36/56
|
17
|
33
|
10
|
| 92mm |
92
|
41/51
|
17
|
33
|
10
|
| 92mm |
92
|
51/41
|
17
|
33
|
10
|
| 92mm |
92
|
56/36
|
17
|
33
|
10
|
| 92mm |
92
|
61/31
|
17
|
33
|
10
|
| 97mm |
97
|
36/61
|
17
|
33
|
10
|
| 97mm |
97
|
41/56
|
17
|
33
|
10
|
| 97mm |
97
|
46/51
|
17
|
33
|
10
|
| 97mm |
97
|
51/46
|
17
|
33
|
10
|
| 97mm |
97
|
56/41
|
17
|
33
|
10
|
| 97mm |
97
|
61/36
|
17
|
33
|
10
|
| 102mm |
102
|
41/61
|
17
|
33
|
10
|
| 102mm |
102
|
46/56
|
17
|
33
|
10
|
| 102mm |
102
|
56/46
|
17
|
33
|
10
|
| 102mm |
102
|
61/41
|
17
|
33
|
10
|
| 112mm |
112
|
41/71
|
17
|
33
|
10
|
| 112mm |
112
|
71/41
|
17
|
33
|
10
|
