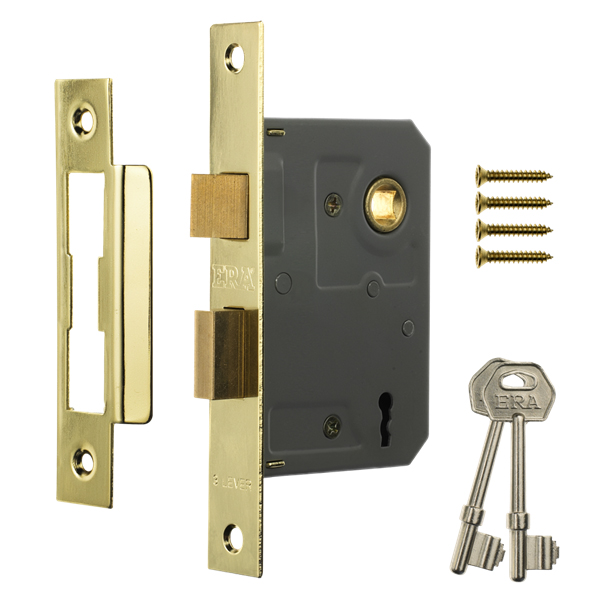

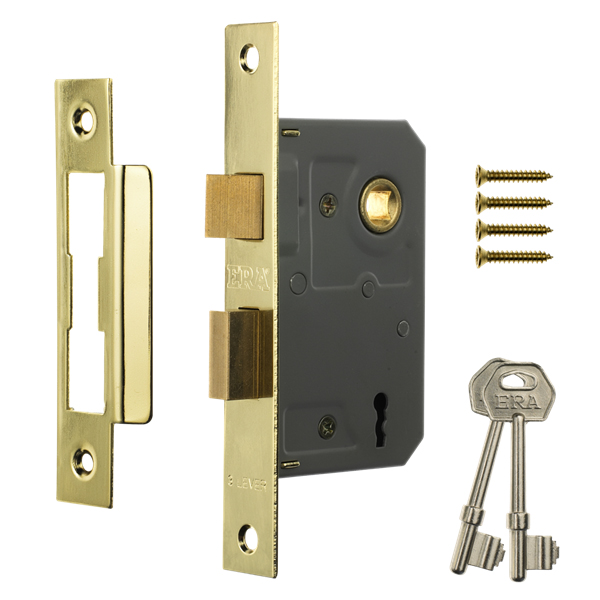

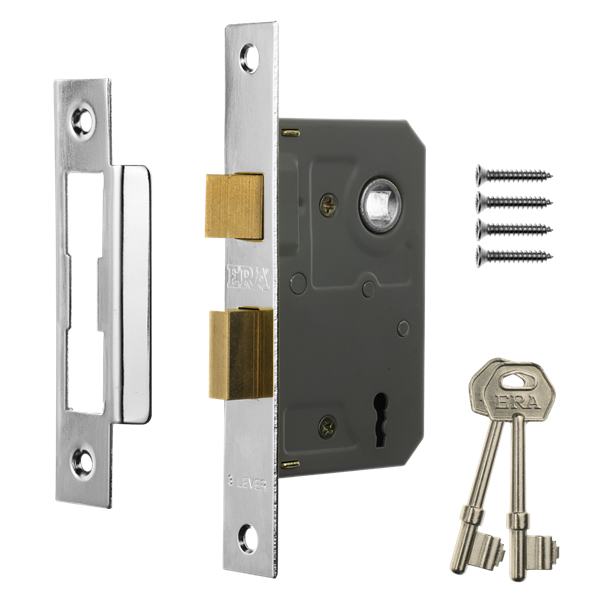

ERA 473 and 573 3 Lever Mortice Sash Lock
3 Lever sash locks from ERA Security, with a case size of 64mm or 76mm and colours of Brass or Chrome. This low cost locks can be used on internal or external doors, but are more suited to internal doors as they are not BS rated, ideally suited to office doors or internal house doors.
Mechanism: 3 Lever
Case size: 64mm and 76mm
Case finish: Grey
Forend finish: Brass or Chrome
Keys Supplied: 2
Keyed Alike: Yes email for details
Master Keyed: No
Differs: 100+
Features
- Easy to reverse latch bolt for doors hinged on left or right hand side
- supplied with 2 keys
- Low cost but quality locks
- Over 100 key variations
Operation
Locking bolt is locked and unlocked from either side by a turn of the key. Latch bolt is withdrawn by lever handles from either side
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Centres (D)
|
Forend Length (E)
|
Forend Width (F)
|
|
64mm |
65
|
44
|
102
|
57
|
155
|
22
|
76mm |
77
|
56
|
102
|
57
|
155
|
22
|
