CISA 41110 Side Shutter Door Lock

CISA 41110 Side Shutter Door Lock

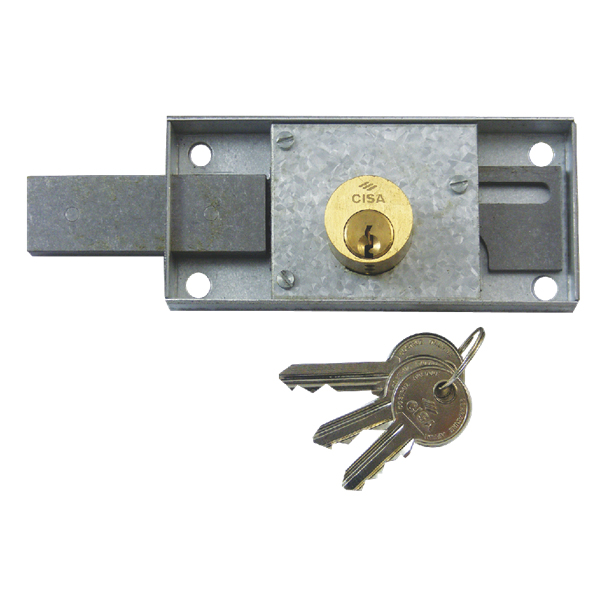

Left or right hand shutter door locks are used to lock and secure roller shutter doors on either the left or right hand side. These shutter locks from CISA use a locking bolt that is extended out from one side of the lock case to secure the door. Locks have a double throw facility enabling the bolt to move 13mm on first turn and another 10mm on second turn. These are operated by use of key. Please order the correct lock for your door as Italian handing is different from the UK.  The picture above shows a Right Hand Lock.

Case Size: 120 x 55 x 13mm

Cylinder Projection: 14mm

Cylinder Finish: Brass

Bolt Projection: 42mm Unlocked and 65mm Locked

Keys Supplied: 2

Keyed Alike: Yes Email for Details

Master Keyed: Yes Email for Details

Handing: Italian Left and Right Handed, Right Hand Illustrated, please note Italian handing is opposite to UK

Features

CISA 41110 Shutter Door Lock Left and Right Hand not reversible please order correct hand. Double Thrown facility first throw 13mm and second thrown 10mm

Operation

Deadbolt is locked or unlocked by key from either side
