Borg Locks BL 5403 Digital Lock with Mortice Lock Case Stainless Steel - BL5403SS

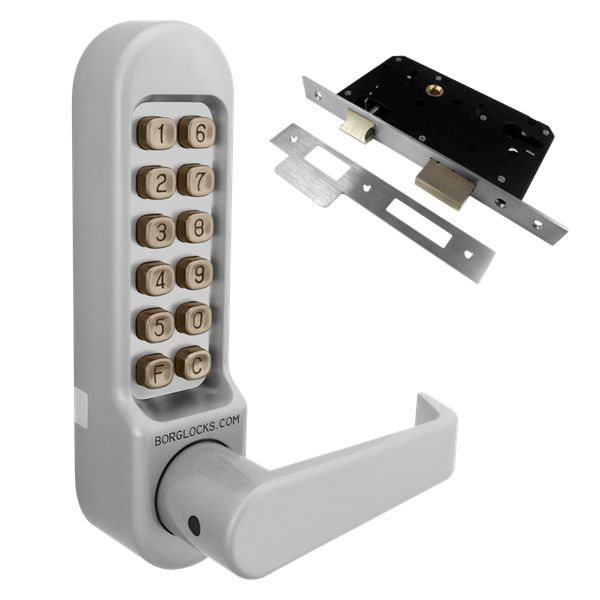

Borg Locks BL 5403 Push Button Digital Door Lock with Euro Profile Sash Lock Case. The BL5403 is supplied with a 60mm backset sash mortice lock, the latch bolt is withdrawn by the push button digital lock, with a euro cylinder operating the locking dead bolt. This setup provides extra locking capabilities whereby the door can be locked via the euro cylinder and even if a correct key pad entry is made the door will not open.
Our full range of Euro Cylinder can be found here www.locktrader.co.uk/Euro-Profile-cylinders.html
Double cylinder and also key and turn cylinders can be used with the supplied lock case, a key and turn cylinder will allow for emergency exit though the door at any time. As the digital door lock is not supplied with a cylinder, a lock barrel from an existing keyed alike or master key suite could be used.
The BL5403 is include a keypad clutch feature, that disengages the handle from the keypad, so that if an incorrect key code is entered and the handles are forcefully pushed, the lock case and key pad will not be damaged. Other top features of this digital door lock include, 1 year manufacturer guarantee, reversible door handing (can be fitted to left or right hand doors) and passage function (no code entry required) by use of the 'F' button.
- Stainless Steel Finish
- Supplied with 60mm Backset Euro Profile Sash Lock Case
- Euro Cylinder not supplied
- For internal and protected / sheltered external doors
- Optional Free Passage - Option to disable key pad for free entry and exit
- Clutched Keypad to protect against force attack and damage to the lock
- 12 Large Push Buttons
Product Specifications | |
Guarantee | 1 Year |
Combination | 2,000+ |
Holdback | No |
Key Override | With Euro Cylinder - Not Supplied |
Key Pad Buttons | 12 |
Operation | Code entry to enter - Lever to exit |
Passage Set | Yes |
Weather Resistant | No - For internal Use or sheltered external |
Finish | Stainless Steel |
Barcode | 5060275690691 |
Brand | Borg |
Handed | Left or Right Hand Reversible |
Lock Case Included | Euro Profile Sash Lock |
Manufacturer Reference | BL5403SS |
Product Dimensions | |
Backset | 60mm |
Case Depth Required | 84mm |
Case Height | 72mm |
Door Thickness | 35mm to 65mm |
Height | 177mm |
Spindle | 8mm |
Width | 48mm |
