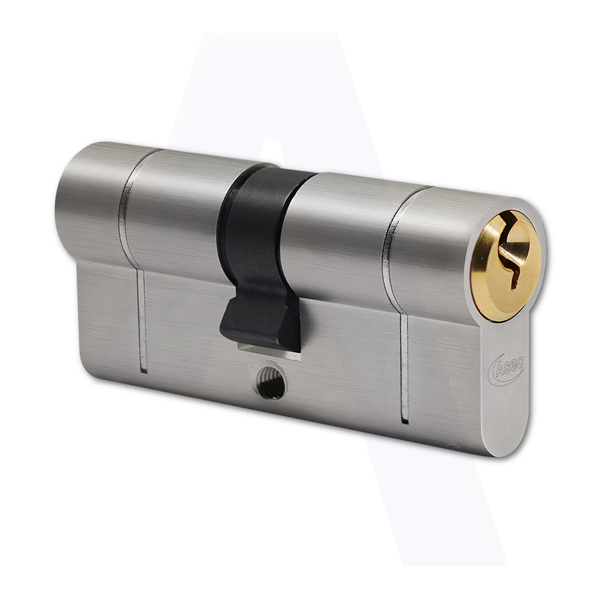

Asec Vital Snap Resistant 6 Pin Euro Double Cylinders

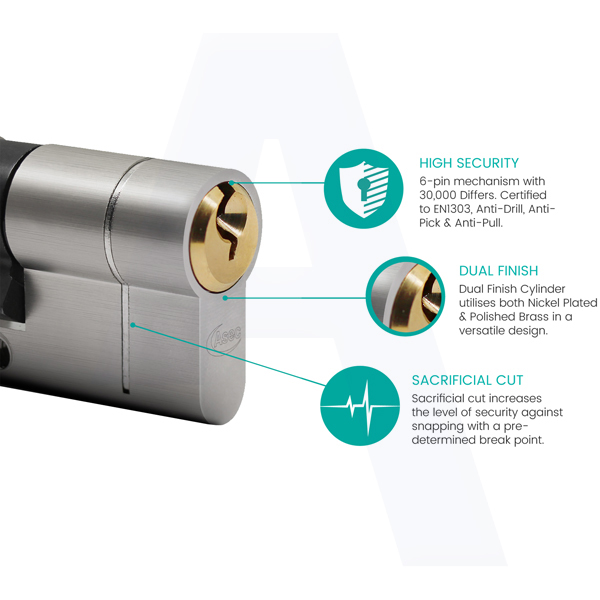

New from the Asec Vital range are these double euro 6 pin cylinders that are ideal for contract type work. All cylinders in these double range are priced the same regardless of size, making them easy to specify when pricing a large job. The new Asec Vital Double cylinder are very keenly priced based on their excellent security features which includes a snap off sacrificial section that makes these cylinders snap resistant, anti drill, pick and pull characteristics and 6 pin locking with 30000 differs. With a wide range of lengths and sizes the Asec Vital Euro Cylinders really are great value for money
- 6 Pin Locking mechanism with 30000 differs
- Certified to EN1303
- Snap Resistant
- Anti Drill, Pick and Pull
- Sacrificial cut of section to stop cylinder attacks
- Supplied with 3 keys
- 1 Year Guarantee
Mechanism: 6 Pin Cylinder with Snap Resistance
Finish: Nickel Plated Body with Brass Cylinder
Overall Length: 64mm, 69mm, 74mm, 79mm, 84mm, 89mm, 94mm, 99mm, 104mm, 109mm and 114mm
Keys Supplied:3
Keyed Alike: Yes, please select option
Master Keyed: No
Size
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
64mm | 32 | 32 | 17 | 33 | 10 |
69mm | 32 | 37 | 17 | 33 | 10 |
74mm | 32 | 42 | 17 | 33 | 10 |
79mm | 32 | 47 | 17 | 33 | 10 |
74mm | 37 | 37 | 17 | 33 | 10 |
79mm | 37 | 42 | 17 | 33 | 10 |
84mm | 37 | 47 | 17 | 33 | 10 |
89mm | 37 | 52 | 17 | 33 | 10 |
94mm | 37 | 57 | 17 | 33 | 10 |
84mm | 42 | 42 | 17 | 33 | 10 |
89mm | 42 | 47 | 17 | 33 | 10 |
94mm | 42 | 52 | 17 | 33 | 10 |
99mm | 42 | 57 | 17 | 33 | 10 |
104mm | 42 | 62 | 17 | 33 | 10 |
94mm | 47 | 47 | 17 | 33 | 10 |
99mm | 47 | 52 | 17 | 33 | 10 |
104mm | 47 | 57 | 17 | 33 | 10 |
109mm | 47 | 62 | 17 | 33 | 10 |
114mm | 47 | 67 | 17 | 33 | 10 |
104mm | 52 | 52 | 17 | 33 | 10 |
