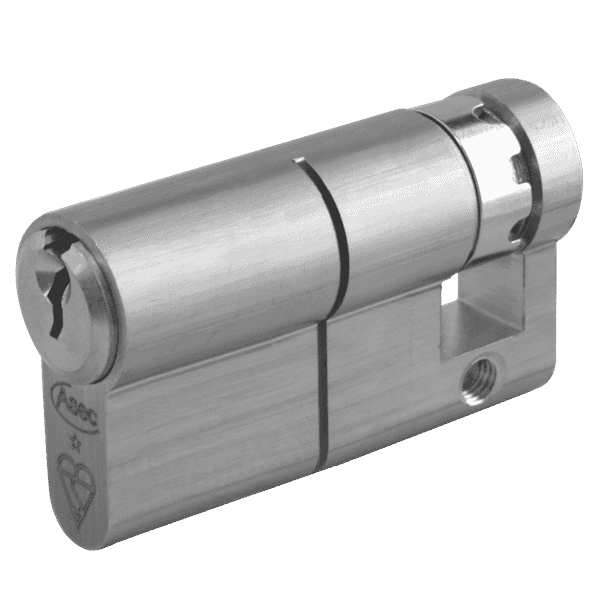

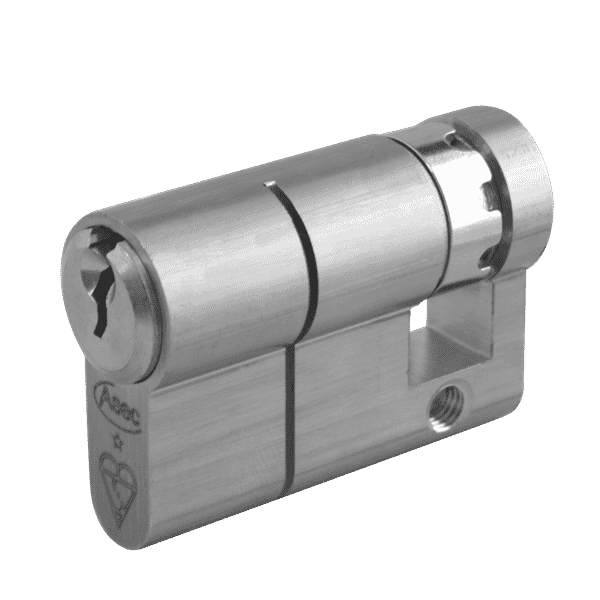

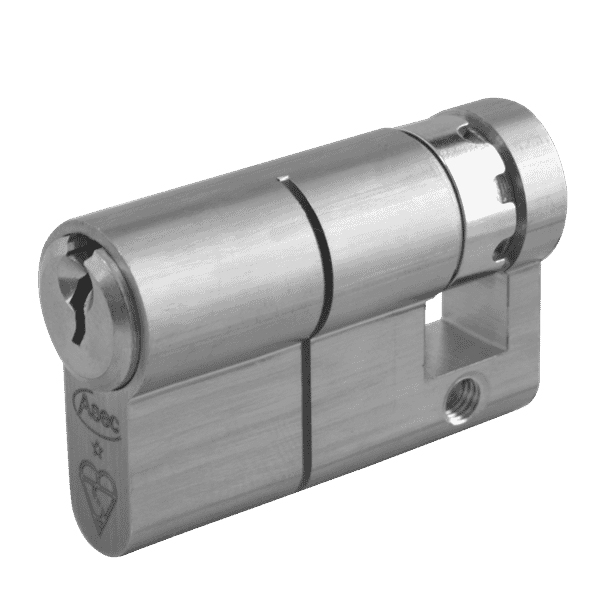

Asec Kite Euro Single/Half Cylinder
Asec Kite Euro Single/Half Cylinder 30/10 40mm Nickle Plated
Asec Kite Euro Single/Half Cylinder, part of the Asec Kite range of cylinder, supplied with 3 keys.
This 6 pin mechanism half cylinder complies to BS EN 1303 and is Drill, Pick and Bump resistant. The profile is Euro shaped and its operated by key on one side only. All cylinders on the Asec Kite range share a profile and therefore can be keyed alike if required. Come supplied with three keys, available in three sizes.
Mechanism: 6 Pin
Overall Length: 40, 45 and 50mm
Keys Supplied: 3
Keyed Alike: Yes
Master Keyed: No
Features
Part of the Asec Kite range cylinders. Drill Resistant, Pick Resistance provided by Special driver profile and Bump Resistant with BKP device fitted as standard.
Operation
Key is used from one side only to operate cylinder
Size
|
Overall Length (A)
|
Size to Centre of Cam (B)
|
Diameter of Cylinder (C)
|
Height of Cylinder (D)
|
Width of Cylinder (E)
|
|
| 40mm |
40
|
30/10
|
17
|
33
|
10
|
| 45mm |
45
|
35/10
|
17
|
33
|
10
|
| 50mm |
50
|
40/10
|
17
|
33
|
10
|
