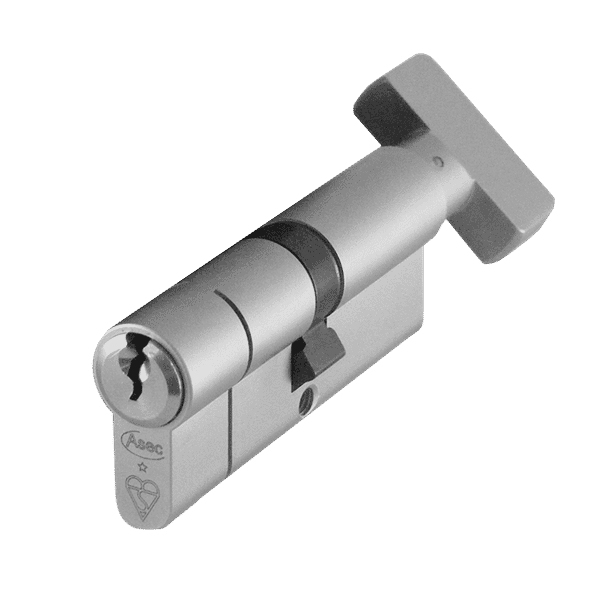

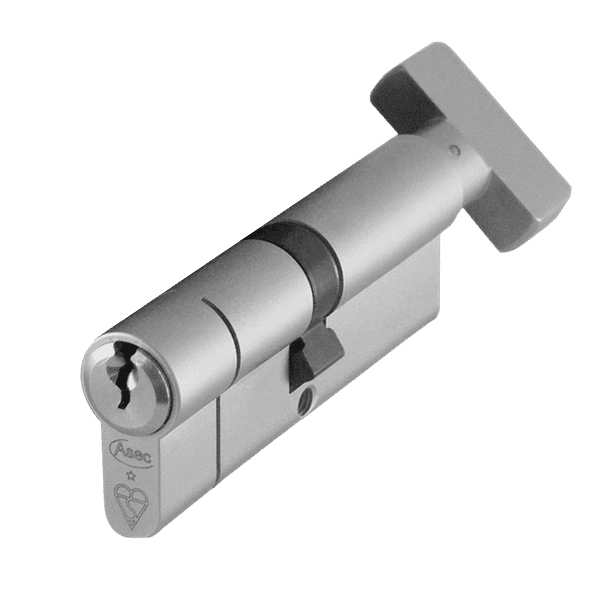

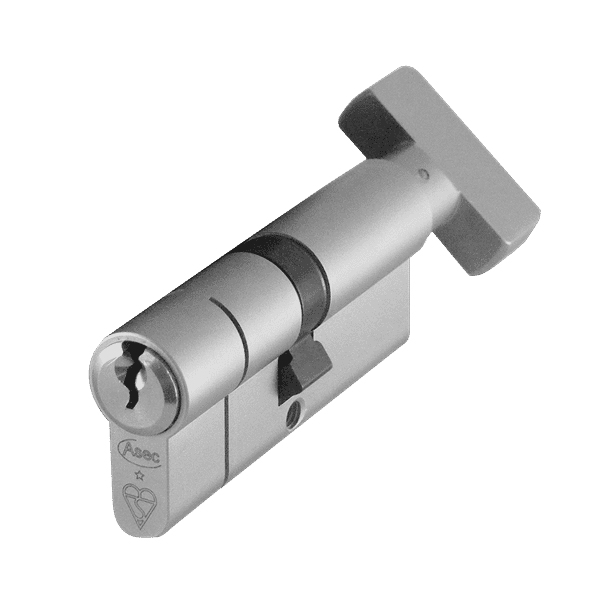

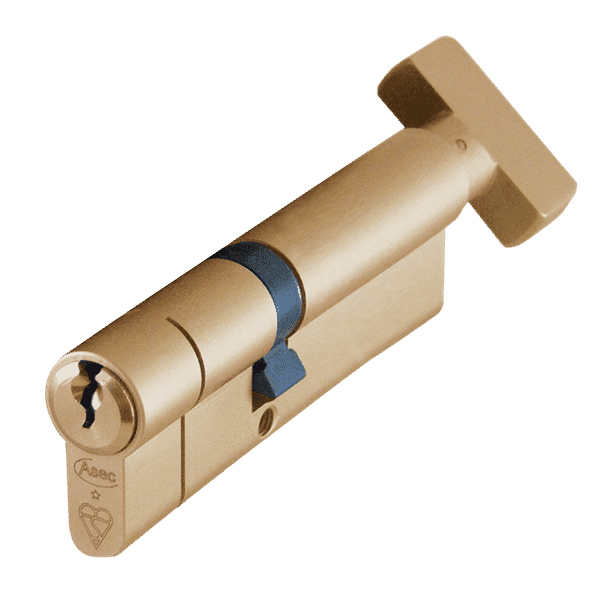

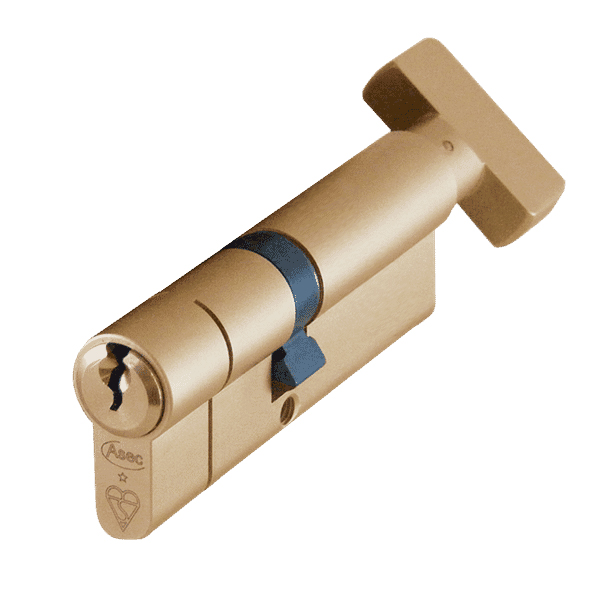

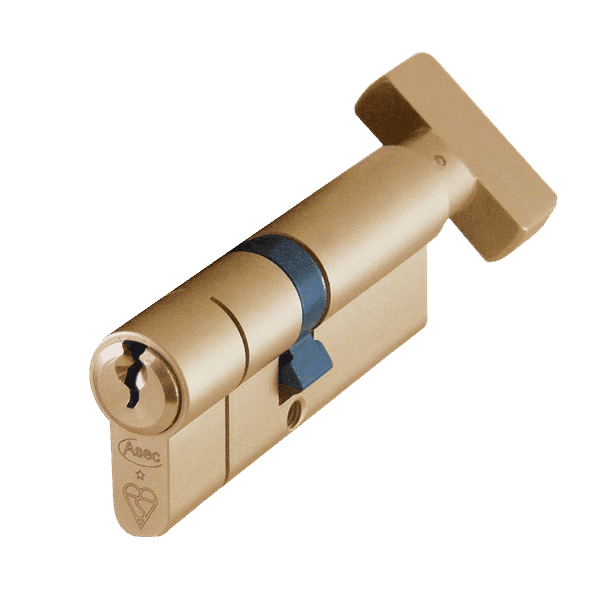

Locks Cylinders Anti snap and Anti Bump Locks Asec Kite BS Kitemarked Snap Resistant Euro Key and Turn CylinderAsec Kite BS Kitemarked Snap Resistant Euro Key and Turn Cylinder
Asec BS Kitemarked Snap Resistant Euro Key and Turn Cyl 35/35 70mm NP
Asec Kite BS Kitemarked Snap Resistant Euro Key and Turn Cylinder , anti-bump, anti-pick and anti-drill with a TS 007 1 Star Rating
Anti Bump and Anti Snap cylinder with key on one side and thumb turn on other ideal when security is only required from one side. These high security cylinders are available in offset and equal measurements in either Nickel Plated or Brass colours. They come supplied with 3 keys per cylinder with the option for Keyed Alike Cylinder if required. Sizes range from 70mm - 100mm in a Brass or Nickel finish.
Mechanism: 6 Pin
Finish: Nickle (NP) and Brass (PB)
Overall Length: 70, 75, 80, 85 and 100mm
Measurement: Second measurement is turn side
Keys Supplied: 3
Keyed Alike: Yes
Master Keyed: No
Features
British Standard BS1303:2005 and Kite Marked with a TS 007 1 Star rating these snap resistant cylinder offer excellent levels of security at low prices. Snap Resistant with break away sections, Drll Resistant, Pick Resistance provided by Special driver profile and Bump resistant with BKP device fitted as standard.
Operation
Key is used from outside to operate cylinder and turn from inside.
Size
|
Overall Length (A)
|
Size to Centre of Cam (B&C)
|
Diameter of Cylinder (D)
|
Height of Cylinder (E)
|
Width of Cylinder (F)
|
|
| 70mm |
70
|
35/35
|
17
|
33
|
10
|
| 75mm |
75
|
35/40
|
17
|
33
|
10
|
| 75mm |
75
|
40/35
|
17
|
33
|
10
|
| 80mm |
80
|
40/40
|
17
|
33
|
10
|
| 85mm |
85
|
40/45
|
17
|
33
|
10
|
| 85mm |
85
|
45/40
|
17
|
33
|
10
|
| 100mm |
100
|
45/55
|
17
|
33
|
10
|
