Asec Central Roller Shutter Door Lock

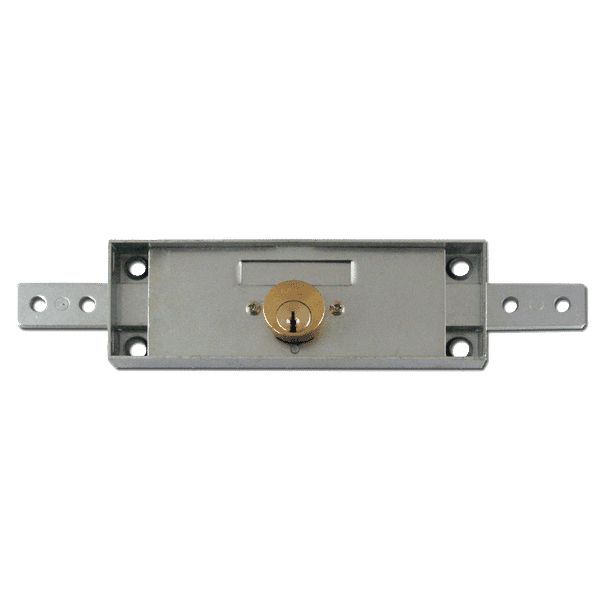

Asec Central Roller Shutter Door Lock, locked with central locking cylinder, silver case with brass cylinder
Central Roller Shutter Door Lock from Asec Security. Used to lock and secure roller shutter doors with the use of two locking arms that extend from each side of the lock case. These locking arms engage with locking the mechanism of roller doors to lock into place. This roller shutter door lock has a bolt extension of 50mm, 25mm each side.
Case Size: 155 x 55 x 15mm
Cylinder Projection: 11.5mm
Cylinder Finish: Brass
Bolt Projection: 90mm Unlocked, 140mm Locked
Keys Supplied: 2
Keyed Alike: No
Handing: Central Bolt Shoots out from both sides
Features
Steel case with zinc plating and Brass Cylinder. Double Thrown Bolt that extends 25mm either side of case
Operation
Deadbolt is locked or unlocked by key from either side

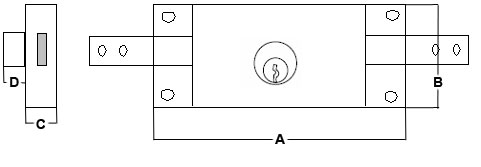

Size
Case Width (A)
|
Case Height (B)
|
Case Depth (C)
|
Cylinder Projection (D)
|
|
155
|
55
|
15
|
11.5
|
