Adams Rite MS1850-450 Maximum Security Deadlock Hook 38mm

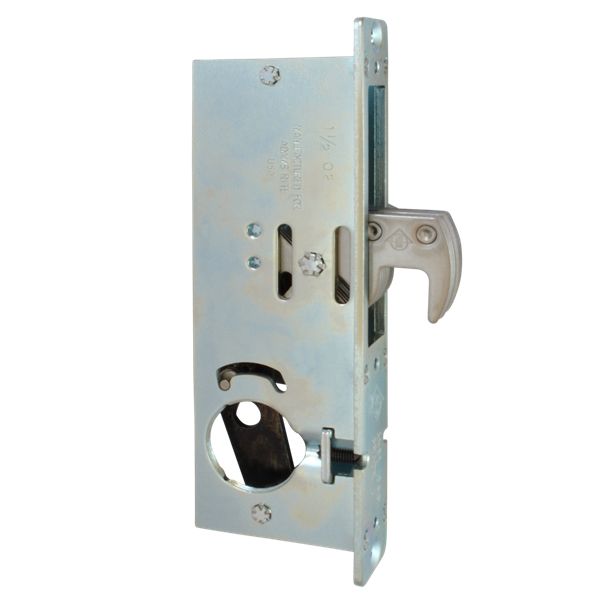

Adams Rite MS1850 Maximum Security Deadlock for Metal Doors
High security deadlock with the option of either standard bar bolt or hook bolt to secure and lock hinged or sliding doors. Operated by screw in cylinders, one on each side, this lock can be supplied in a number of sizes with backset of 22mm, 24mm, 28mm and 38mm. Faceplates for this lock need to be ordered separately and depend on bolt type.
Mechanism: Screw in cylinder
Case size: 40, 41.5, 45 and 57mm
Case finish: Plated Steel
Forend finish: Aluminium
Handing: Reversible
Features
This Adams Rite metal door lock is available in both deadbolt and hook versions to provide high security to hinged and sliding aluminium doors.
Operation
Deadbolt or hook cane be operated from either side by key turn using a standard screw in cylinder or thumbturn
Size
|
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
| 22mm |
40
|
22
|
152
|
175
|
26
|
| 24mm |
41.5
|
24
|
152
|
175
|
26
|
| 28mm |
45
|
28
|
152
|
175
|
26
|
| 38mm |
57
|
38
|
152
|
175
|
26
|
