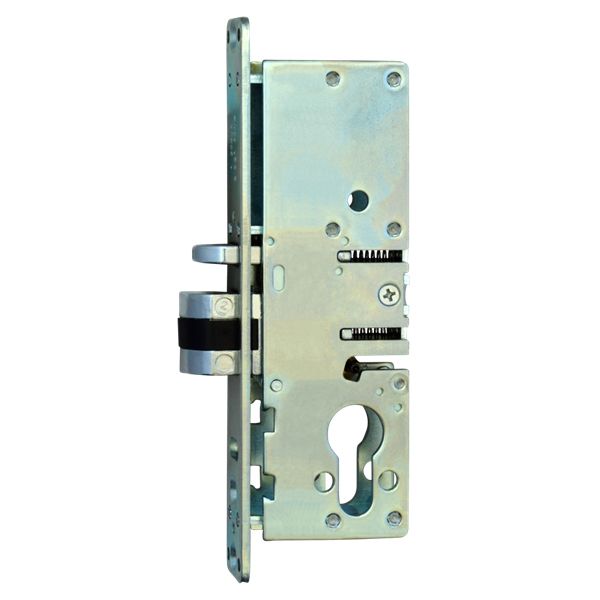

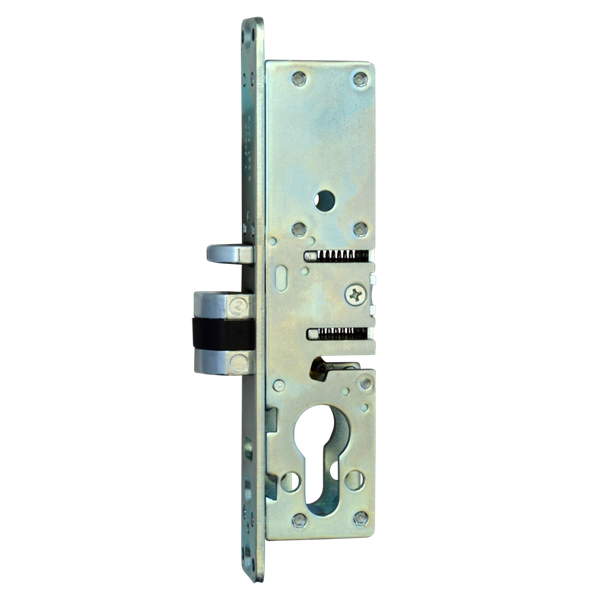

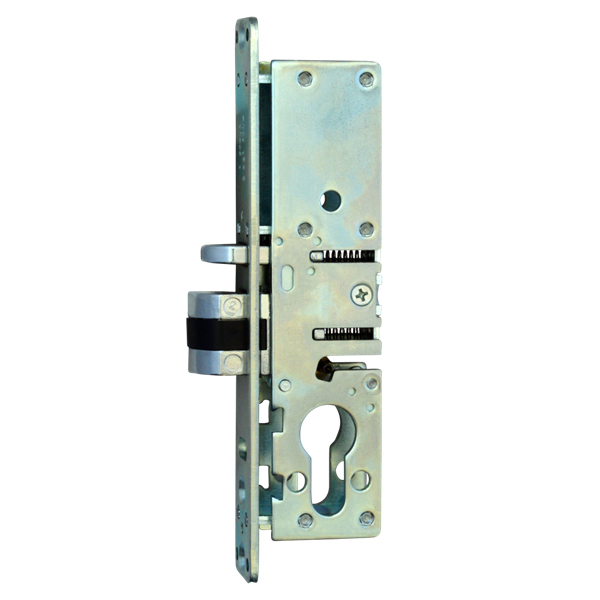

Adams Rite 4750 Euro Cylinder Deadlatch for Metal Doors
Adams Rite 4750 Euro Cylinder Deadlatch for Metal Doors Adams Rite 4750 Euro Cylinder Deadlatch for Metal Doors
Deadlocking nightlatch case with backset sizes of 24mm, 28mm and 37mm, used to lock and secure metal doors often found in shops and commercial units. The adams rite 4750 can be used in conjunction with electric strikes to provide access control solutions. Dead latch bolt is operated by Euor cylinder with key on each side or thumbturn inside for easy exit.
Mechanism: Euro Cylinder
Case size: 41 and 45mm
Case finish: Plated Steel
Forend finish: Aluminium
Handing: Reversible
Features
Adams Rite 4750 Euro Cylinder Deadlatch for Metal Doors operated from either side with a Euro Profile Cylinder, latch is automatically locked when door is closed.
Operation
Reversible latchbolt is withdrawn from either side by key or turn using a standard Euro profile double cylinder or thumbturn. To operate hold back facility, push in bolt and secure by reverse turn of key.
Size
Case Depth (A)
|
Backset (B)
|
Case Height (C)
|
Forend Length (D)
|
Forend Width (E)
|
|
24mm |
40.6
|
24
|
148
|
174.7
|
25
|
28mm |
44.7
|
28
|
148
|
174.7
|
25
|
37mm |
54.4
|
37
|
148
|
174.7
|
25
|
