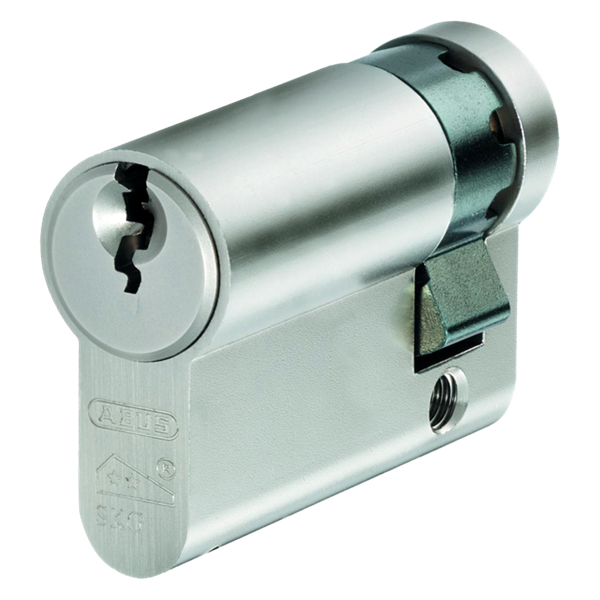

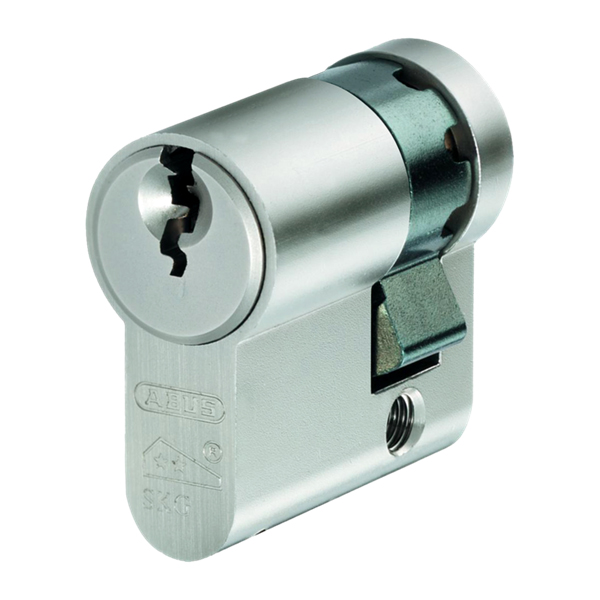

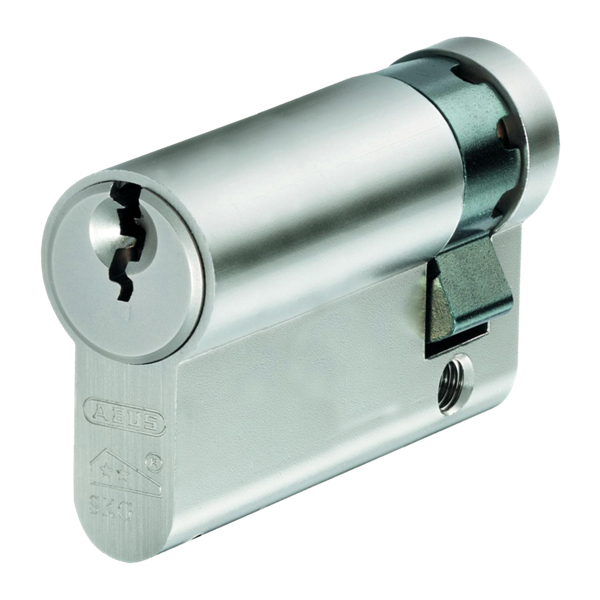

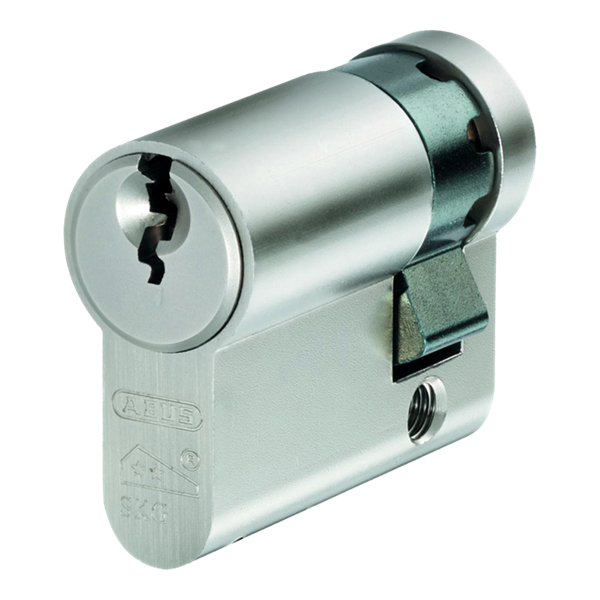

ABUS E60 Series Euro Single 6 Pin Cylinder
ABUS E60 Series Euro Single 6 Pin Cylinder 40mm 30/10 Nickel Plated
ABUS E60 Series Euro Single 6 Pin Cylinder with Anti Pick protection supplied with 3 keys
This Euro shaped single cylinder manufactured by ABUS has a 6 pin mechanism with 8 anti drill pins in the keyway. Operated by one of the 3 supplied keys and can be fitted to doors with security Escutcheons. Ideal for garage doors available in 5 different sizes and come supplied in a Nickel plated finish.
Mechanism: 6 Pin
Overall Length: 40,45,50,55 and 60mm
Keys Supplied: 3
Keyed Alike: Yes email for details
Features
Precision, mushroom pin & paracentric key way : Comprehensive anti-pick protection. Hardened steel anti-drill spring & pin protection : 8 anti-drill pins in every key way. Most popular sizes available : Suitable for wooden, aluminium & most uPVC doors. Half Cylinder with 12 cam positions : Suitable for switch gear & garage doors. Long key neck : Fits doors with security escutcheons
Operation
Cylinder is locked or unlocked by key from outside only
Size
|
Overall Length (A)
|
Size to Centre of Cam (B)
|
Diameter of Cylinder (C)
|
Height of Cylinder (D)
|
Width of Cylinder (E)
|
|
| 40mm |
40
|
40/10
|
17
|
33
|
10
|
| 45mm |
45
|
35/10
|
17
|
33
|
10
|
| 50mm |
50
|
40/10
|
17
|
33
|
10
|
| 55mm |
55
|
45/10
|
17
|
33
|
10
|
| 60mm |
60
|
50/10
|
17
|
33
|
10
|
